$612.30

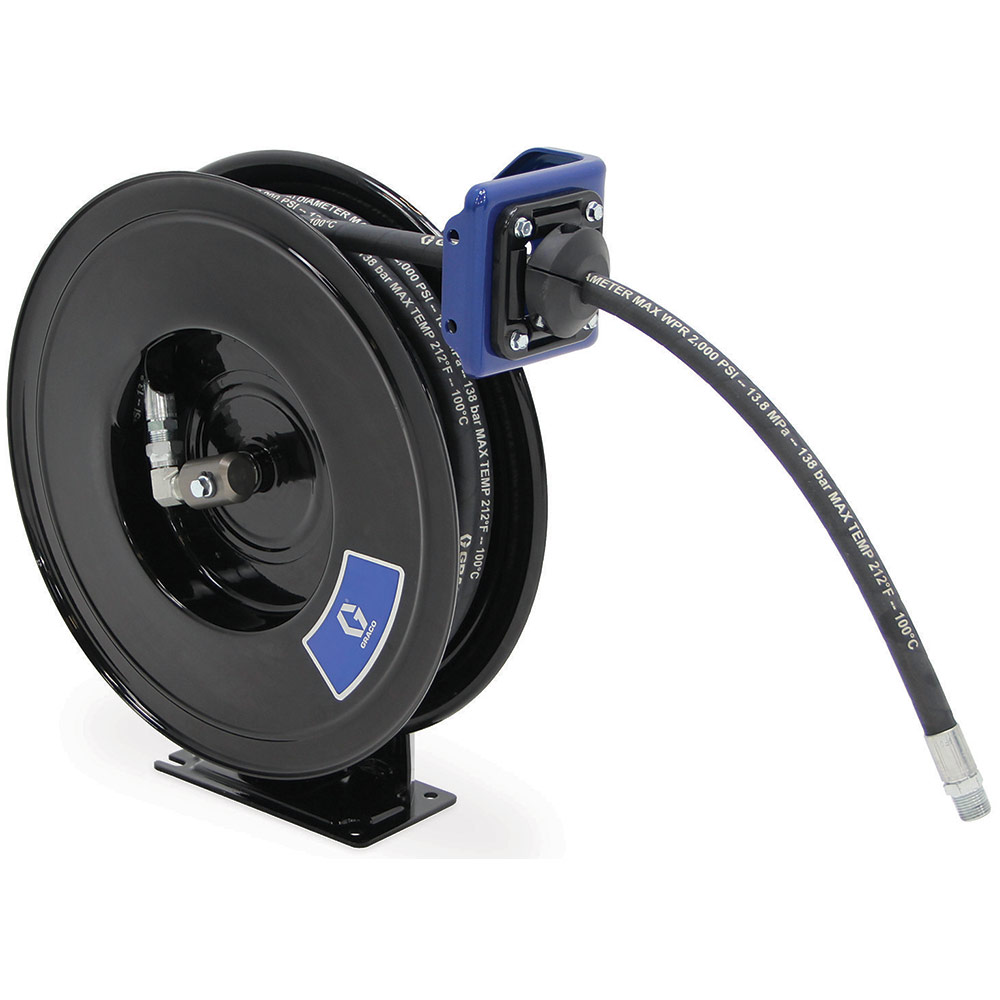

The Graco SDX 10 Hose Reel (SDL23D) offers compact durability for air, water, antifreeze, and WWS in overhead mount applications. Built for long-lasting use with a corrosion-resistant finish.
| Weight | 44 lbs |
|---|---|
| Dimensions | 22.5 × 9 × 23 in |
| Product Condition | |
| Product Availability |
The Graco SDX 10 Hose Reel (SDL23D) is built for technicians who need compact performance in tough shop environments. Its durable metal spool, single pedestal frame, and baked-on enamel finish resist corrosion and wear. Whether you’re in a dealership or mobile utility truck, this reel offers reliable service day in and day out.
Moreover, the full-flow swivel allows for minimal pressure drop and faster fluid transfer. The reel includes a 3/8 in x 35 ft hose and features an adjustable arm for flexible mounting. With a stainless-steel swivel shaft and low-friction cartridge swivel, it supports multiple fluids like air, water, antifreeze, and windshield washer solvent. It’s a smart choice for those needing high performance in a small footprint.
Features & Specifications
- Compact SDX reel with 3/8 in x 35 ft hose included
- Supports air, water, antifreeze, and windshield washer solvent
- Full-flow swivel ensures faster fills with minimal pressure drop
- Low-friction cartridge swivel allows easy maintenance
- Adjustable arm suits various mounting configurations
- Single pedestal frame with baked-on enamel finish for corrosion resistance
- Maximum working pressure: 300 psi
- Temperature range: -20°F to 190°F (-28°C to 87°C)
- Inlet: 1/2 in NPT (male); Outlet: 3/8 in NPT (male)
- Overall Dimensions: 17.1 in L x 7 in W x 19.5 in H
- Shipping Weight: 44 lbs (19.96 kg)
- UPC: 769946206630
- Country of Origin: United States
- HTS Code (US): 8479899560
- Manufacturer Part Number: SDL23D
