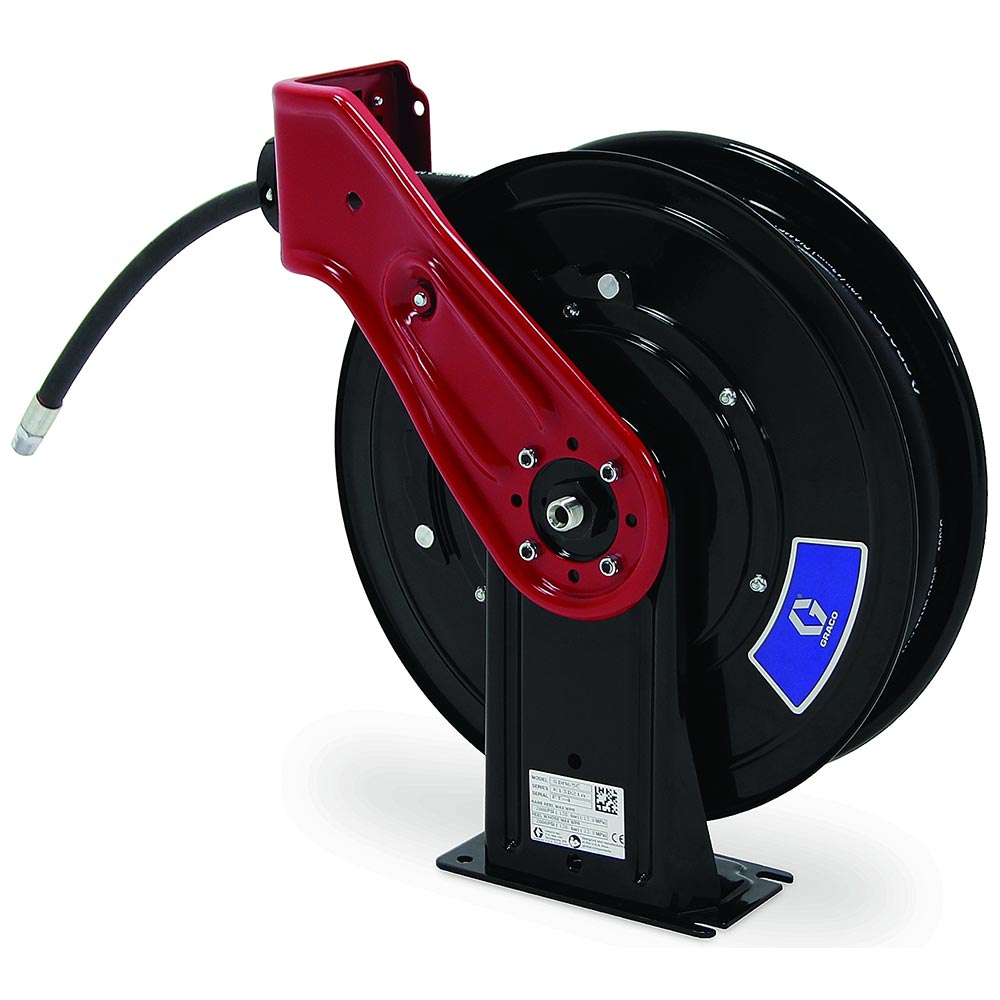

Graco SDX™ 20 Hose Reel – SDL56C | 3/8 in x 65 ft, Red

Choose the Graco SDX 20 reel for unmatched performance in auto shops and fleet maintenance bays. This compact reel is crafted with a durable metal spool and a rigid pedestal frame. It’s ideal for overhead mounting in tight spaces. With a 65-foot hose, it delivers high-flow fluid transfer with minimal pressure drop. Technicians love its corrosion-resistant red enamel finish that stands up to wear.

You’ll also appreciate its smart features that make your job easier. The low-friction cartridge swivel simplifies reel movement and repair. A full-flow swivel ensures smooth material delivery and quicker service. The adjustable arm adapts to your setup. Built for transporting air, water, antifreeze, and windshield wash solution, the Graco SDX 20 reel is the go-to solution for reliable fluid control.

Features & Specifications

• 1/2 in (13 mm) NPT inlet for strong, secure connection
• 3/8 in x 65 ft (10 mm x 20 m) hose included
• Overhead mount design for tight space installation
• Red baked enamel finish resists corrosion
• Low-friction cartridge swivel simplifies repairs
• Full-flow swivel ensures faster material delivery
• Adjustable arm fits multiple configurations
• Durable metal spool and rigid single pedestal frame
• Max working pressure: 300 psi (20.7 bar)
• Temperature range: -20°F to 190°F (-28°C to 87°C)
• Recommended for air, water, antifreeze, and WWS
• Overall dimensions: 21.8 in H x 19.2 in L x 7 in W
• Shipping weight: 54.8 lbs (24.86 kg)
• Manufacturer Part Number: SDL56C
