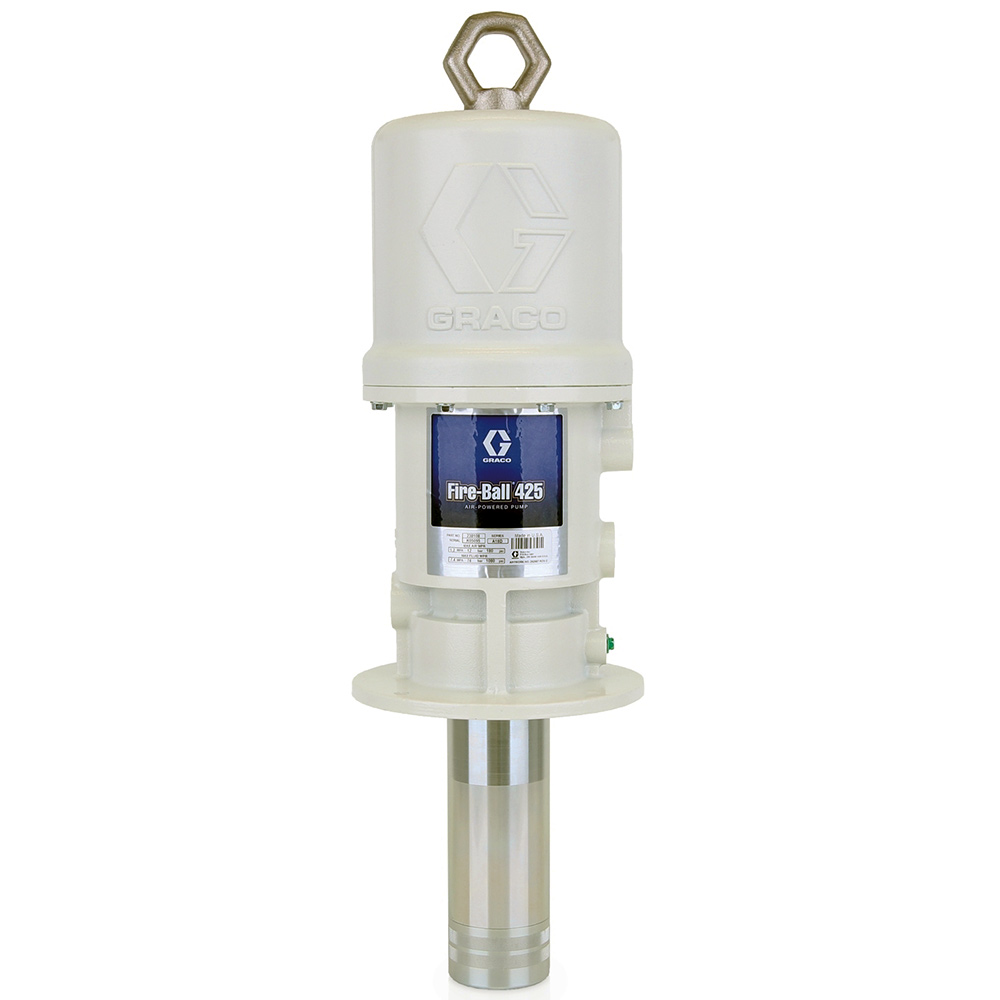

Graco 238108 Fire-Ball 425 6:1 Pneumatic Oil Pump – High Volume, Durable, Industrial
$5,150.00
The Graco 238108 Fire-Ball 425 Pump is a high-performance 6:1 oil pump designed for industrial, high-volume use. Built for reliability, it’s perfect for long pipe runs and multi-dispense systems in service and plant environments.
| Weight | 40 lbs |
|---|---|
| Dimensions | 34.8 × 9.6 × 10.8 in |
| Product Condition |
Graco 238108 Fire-Ball 425 6:1 Oil Pump is built to handle high-volume dispensing in the toughest industrial environments. Featuring a powerful 4.25-inch (107.9 mm) air motor, this pneumatic pump is ideal for long pipe runs and simultaneous multiple dispensing points in fleet service shops and in-plant operations.
Engineered for durability, the Fire-Ball 425 features a thick cast aluminum air motor housing for long service life and low maintenance. With fewer moving parts in the air motor assembly, repair costs are reduced, and downtime is minimized. Furthermore, its in-line design aligns the air and fluid piston rods to extend seal life and increase pump reliability.
Designed for industrial use, this pump efficiently handles petroleum and synthetic-based oils used in engines, gears, and transmissions. The corrosion-resistant construction uses stainless steel, aluminum, nickel plating, and liquid salt nitriding for superior longevity. In addition, the large air porting design ensures smooth, continuous operation with reduced icing even in dirty air environments.
Whether you’re running a busy service bay or a large-scale plant, the Graco Fire-Ball 425 delivers unmatched performance and exceptional value in fluid transfer.
Features:
- 6:1 ratio pneumatic piston pump
- Large 4.25 in. air motor supports high-volume fluid delivery
- Thick cast aluminum housing for enhanced durability
- In-line design increases seal life
- Non-metallic poppet valves for superior sealing in dirty air
- Corrosion-resistant construction using stainless steel and plated components
- Reduced icing through optimized air porting
- Designed for petroleum and synthetic oils
- MPN: 238108
Specifications:
- Air Inlet: 1/2″ NPT (Female)
- Fluid Inlet: 1-1/2″ NPT (Female)
- Fluid Outlet: 3/4″ NPT (Female)
- Max Air Inlet Pressure: 180 PSI (12.41 BAR)
- Max Working Pressure: 1100 PSI (76 BAR)
- Pump Ratio: 6:1
- Weight: 35 lb (15.9 kg)
- Cycles per Gallon: 12
- Max Cycle Rate: 66 CPM
- Wetted Materials: Steel, Polyurethane, Nitrile, Aluminum
