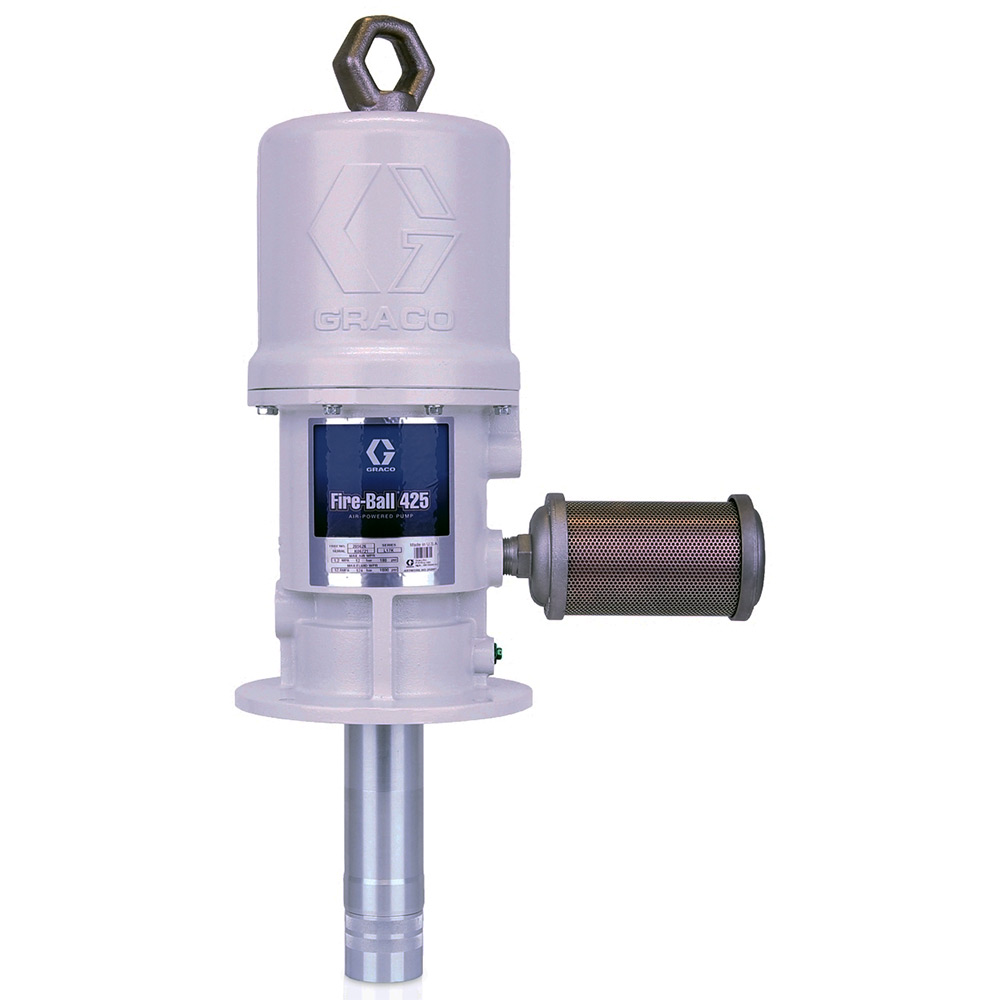

FIREBALL 425 PUMP,10:1,UNIVERSAL

Fire-Ball® 425 Series 10:1 Universal Size Oil Pump With a large 4.25 inch (107.9 mm) air motor to supply the power you need for long pipe runs and higher volume dispensing, the Fire-Ball 425 delivers field-proven durability for multiple fluid types and exceptional cost savings that are hard to beat!   The Fire-Ball 425 is the pump of choice for your most demanding high volume applications – an ideal choice for applications such as truck fleet service facilities and in-plant applications where multiple dispenses happen at the same time. Durable – Thick cast aluminum air motor housing offers unmatched durability. Fewer Repairs – Fewer moving parts in the air motor assembly means less downtime and low repair cost. Extended Seal Life – In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life. Reduce Downtime – Displacement rods have minimal wear due to a proprietary Graco manufacturing process. Superior Sealing – Non-metallic poppet valves offer positive sealing performance, even with contaminated “dirty” air environments for long life without repair. Reduced Icing – Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing. Corrosion-Resistant – Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life. Technical Specifications TYPE Pneumatic Piston Pump AIR INLET SIZE (IN) 0.5 AIR INLET SIZE (MM) 12.7 AIR INLET THREAD GENDER Female AIR INLET THREAD TYPE NPT AIR MOTOR EFFECTIVE DIAMETER (IN) 4.25 APPLICATION Industrial COMPATIBLE MATERIAL Oil CYCLES PER GALLON 19.6 FLUID INLET SIZE (IN) 1-1/2 FLUID INLET SIZE (MM) 38.1 FLUID INLET THREAD GENDER Female FLUID INLET THREAD TYPE NPT FLUID OUTLET SIZE (IN) 3/4 FLUID OUTLET SIZE (MM) 19.05 FLUID OUTLET THREAD GENDER Female FLUID OUTLET THREAD TYPE NPT FOR USE WITH 非合成油和合成油（用于马达、齿轮和 ATF）, 石油および合成油 (モーター、ギア、 ATF), Petroleum- and synthetic-based oils (motor, gear and ATF), Aceites minerales y sintéticos (motor, engranajes y ATF), 석유계 및 합성계 오일(모터, 기어 및 ATF) MAXIMUM AIR INLET PRESSURE (BAR) 12.41 MAXIMUM AIR INLET PRESSURE (KPA) 1241 MAXIMUM AIR INLET PRESSURE (PSI) 180 MAXIMUM CONTINUOUS CYCLE RATE (CPM) 66 MAXIMUM INTERMITTENT CYCLE RATE (CPM) 66 MAXIMUM WORKING PRESSURE (BAR) 124 MAXIMUM WORKING PRESSURE (KPA) 12400 MAXIMUM WORKING PRESSURE (PSI) 1800 MODEL Fire-Ball POWER TYPE Pneumatic PUMP RATIO 10:1 SEAL MATERIAL Polyurethane with Nitrile Spreader SERIES 425 SOUND POWER LEVEL (DB(A)) 78 SOUND PRESSURE LEVEL (DB(A)) 78 WEIGHT (LB) 28.7 WETTED MATERIAL Aluminum, Steel, Polyurethane, Nitrile WEIGHT (KG) 1.3030 MAXIMUM WORKING PRESSURE (MPA) 12.4
