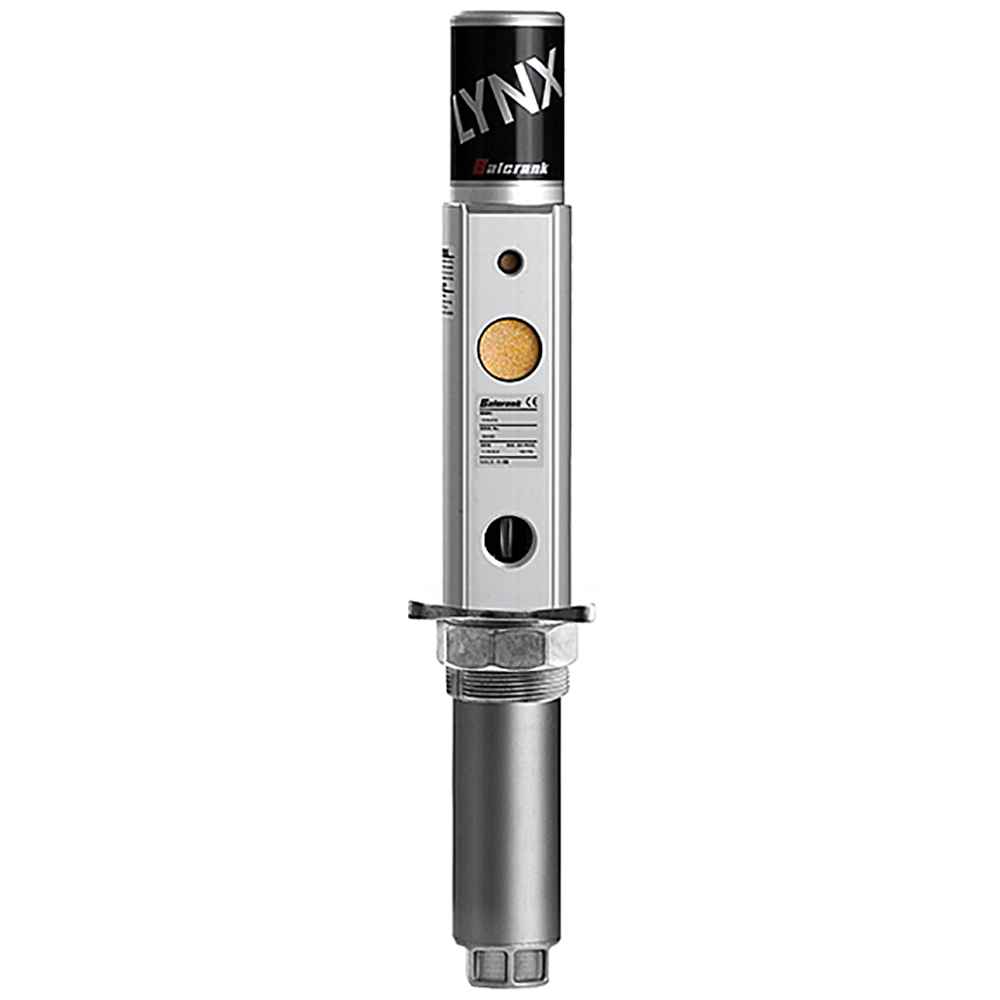

Balcrank Lynx 1:1 Stainless Steel Piston Pump – 1110-009

The Balcrank Lynx piston pump offers dependable fluid transfer for automotive and industrial shops. Designed for use with oils and ATF, this 1:1 ratio pump ensures smooth delivery with every stroke. It’s ideal for tire centers, quick lubes, and dealership service bays.

Thanks to its double-action design, the Lynx pump dispenses product on both the up and down stroke. This ensures continuous, even pressure and flow. Additionally, its patented air valve reduces air consumption and increases energy efficiency. Maintenance is also simple with fewer air valve components and a factory-lubricated air motor.

Moreover, the Balcrank Lynx piston pump is highly adaptable to different containers. Its height-adjustable 2” bung adapter and compatible inlet make setup easy across a variety of drum sizes. Built with corrosion-resistant materials and a built-in brass air filter, this pump is made for long-term performance in demanding environments.

Features & Specifications

• Double-acting design pumps fluid on both strokes
• Patented air valve for lower air consumption
• Fewer air valve components for easy maintenance
• Factory-lubricated motor eliminates need for external lubricator
• Sintered brass air filter ensures clean, quiet operation
• Corrosion-resistant anodized aluminum air piston
• Height-adjustable 2” bung adapter fits most drums and tanks
• Compatible with multiple tank and container sizes
• Pump ratio: 1:1
• Operating pressure: 45–150 PSI (3–10 bar)
• Flow rate at 150 PSI: 10.6 gal/min (40 l/min)
• Air inlet: 1/4″ NPT (F), Inlet: 1″ NPT (F), Outlet: 3/4″ NPT (F)
• Wetted materials: Steel, Brass, Aluminum, Buna-N™, Polyurethane
• Shipping Weight: approx. 12 lbs (5.4 kg)
• Shipping Dimensions: approx. 36″ L x 6″ W x 6″ H
• Manufacturer Part Number: 1110-009
