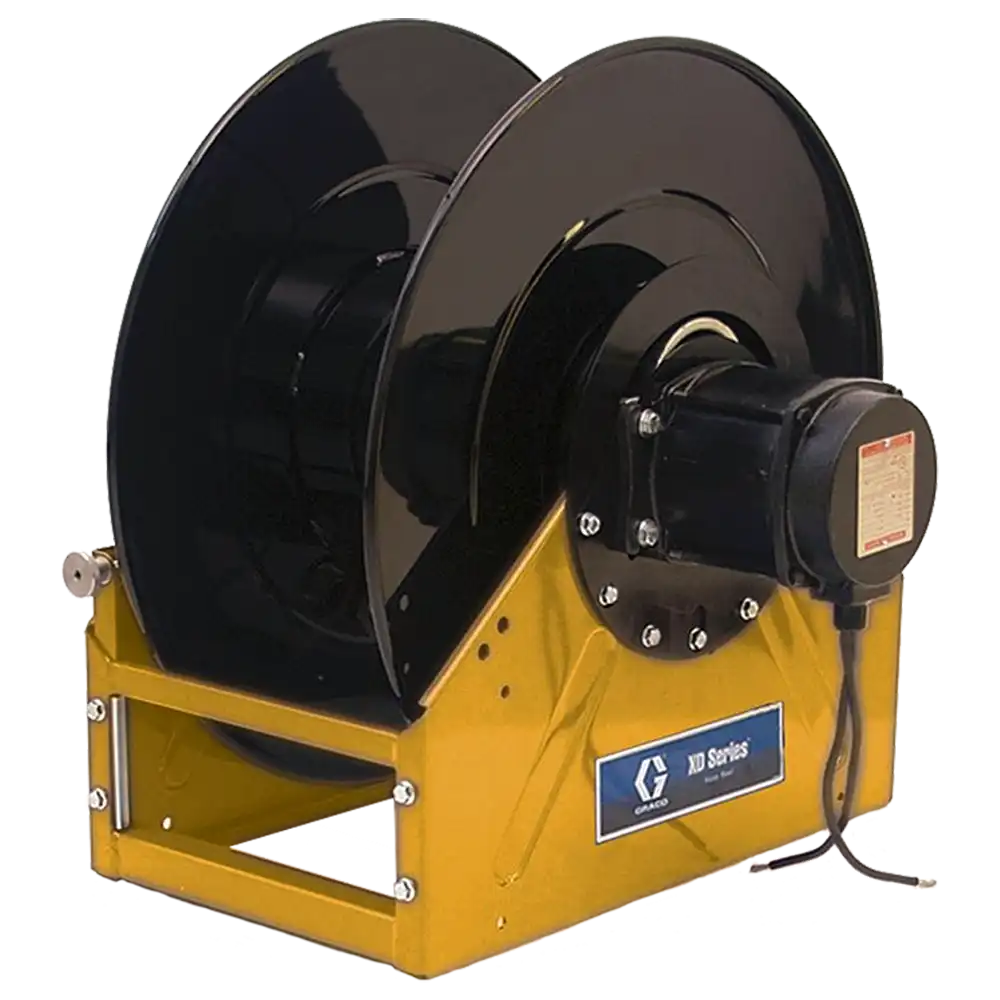

XD SERIES 70 REEL,7020,LP,HYD,NPT,YELLOW

The Graco XD70™ Diesel Fuel Hose Reel is engineered for technicians and businesses that demand safe, rugged, and long-lasting hose management. Built with a powerful hydraulic motor and direct-drive design, this reel ensures reliable performance while reducing maintenance risks. Unlike chain-driven reels, the sealed gear and motor system eliminates exposed grease points, keeping work areas safer and cleaner.

Because efficiency matters, the Graco XD70™ allows easy system integration with flexible inlet and motor orientation. Whether mounted for left-hand or right-hand flow, technicians save time during installation and operation. Its heavy-duty welded spool is designed to withstand the weight of large hoses while protecting internal components from wear, weather, and harsh work conditions. This ensures maximum uptime and lower lifetime ownership costs in demanding environments.

From mining maintenance and agriculture to public works garages and fleet service, this hose reel provides strength where it matters most. Its rugged one-piece box frame resists flexing under high stress, offering superior structural durability compared to bolted frames. With powder-coated components, it also delivers excellent corrosion protection for both indoor and outdoor operations. When you need a tough, dependable, and easy-to-maintain hose reel, the Graco XD70™ is the smart choice.

Features & Specifications

• Hydraulic direct-drive motor for reliable, low-maintenance operation
• 2 in. NPT inlet/outlet for diesel fuel transfer
• Capacity: 2 in. x 33 ft. (51 mm x 10 m)
• Heavy-duty welded spool and one-piece box frame
• Corrosion-resistant powder-coated finish
• Operating temperature: -40°F to 140°F (-40°C to 60°C)
• Maximum working pressure: 600 psi (41 bar)
• Dry weight: 106 lbs (48 kg)
• Shipping weight: 138 lbs (62.6 kg)
• Approx. shipping dimensions: 38.4 in. H x 27.6 in. L x 36 in. W
• Manufacturer’s Part Number: 24T021
