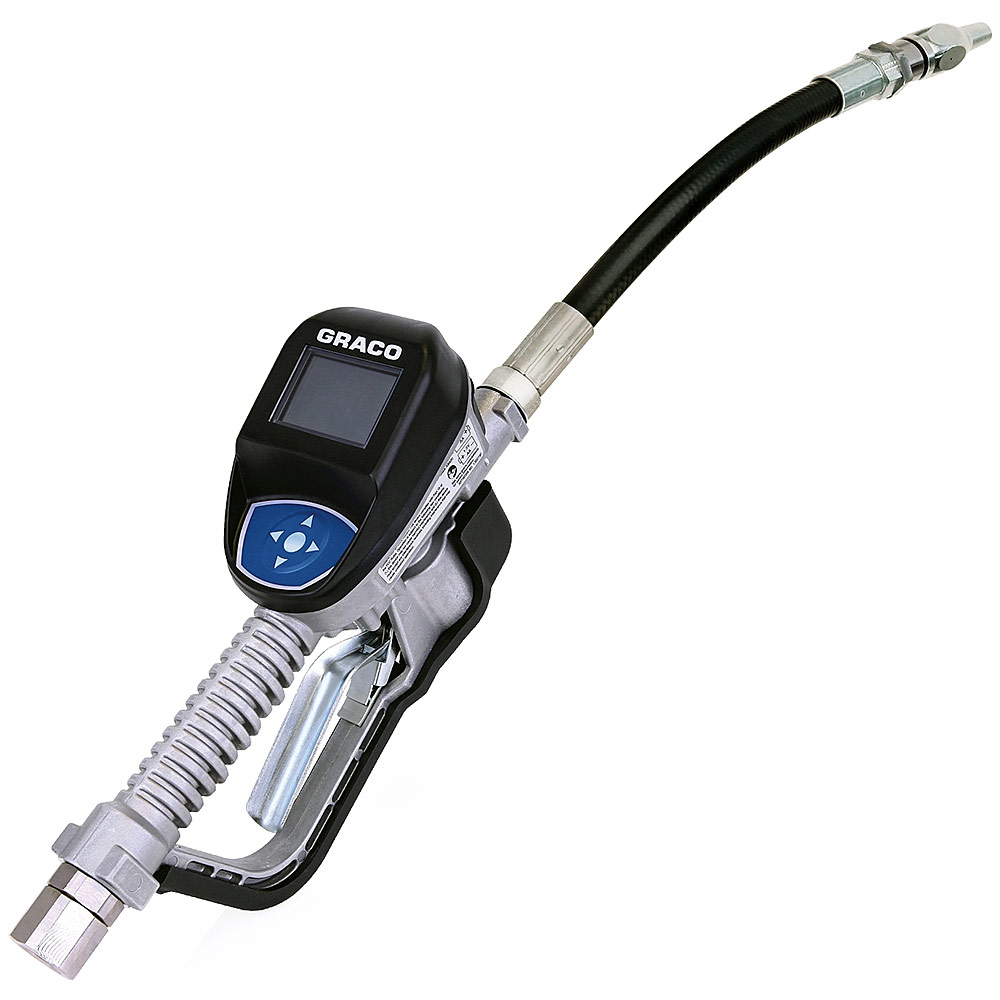

Pulse® Metered Dispense Valve for Oil Applications – 3/4 in NPT, Flex Extension, High Flow Nozzle Graco dispense meters designed for our Pulse® fluid management system are durable and easy to use. Everything you need is at your fingertips. Enter PINs and other data using the intuitive display. Track and record inventory levels with electronic metering Increase technician productivity Flexible—one meter can handle all fluids Reliable—time-tested Graco engineering Large, Intuitive Display—high-contrast display for low and bright light conditions Protective trigger guard—prevents accidental dispenses Four finger trigger with lock-on feature No need to leave bay or use computer to complete dispense Long battery life—uses 4 AA easy-to-replace batteries Technical Specifications DISPLAY TYPE LCD EXTENSION TYPE Flexible FLUID INLET THREAD GENDER Female INCLUDES Extension, Extensión, Nozzle, boquilla, Batteries, baterías, Swivel Boot, funda giratoria INLET SIZE (CM) 1.905 INLET SIZE (IN) 3/4 INLET SIZE (MM) 19.05 INLET THREAD TYPE NPT MAXIMUM FLOW RATE (GPM) 18 MAXIMUM OPERATING TEMPERATURE (°C) 70 MAXIMUM OPERATING TEMPERATURE (°F) 158 MAXIMUM STORAGE TEMPERATURE (°F) 158 MAXIMUM STORAGE TEMPERATURE (°C) 70 MAXIMUM WORKING PRESSURE (PSI) 1500 MAXIMUM WORKING PRESSURE (KPA) 10340 MAXIMUM WORKING PRESSURE (BAR) 103.4 METER ACCURACY (%) ±0.5 OVERALL LENGTH (CM) 33 OVERALL LENGTH (FT) 1 OVERALL LENGTH (IN) 13 OVERALL LENGTH (MM) 330 OVERALL WIDTH (CM) 9.5 OVERALL WIDTH (IN) 3.75 OVERALL WIDTH (MM) 95 METER TECHNOLOGY Oval Gear, Engranaje oval METERING GUN WEIGHT (LB) 5.3 METERING GUN WEIGHT (KG) 2.4 MINIMUM FLOW RATE (GPM) 0.25 MINIMUM FLOW RATE (L/MIN) 0.9 WETTED MATERIAL Aluminum, Stainless Steel, PBT, Nitrile Rubber, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel WARRANTY Five Years Structural, Cinco años de estructura, 3 Years Electronics, 3 años de electrónica, 1 Year Wear Components, 1 año de componentes de desgaste UNIT OF MEASURE Pint, Quart, Gallon, Liter TRIGGER LOCK Locking NOZZLE TYPE High Flow MINIMUM OPERATING TEMPERATURE (°F) 4 MINIMUM OPERATING TEMPERATURE (°C) -16 TYPE Electronic Metered Dispense Valve MAXIMUM WORKING PRESSURE (MPA) 10.3 OVERALL LENGTH (M) 0.33 PRODUCT TYPE Meter MODEL Pulse
