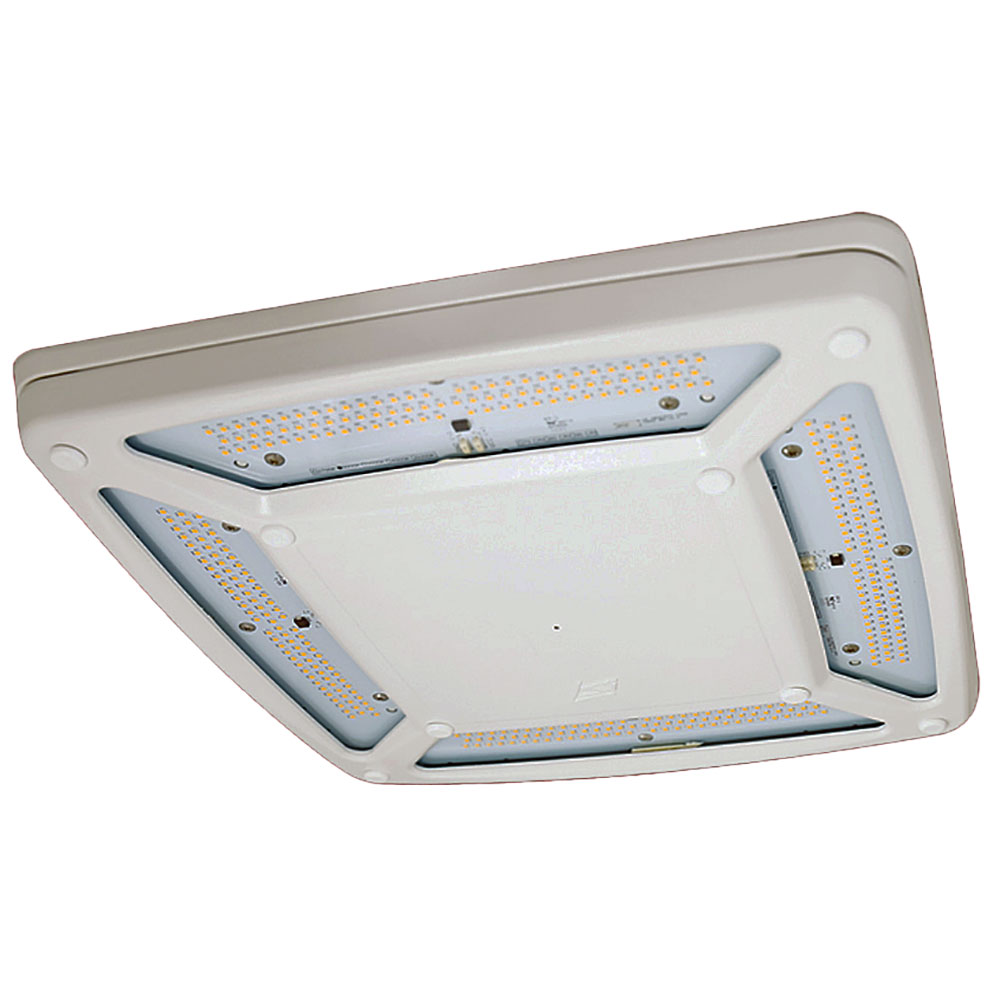

LSI Vertex LED Canopy Light – 15K Lumens – 673399R5

The LSI Vertex SCV 15,000 Lumen Canopy Light, Part Number 673399R5, is engineered to deliver superior performance for fuel canopy applications. Its rugged, low-profile die-cast aluminum housing ensures long-term reliability, while IP66 protection safeguards against dust and water. With below canopy access, technicians can easily service the optical chamber and driver compartment, reducing downtime and maintenance costs.

This canopy light uses both symmetrical and forward throw optical distributions to illuminate critical areas. A clear tempered flat glass and optical-grade PMMA acrylic lens ensure bright, uniform coverage. Unlike traditional fixtures, the forward throw distribution eliminates dark spots between the canopy and convenience store, reducing the need for additional floodlights. The durable DuraGrip® polyester powder coat finish resists peeling and cracking even in extreme weather, making it a trusted solution for long-term use.

Designed for hazardous locations, the LSI Vertex SCV 15,000 Lumen Canopy Light is suitable for Class 1 Division 2 fuel applications when installed correctly. It operates reliably in temperatures ranging from -40°F to +122°F and supports LSI’s AirLink Blue wireless controls, providing energy savings and smart lighting management. With simple installation in standard 12” or 16” deck pans, this light is ideal for businesses demanding efficiency, safety, and long-lasting performance.

Features & Specifications

• 15,000 lumen output for bright, uniform canopy lighting
• Rugged die-cast aluminum housing with IP66 rating
• Symmetrical and forward throw optical distribution
• Clear tempered glass and PMMA acrylic lens
• Hazardous location rated for Class 1 Division 2 applications
• Wide operating temperature: -40°F to +122°F
• DuraGrip® polyester powder coat for weather resistance
• Supports AirLink Blue wireless control system

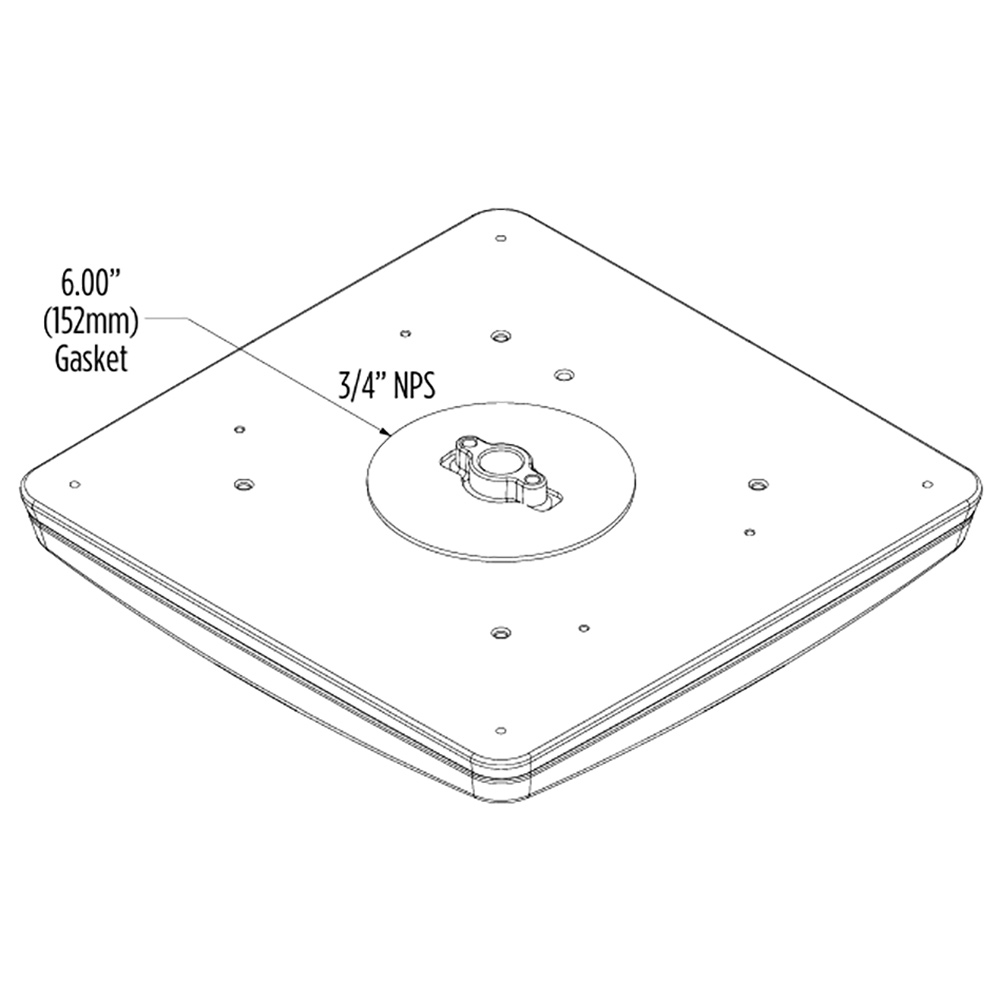

• Easy installation in 12” or 16” canopy deck pans
• Manufacturer’s Part Number: 673399R5
