LSI Scottsdale CRUSX LED Canopy Light
Price range: $308.75 through $477.50
The LSI Scottsdale CRUSX LED Canopy Light provides 5,000–22,000 lumens for petroleum stations and convenience stores. Choose the lumen output, distribution, lens, controls, and mounting options for your application.
| Weight | 14 lbs |
|---|---|
| Dimensions | 17 × 17 × 7 in |
| Product Availability | Ships directly from the manufacturer |
| Product Condition | New |

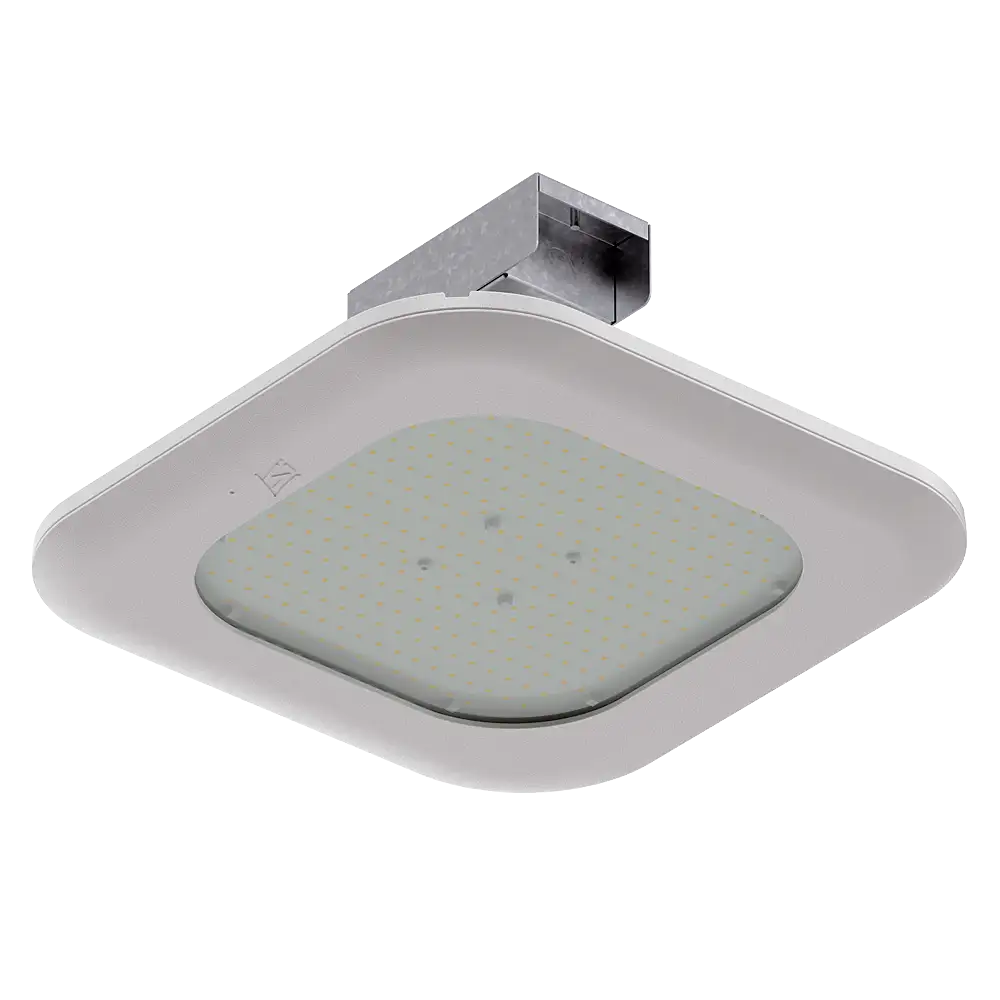

The CRUSX LED canopy light combines high-output LED performance with a slim 15/16-inch die-cast housing. Its flat tempered glass lens provides a clean, durable appearance beneath petroleum and convenience store canopies.
Additionally, the sealed housing carries an IP66 rating for water-resistant operation. An integrated heat sink helps manage heat without trapping dirt or grime. Meanwhile, the DuraGrip® powder coat finish resists cracking and peeling through changing weather conditions.
The CRUSX offers six lumen packages from 5,000 through 22,000 lumens. Therefore, you can select output based on your project’s lighting requirements. Available CCT choices include 3000K, 4000K, and 5000K with 80 CRI.

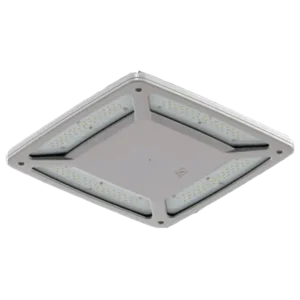

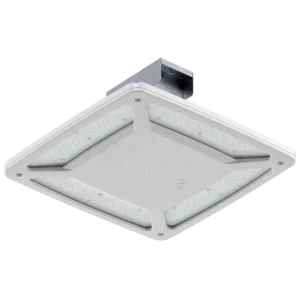

The CRUSX and SCVX both provide slim LED canopy lighting for petroleum and convenience store applications. The CRUSX offers configurations from 5,000 to 22,000 lumens, while the SCVX provides configurations from 10,000 to 23,000 lumens. If you need higher output, consider the LSI Scottsdale SCVX LED Canopy Light for applications requiring up to 23,000 lumens.
Features & Specifications:
- 15/16-inch ultra-slim die-cast housing with clear or diffused tempered glass lens
- 5,000–22,000 lumen packages with Symmetric or 22,000-lumen Forward Throw distribution
- 3000K, 4000K, or 5000K CCT with 80 CRI nominal
- 120–277V AC, 50/60Hz universal voltage with integrated driver
- 39–157W power range with 127–159 lumens per watt efficacy
- IP66 sealed, water-resistant construction with integrated heat sink and pressure vent
- One-person installation for 12-inch or 16-inch deck pans with 4-inch penetration

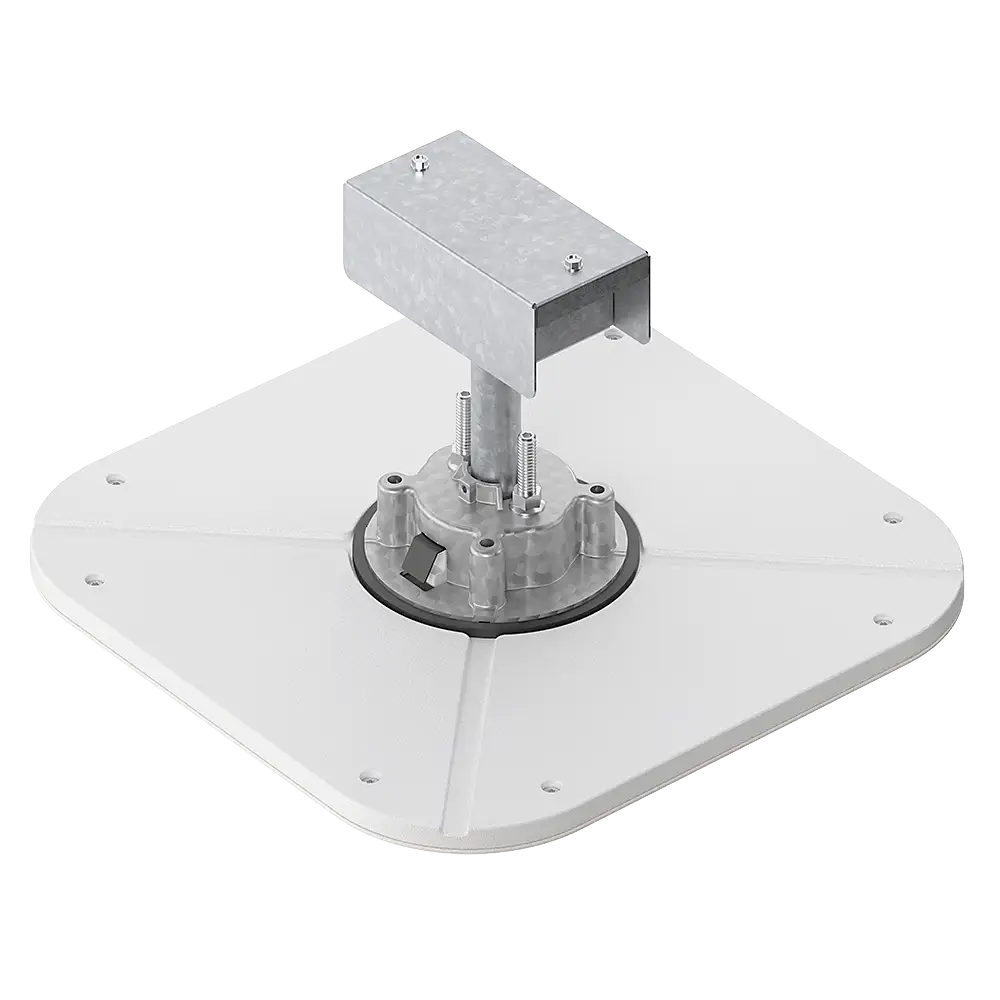

- Optional REDiMount™ quick-mount system with integrated junction box
- Optional AirLink Blue wireless controls and ALBMR1 motion and photocell sensor
- White DuraGrip® finish; bronze and black finishes also available
- UL and ETL listed; suitable for wet locations; DLC Premium qualified on applicable versions
- Buy American Act compliant and DarkSky approved with 3000K or lower CCT and Symmetric distribution
- 5-year limited warranty; approximate fixture weight is 23 lb
- Manufacturer Part Number: CRUSX — configuration-specific ordering code
