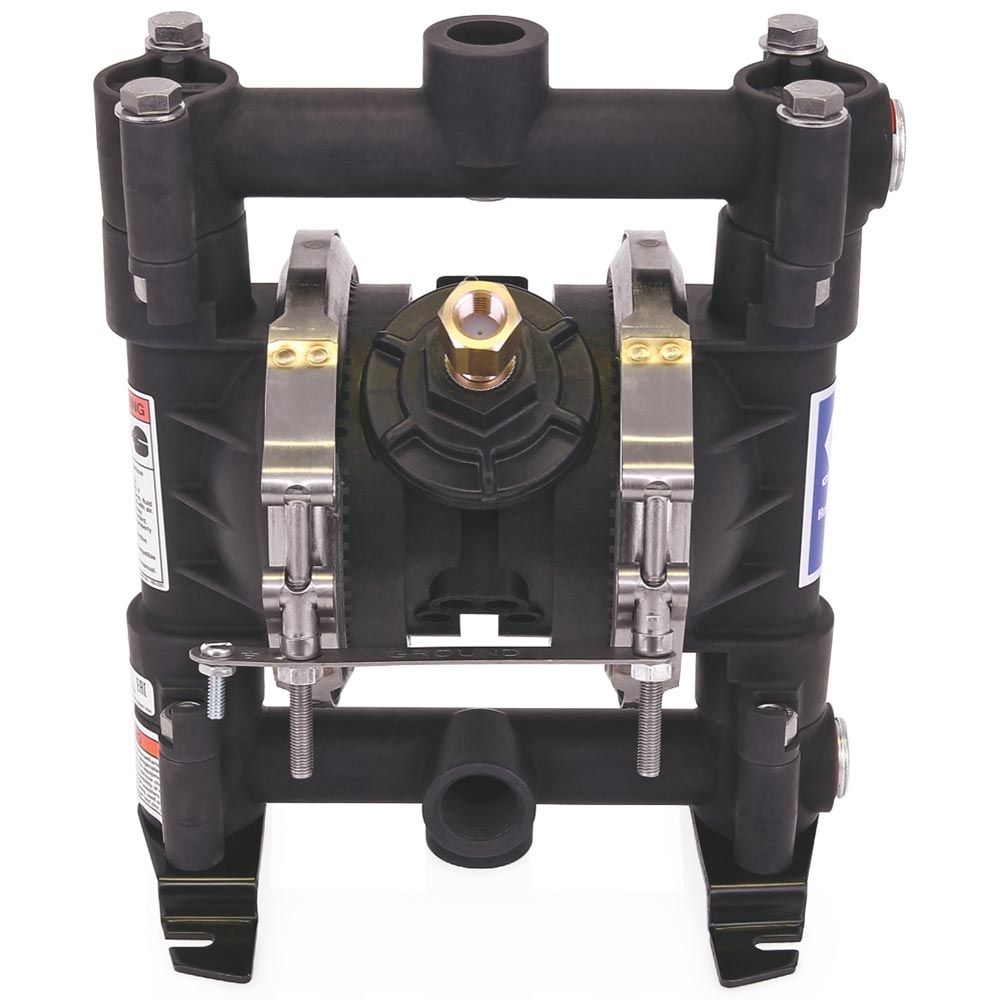

HUSKY PUMP,716A-PP02AA1ACBNBNPT

The Husky 716 air operated diaphragm pump delivers up to 16 gpm (60.6 lpm) of fluid and features center and end porting options.   Ideal for bulk antifreeze and windshield solvent transfer. Center- and end-porting No mechanical seals which causes fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks 3/4 in (19.05 mm) center- and end-porting No seals to leak or fail Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks TYPE Pneumatic Diaphragm Pump AIR EXHAUST PORT SIZE (IN) 3/8 AIR EXHAUST PORT THREAD GENDER Female AIR EXHAUST PORT THREAD TYPE NPT AIR INLET SIZE (IN) 1/4 AIR INLET THREAD GENDER Female AIR INLET THREAD TYPE NPT APPLICATION Industrial BALL MATERIAL Buna-N COMPATIBLE MATERIAL Oil, Water, Antifreeze, Windshield Washer Fluid DIAPHRAGM MATERIAL Buna-N FLUID INLET SIZE (CM) 1.905 FLUID INLET SIZE (IN) 3/4 FLUID INLET SIZE (MM) 19.05 FLUID INLET THREAD GENDER Female FLUID INLET THREAD TYPE NPT FLUID OUTLET SIZE (CM) 1.905 FLUID OUTLET SIZE (IN) 3/4 FLUID OUTLET SIZE (MM) 19.05 FLUID OUTLET THREAD GENDER Female FLUID OUTLET THREAD TYPE NPT FLUID SECTION MATERIAL Aluminum FOR USE WITH Oil, Water, Anti-freeze, Washer Fluid, Used Oil MANIFOLD O-RING MATERIAL PTFE MATERIAL Aluminum MAXIMUM AIR CONSUMPTION (SCFM) 28 MAXIMUM AIR PRESSURE (BAR) 7 MAXIMUM AIR PRESSURE (KPA) 700 MAXIMUM AIR PRESSURE (PSI) 100 MAXIMUM CYCLE RATE (CPM) 400 MAXIMUM FLOW RATE (GPM) 16 MAXIMUM FLOW RATE (L/MIN) 60.6 MAXIMUM FLUID PRESSURE (BAR) 7 MAXIMUM FLUID PRESSURE (KPA) 700 MAXIMUM FLUID PRESSURE (PSI) 100 MAXIMUM OPERATING TEMPERATURE (°C) 82 MAXIMUM OPERATING TEMPERATURE (°F) 180 MAXIMUM SOLID SIZE (CM) 0.2383 MAXIMUM SOLID SIZE (IN) 0.09375 MAXIMUM SOLID SIZE (MM) 2.4 MODEL Husky OVERALL HEIGHT (IN) 10.43 POWER SOURCE Air SERIES 716 STANDARDS MET CE WEIGHT (LB) 8.5 WETTED MATERIAL Aluminum, Buna-N, PTFE MAXIMUM FLUID PRESSURE (MPA) 0.7 MAXIMUM AIR PRESSURE (MPA) 0.7 CONNECTION TYPE Threaded
