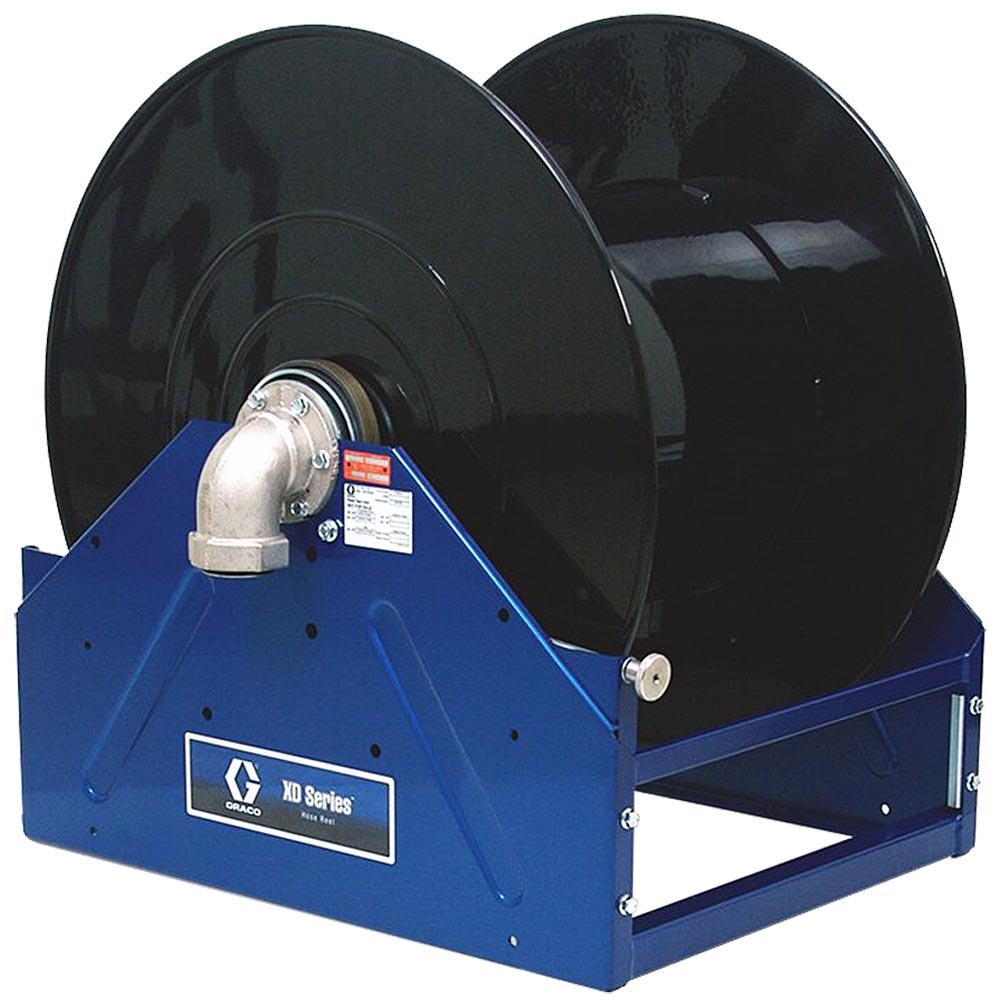

Graco XD80 Diesel Fuel Motorless Bare Reel – 24T133

The Graco XD80 Diesel Fuel Motorless Bare Reel – Part Number 24T133 is a professional-grade solution for heavy-duty diesel fuel dispensing. Designed to handle up to 50 feet of 2-inch hose, it is perfect for fleet operations, mining maintenance, public works, agriculture, and service trucks. This motorless version provides the flexibility to integrate your own drive system or operate manually, depending on your needs. The XD80 series’ proven design ensures safe, efficient, and long-lasting performance in harsh conditions. Its heavy-duty welded spool is engineered to support the full weight of large hoses while protecting key components. This design extends service life and minimizes downtime. The frame is a single-piece welded construction, offering greater rigidity than bolted designs that can loosen over time.

For superior corrosion protection, every component is individually painted and powder-coated before assembly. This process creates a durable finish that withstands extreme indoor and outdoor conditions. The reel features 2-inch NPT female inlet and outlet connections, supporting maximum pressure of 600 PSI (41 bar) and an operating temperature range from -40°F to 140°F (-40°C to 60°C). With its compact, box-frame design, it fits neatly into installations requiring robust hose management without a built-in drive motor. Made in the USA, the Graco XD80 Diesel Fuel Motorless Bare Reel is built for technicians and businesses that demand reliability and strength in every piece of their fuel handling equipment.

Features & Specifications

• 2 in. (51 mm) inlet and outlet size
• Capacity: 2 in. x 50 ft. (51 mm x 15 m) hose
• Motorless bare reel – integrate your own drive system
• Designed for diesel fuel dispensing
• Maximum working pressure: 600 PSI (41 bar)
• Operating temperature range: -40°F to 140°F (-40°C to 60°C)
• Rugged, one-piece welded frame
• Heavy-duty welded spool protects key components
• Individually painted and powder-coated components
• UPC: 633955469808
• Manufacturer Part Number: 24T133
