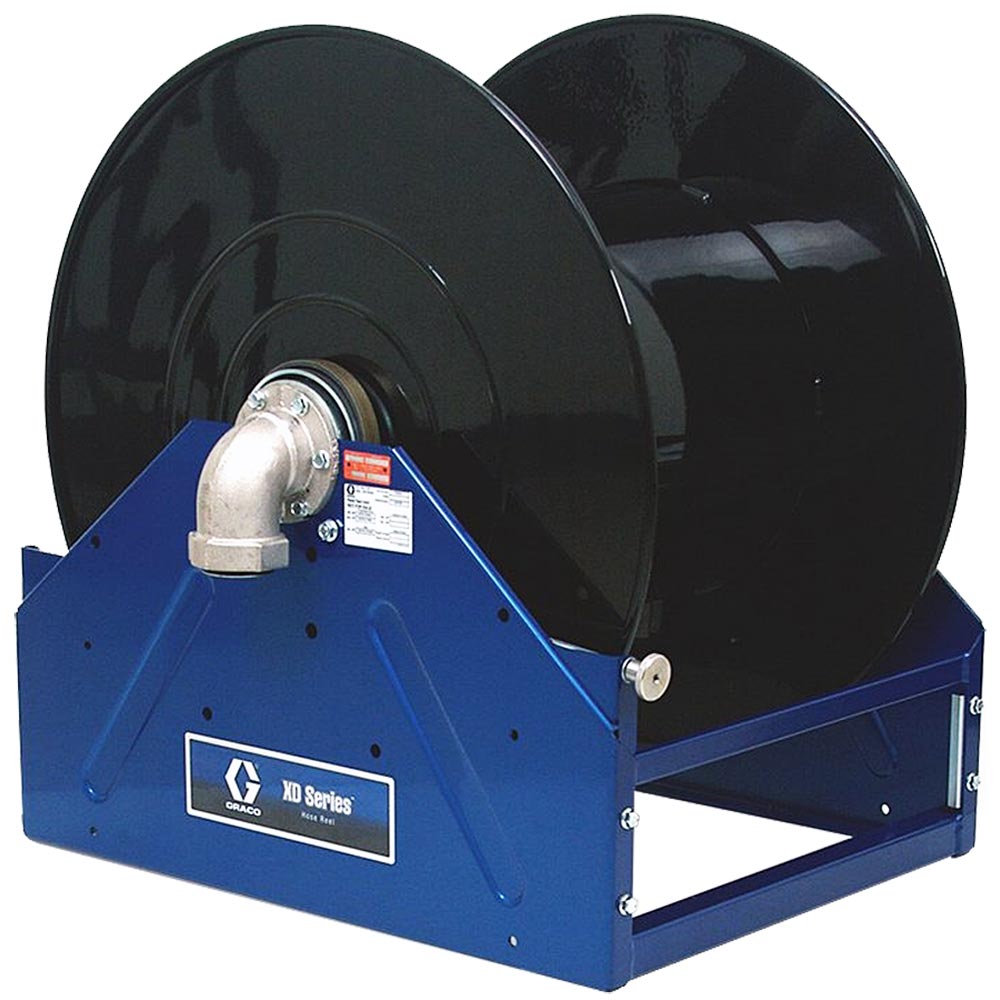

Graco XD80 Diesel Fuel Pneumatic Bare Reel

The Graco XD80 Diesel Fuel Pneumatic Bare Reel – Part Number 24R578 is engineered for maximum durability and efficiency. Purpose-built for diesel fuel dispensing, this reel works reliably in demanding environments such as fleet maintenance, mining, agriculture, and public works. The XD80 series features a safe, direct-drive pneumatic motor designed for clean, maintenance-free operation. You won’t deal with messy, exposed chains that require upkeep and create operator hazards. With a 2-inch inlet and outlet, the reel accommodates up to 50 feet (15 meters) of 2-inch hose.

Integration into your system is simple. The unit allows quick adjustment of inlet and motor direction for right or left-hand flow orientation. This flexibility helps you optimize your workspace layout. The heavy-duty welded spool easily supports the weight of large hoses. It shields the drive unit from environmental exposure, promoting longer service life. Meanwhile, the rugged single-piece welded box frame provides unmatched strength under extreme conditions. Unlike bolted frames, it won’t loosen over time.

For corrosion resistance, each component is individually painted and powder-coated before assembly. This process ensures a superior finish compared to painted assembled units. Engineered in the USA, the Graco XD80 Diesel Fuel Pneumatic Bare Reel meets professional standards for dependable, safe operation. Whether indoors or outdoors, it’s built to perform day after day in the harshest conditions.

Features & Specifications

• 2 in. (51 mm) inlet and outlet size
• Capacity: 2 in. x 50 ft. (51 mm x 15 m) hose
• Pneumatic direct-drive motor – maintenance-free
• Designed for diesel fuel dispensing
• Maximum working pressure: 100 PSI (6.7 bar)
• Operating temperature range: -40°F to 140°F (-40°C to 60°C)
• Rugged, one-piece welded frame
• Heavy-duty welded spool protects drive motor
• Individually painted and powder-coated components
• UPC: 633955152267
• Manufacturer Part Number: 24R578
