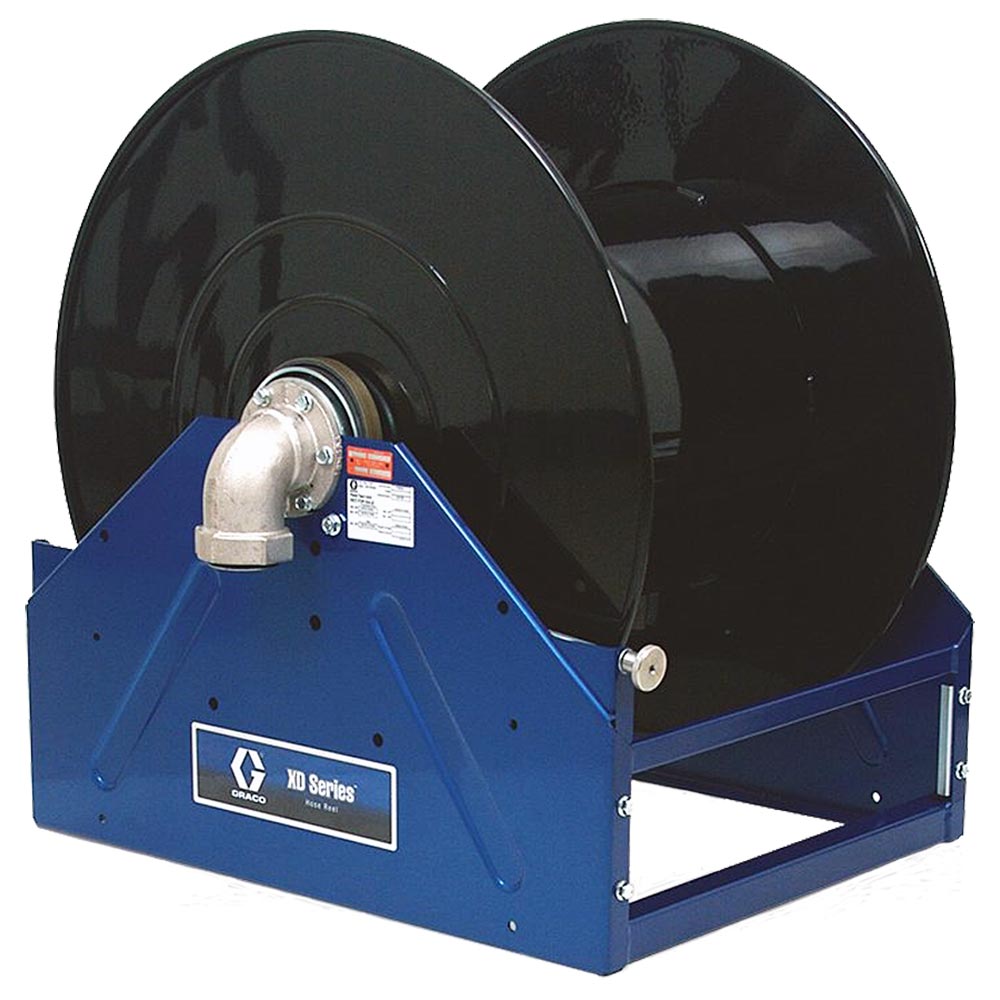

Graco XD80 Diesel Fuel Hose Reel, Blue – 24R570

The Graco XD80 Diesel Fuel Hose Reel, Part Number 24R570, is engineered for heavy-duty fueling applications. With its rugged direct-drive motor and welded frame design, this hose reel provides consistent, reliable performance in challenging environments. Unlike chain-driven systems, the sealed motor is lubricated for life, ensuring operators work more safely and with less downtime.

Designed for versatility, the XD80 reel supports easy system integration. Operators can conveniently change the inlet and motor direction, allowing for right- or left-hand flow orientation to fit different workspaces. The heavy-duty welded spool protects the drive unit while handling the weight of long hoses, ensuring extended service life. Additionally, its powder-coated finish offers superior corrosion resistance, making it an excellent choice for both indoor and outdoor fueling operations.

This reel is built to perform under extreme conditions, making it a top choice for industries such as fleet maintenance, construction, mining, and agriculture. With a large 2-inch hose capacity and a 115V electric motor, the Graco XD80 Diesel Fuel Hose Reel delivers the power and durability technicians and businesses demand.

Features & Specifications

• Direct-drive motor – lubricated for life, no exposed chains
• Heavy-duty welded spool protects drive unit and supports long hoses
• Powder-coated finish for superior corrosion resistance
• Flexible installation – adjustable inlet and motor direction
• Inlet/Outlet Size: 2 in. (51 mm)
• Hose Capacity: 2 in. x 50 ft (51 mm x 15 m)
• Operating Voltage: 115 VAC
• Maximum Working Pressure: 600 psi (41 bar)
• Temperature Range: -40°F to 140°F (-40°C to 60°C)
• Dry Weight: 179 lbs (81.2 kg)
• Shipping Weight: 224 lbs (101.6 kg)
• Overall Dimensions: 30.1″ H x 30.4″ L x 33″ W
• Finish: Metallic Blue
• Recommended Fluid: Diesel Fuel
• Manufacturer Part Number: 24R570
