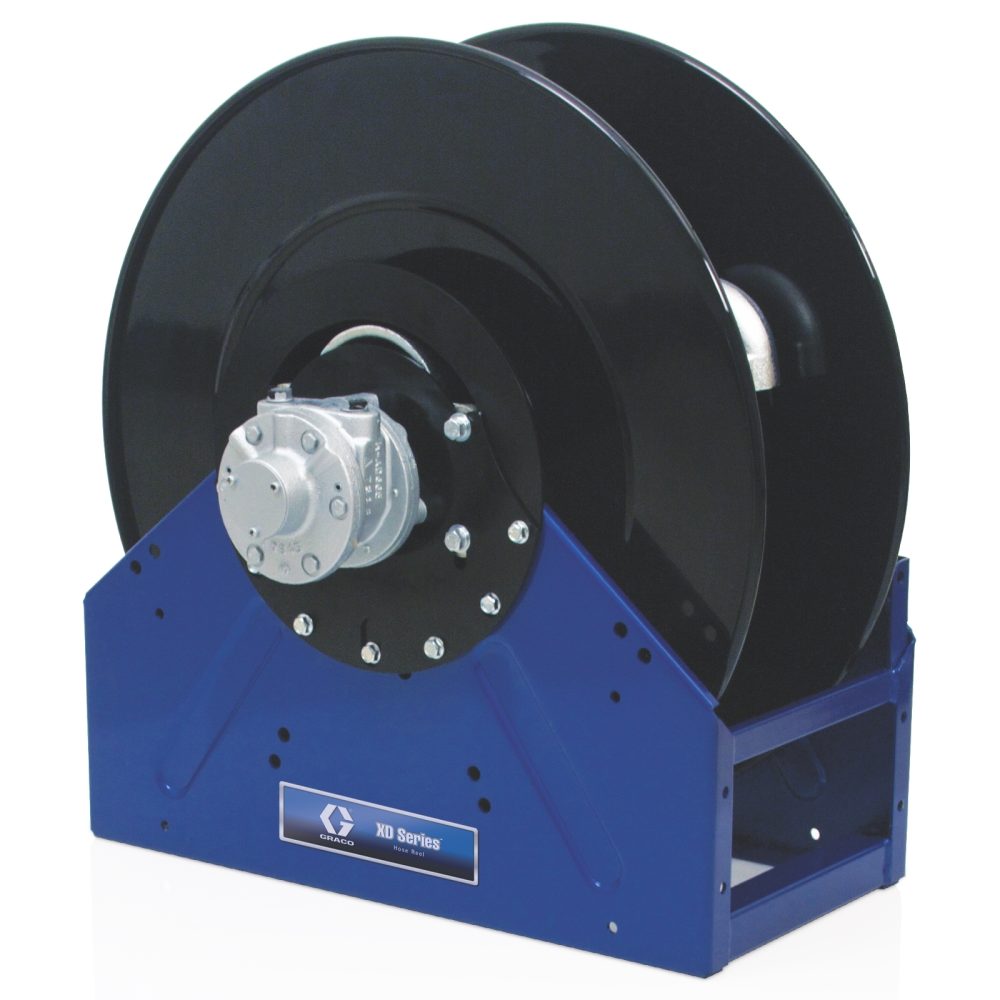

Graco XD70 Diesel Fuel Hose Reel 2 in. Bare Reel | Part 24T025

The Graco XD70 Diesel Fuel Hose Reel 2 in. Bare Reel is designed for tough fuel dispensing applications. Built with a pneumatic motor and a durable welded spool, this reel provides safe and efficient operation. Its heavy-duty one-piece welded frame resists flexing under pressure, making it stronger than bolted alternatives. With corrosion-resistant powder-coated components, the XD70 ensures long-term reliability in demanding environments.

Technicians will appreciate the direct-drive motor system, which eliminates greasy, exposed chains. This design reduces maintenance while increasing safety during daily use. The reel supports hoses up to 33 feet (10 meters), providing flexibility in workshops, garages, and field service operations. Additionally, the inlet and motor orientation can be easily adjusted, offering seamless system integration.

The Graco XD70 Diesel Fuel Hose Reel is ideal for rugged indoor and outdoor use, including fleet maintenance, mining, agriculture, construction vehicles, and service trucks. Its ability to handle extreme temperatures and pressures ensures performance in even the harshest conditions. By choosing this reel, businesses can work safer, smarter, and faster while maintaining consistent fuel dispensing reliability.

Features & Specifications

• Designed for diesel fuel dispensing applications
• Pneumatic motor for reliable power and safety
• 2 in. NPT inlet and outlet connections
• Handles hose capacity of 2 in. x 33 ft. (51 mm x 10 m)
• Heavy-duty one-piece welded frame resists flexing
• Powder-coated components for superior corrosion resistance
• Direct-drive motor system eliminates chain maintenance
• Maximum working pressure: 100 PSI (6.7 bar)
• Temperature range: -40°F to 140°F (-40°C to 60°C)
• Overall dimensions: 26.1 in. H x 26 in. L x 24.1 in. W
• Dry weight: 128 lbs (58 kg)
• Color: White
• Manufacturer’s Part Number: 24T025
