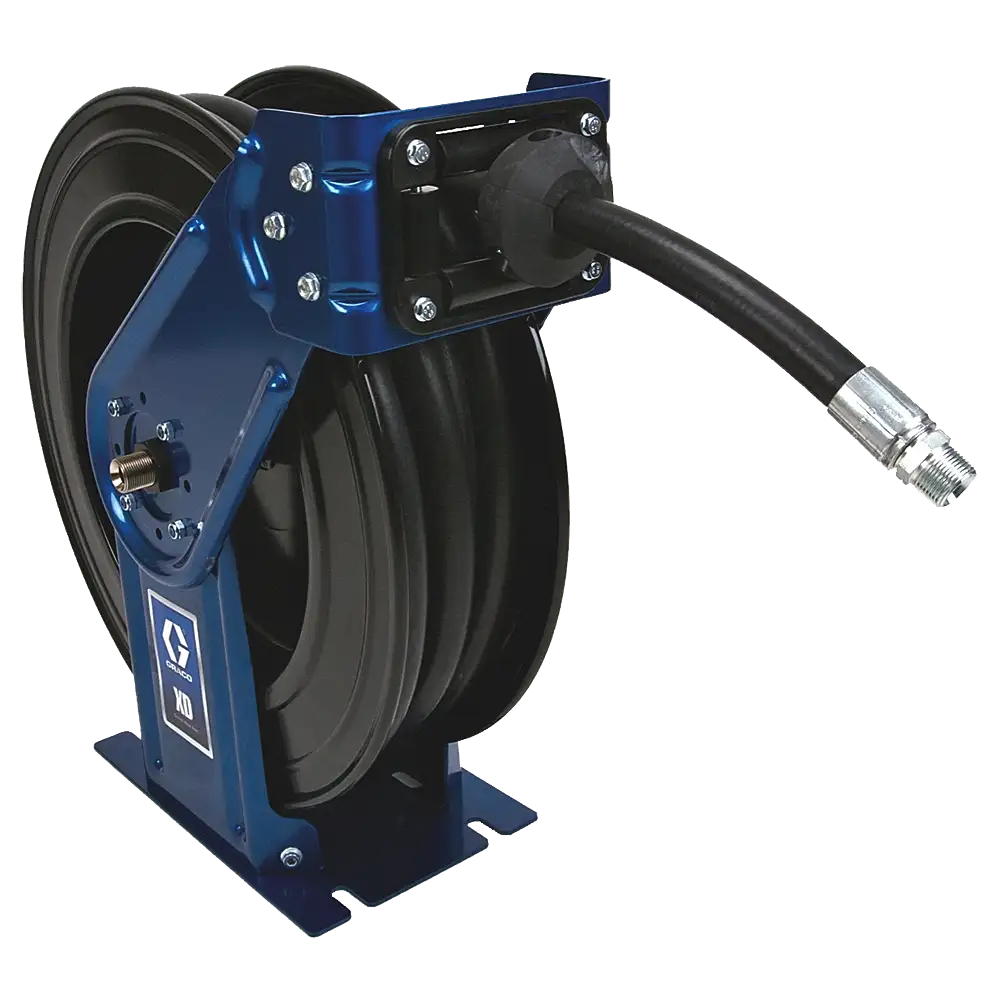

Graco XD30 Grease Hose Reel, 1/2 in. x 50 ft., Truck/Bench Mount (HSHC5B)
$2,010.00
The Graco XD30 grease hose reel is engineered for demanding applications. It provides the reach and capacity needed for high-volume dispense. This metallic blue, truck/bench mount model ensures reliable performance in tough conditions.
| Weight | 106 lbs |
|---|---|
| Dimensions | 26.4 × 10.8 × 26.4 in |
| Product Condition | New |
| Product Availability | Ships directly from the manufacturer |
For technicians in need of extended reach, the Graco XD30 grease hose reel delivers. This single unit is designed for applications needing more range and higher capacity. It surpasses the capabilities of standard XD10 and XD20 Series reels.
The compact pedestal and spool maximize space efficiency. This design fits neatly into even the tightest shop areas. You can choose from 30 to 75 feet of hose capacity for diverse needs. Transitioning between jobs is seamless and quick. Therefore, you spend less time on setup. This durable reel is ideal for rigorous heavy-duty fluid handling.
It handles many typical fluids with ease and includes:
- Petroleum- and synthetic-based oils
- Diesel fuel and air
- Water, antifreeze, and windshield washer fluid
- Pressure wash, waste oil, and diesel exhaust fluid (DEF)
The reel excels in rugged indoor and outdoor environments. Consider it for heavy-duty truck dealerships and fleet maintenance. It is also perfect for mining maintenance and public works garages. Furthermore, it is a great fit for construction vehicle maintenance and agriculture use. This robust unit is your solution for heavy-duty fluid handling.
Features & Specifications
- Spring Adjustment: Increase or decrease spring tension while the reel is pressurized with fluid.
- Full-Flow Swivel: Maximize material flow with minimal pressure drop for faster fills.
- Durable Finish: Baked-on enamel finish protects the reel from corrosion in harsh environments.
- Large Hose Capacity: The compact design holds a 50 ft. (15 m) x 1/2 in. (13 mm) hose.
- Inlet/Outlet Size: Both the inlet and outlet are 1/2 inch (13 mm) NPT.
- Max Working Pressure: Rated up to 5000 psi for high-pressure grease applications.
- Series: 30
- Reel Thread Type: NPT
- Recommended Fluid Type: Grease
- Mounting: Truck/Bench Mount
- Dry Weight: 98 lb.
- Manufacturer’s Part Number: HSHC5B
