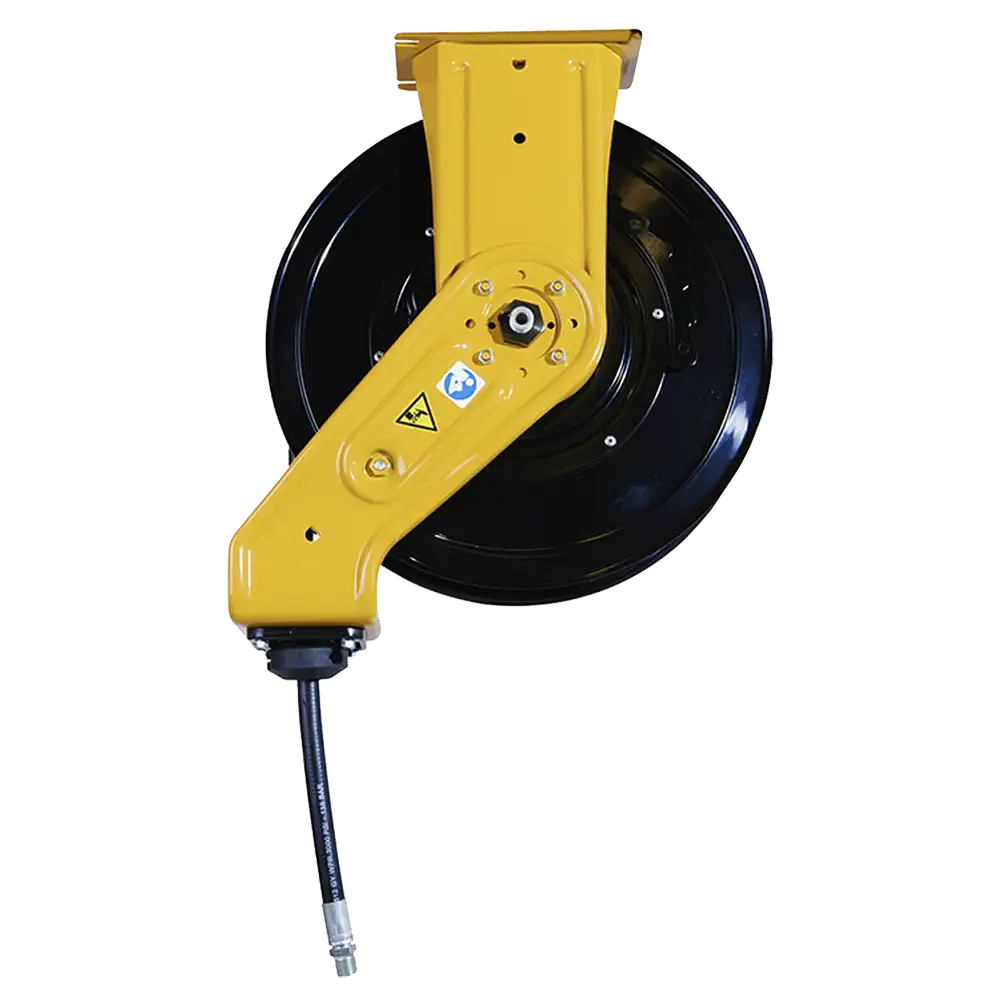

Graco XD30 Air/Water/Antifreeze Hose Reel, 3/4 in. x 50 ft. – HSLD5F

The Graco XD30 Air/Water/Antifreeze Hose Reel is engineered for technicians who need durable, high-capacity fluid handling. Designed for long-range dispensing, it delivers smooth, consistent flow in demanding environments.

With its compact dual-pedestal frame, the XD30 fits easily into tight truck or bench installations. Despite its small footprint, it accommodates hoses from 30 to 75 feet, giving flexibility for a variety of service setups.

Moreover, the reel’s full-flow swivel reduces pressure drop, ensuring faster fills and efficient operation. The spring adjustment feature allows users to fine-tune tension safely, even when the system is pressurized.

A baked-on enamel finish protects against corrosion and harsh shop conditions, ensuring years of reliable use. Additionally, the optional adjustable arm makes positioning the reel simple and convenient for multiple mounting configurations.

This reel handles a wide range of fluids, including air, water, antifreeze, windshield washer solution, and petroleum-based oils. It’s an excellent choice for technicians who need consistent performance in every pull and rewind.

Features & Specifications

• Handles air, water, antifreeze, and windshield washer fluids
• Full-flow swivel reduces pressure drop for faster fluid delivery
• Compact dual-pedestal frame fits tight spaces
• Spring tension adjustable while reel is pressurized
• Baked-on enamel finish resists corrosion
• Optional adjustable arm for flexible mounting positions
• Maximum Working Pressure: 300 psi
• Inlet/Outlet Size: 3/4 in. (19.05 mm)
• Hose Length: 50 ft. (15 m)
• Overall Dimensions (LxWxH): 22.12 x 9 x 23.10 in.
• Dry Weight: 98 lbs
• Frame Type: Dual Pedestal
• Reel Thread Type: NPT
• Model Series: XD30
• Manufacturer’s Part Number: HSLD5F
