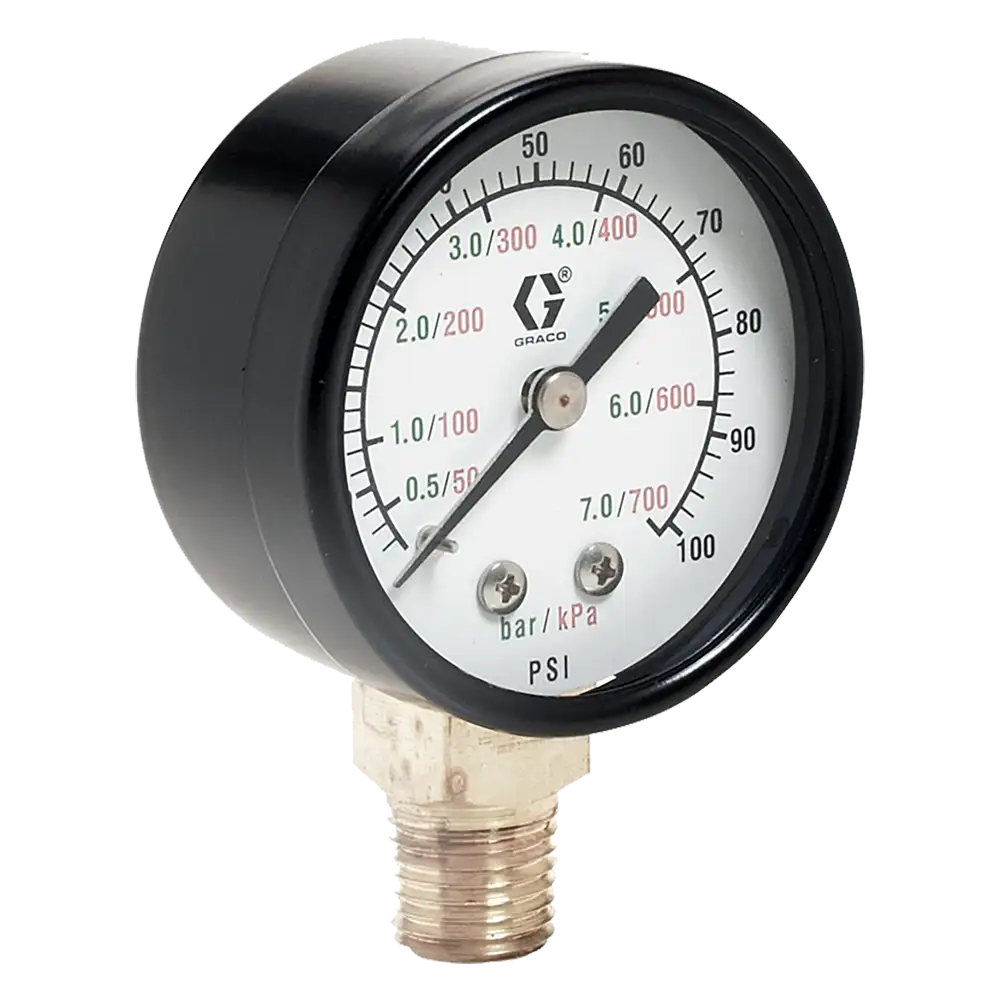

Graco Low Pressure Air Gauge 0-200 PSI, 100960
$40.23
The Graco 100960 Low Pressure Air Gauge provides clear pressure readings for compatible Graco equipment. Its bottom-mount design uses a 1/4-inch male inlet and supports pressures up to 200 psi.
| Weight | 0.25 lbs |
|---|---|
| Dimensions | 2.4 × 3.05 × 1.4 in |
| Product Availability | Ships directly from the manufacturer |
| Product Condition | New |
The Graco Low Pressure Air Gauge 100960 provides technicians with a straightforward way to monitor air pressure on compatible equipment. Its 2-inch dial provides a practical viewing size for routine service and equipment checks. Additionally, the gauge supports pressure readings from 0 to 200 psi, or 0 to 14 bar.
The bottom-mount configuration allows the gauge to connect through its lower inlet. Therefore, its mounting arrangement can work well where the gauge connection approaches from below. The 1/4-inch male inlet provides a standard connection size for compatible equipment and components.
Furthermore, the gauge supports a maximum working pressure of 200 psi. That rating equals 14 bar, 1,400 kPa, or 1.4 MPa. Consequently, technicians can use the gauge within its specified pressure range when servicing compatible applications.
The Graco Low Pressure Air Gauge 100960 has a 2-inch diameter dial. Its compact body measures approximately 2.4 inches long and 3.05 inches wide. Meanwhile, the overall height measures approximately 1.4 inches.
The gauge weighs approximately 0.25 pounds for shipping purposes. Its compact size also makes it practical for replacement-part inventory and equipment service needs. Additionally, the manufacturer identifies China as the country of origin.
For technicians, the Graco Low Pressure Air Gauge 100960 offers a clearly defined replacement option. Its pressure range, inlet size, and bottom-mount configuration simplify specification matching. Always verify the equipment connection and pressure requirements before installation.
Features & Specifications:
- Pressure range: 0-200 psi (0-14 bar)
- Maximum working pressure: 200 psi (14 bar)
- Maximum working pressure: 1,400 kPa (1.4 MPa)
- Mounting configuration: Bottom mount
- Dial diameter: 2 inches (51 mm / 5 cm)
- Inlet size: 1/4 inch (6.35 mm / 0.635 cm)
- Inlet thread gender: Male
- Approximate dimensions: 2.4 inches long × 3.05 inches wide × 1.4 inches high
- Shipping weight: 0.25 lb (0.113 kg)
- Country of origin: China
- UPC: 633955604766
- Manufacturer part number: 100960
