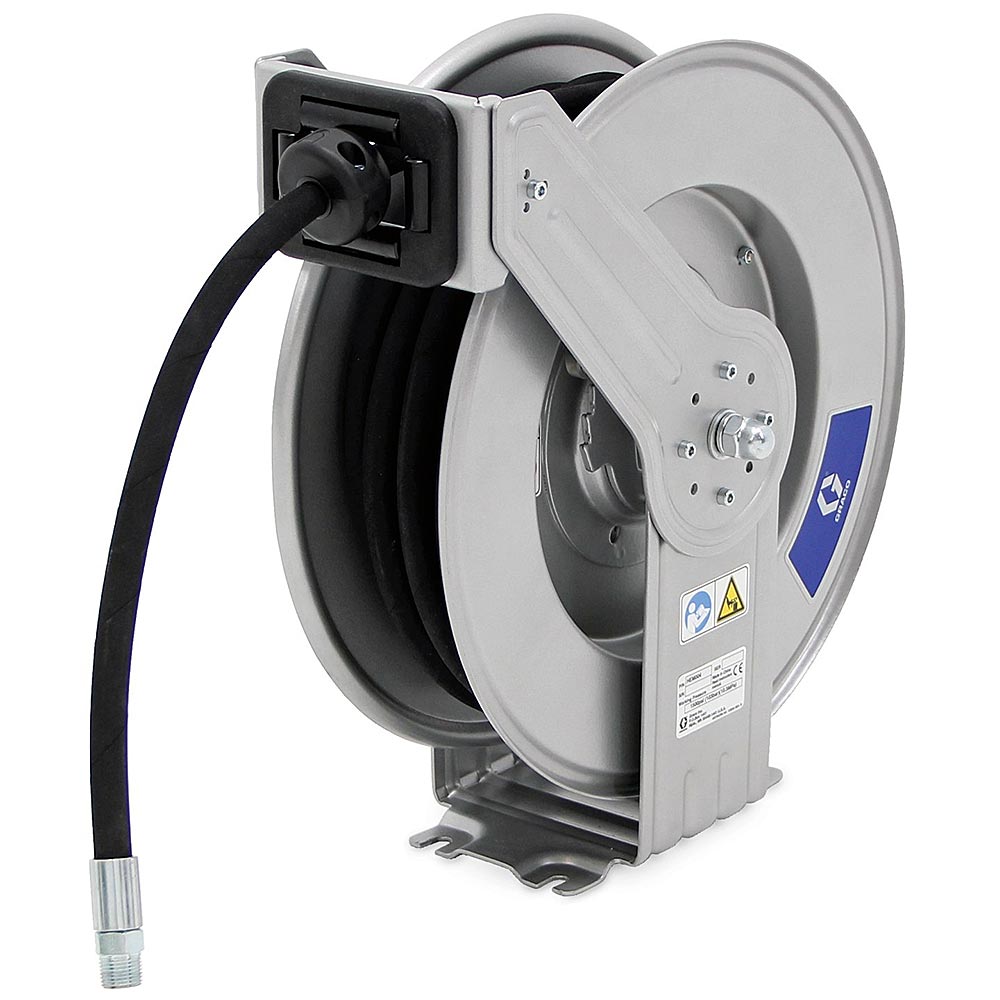

Graco LDX™ Series Hose Reel, 3/8 in. x 50 ft, HEL010

The Graco HEL010 LDX™ Series Hose Reel is built for reliability and efficiency in busy service environments. Ideal for dispensing air, water, windshield wash, or antifreeze, it supports a maximum pressure of 300 psi. The compact frame fits well in smaller shops, while its robust all-metal design ensures long-lasting performance even in rugged use cases.

Because the reel includes a 50 ft (15 m) hose, it’s ready to work out of the box. You’ll find it easy to position, thanks to an adjustable arm with six mounting angles. A ball-bearing swivel provides smooth hose movement with reduced friction, increasing service life. The Graco LDX hose reel also features an external swivel housing for faster maintenance and a dual pedestal frame for superior strength. It’s engineered for those who demand practical quality at an excellent value.

Features & Specifications

• Includes 3/8 in. x 50 ft (10 mm x 15 m) hose
• Handles air, water, antifreeze, and windshield washer fluids
• Dual pedestal frame for enhanced durability
• All-metal body with ribbed frame for added strength
• External swivel housing allows quick swivel maintenance
• Ball-bearing swivel reduces friction and wear
• Six-position adjustable arm for flexible mounting
• Compact design with large hose capacity
• Maximum working pressure: 300 psi
• Temperature range: -14.8°F to 149°F (-26°C to 65°C)
• Reel thread type: NPT; Male inlet and outlet
• Dry weight: 40.7 lbs (18.5 kg)
• UPC: 769946211900
• Manufacturer Part Number: HEL010
