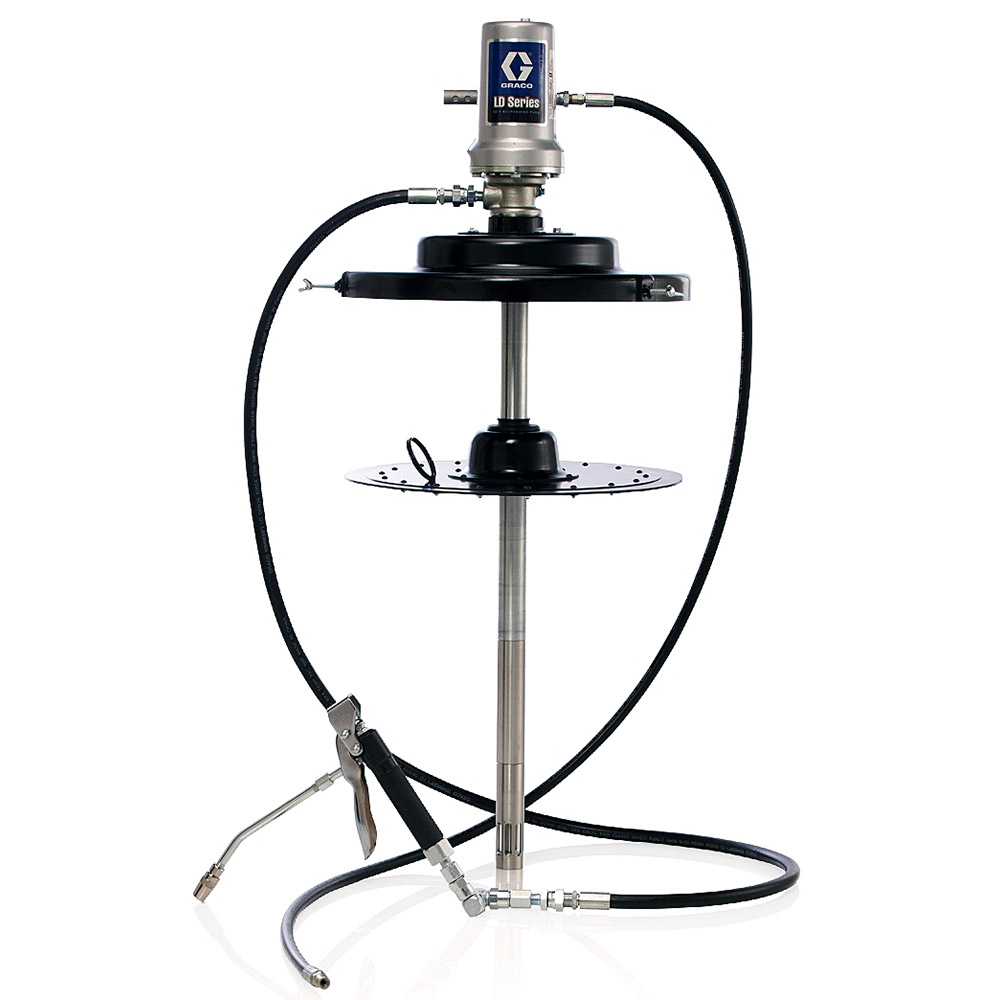

Graco LD Series 50:1 120 lb Grease Pump – 24J036

The Graco LD Series 50:1 Grease Pump – Part Number 24J036 is a ready-to-use stationary package designed for consistent grease delivery in low-volume applications. With a powerful 3-inch air motor and a compact, rugged build, it’s ideal for operations handling up to 7,000 lb (3,175 kg) of grease annually. Whether you’re working in automotive, fleet service, or light industrial settings, this pump provides reliable performance and easy maintenance.

This complete package includes key accessories to streamline installation and use. It features the LD PRO-SHOT valve, a durable 6-ft grease hose, and an LD Z-Swivel for enhanced maneuverability. A 120 lb drum cover, plate follower, and NPT-configured pump help maintain clean and efficient operation. The system’s self-cleaning pilot valves reduce stalling, while the patented cup and plate design eliminates weak O-rings, boosting longevity in demanding environments. Designed with technicians in mind, this pump system offers excellent value, easy setup, and long-term durability.

Features & Specifications

• 50:1 pressure ratio for light-duty grease applications
• Handles up to 7,000 lb (3,175 kg) of grease annually
• Includes LD PRO-SHOT Valve, Grease, 1/4 NPT – Qty: 1 (Part No. 129581)
• Includes 120 lb Plate Follower – Qty: 1 (Part No. 24F902)
• Includes LD Series 50:1 Pump for 120 lb Pail – Qty: 1 (Part No. 24G603)
• Includes LD Z-Swivel, NPT – Qty: 1 (Part No. 129591)
• Includes 120 lb Drum Cover – Qty: 1 (Part No. 24F905)
• Includes 6-ft Grease Hose, NPT – Qty: 1 (Part No. 24H862)
• 3-inch air motor provides powerful flow performance
• Self-cleaning pilot valves reduce stalling and pressure drop
• Patented cup and plate design removes O-rings for better durability
• Fluid Outlet Size: 0.635 cm (6.35 mm)
• Maximum Working Pressure: 5000 psi (345 bar)
• Air Inlet Size: 0.25 in
• Stationary pump fits 120 lb (54 kg) grease containers
• UPC: 633955618251
• HTS Code (US): 8413190000
• Manufacturer Part Number: 24J036
