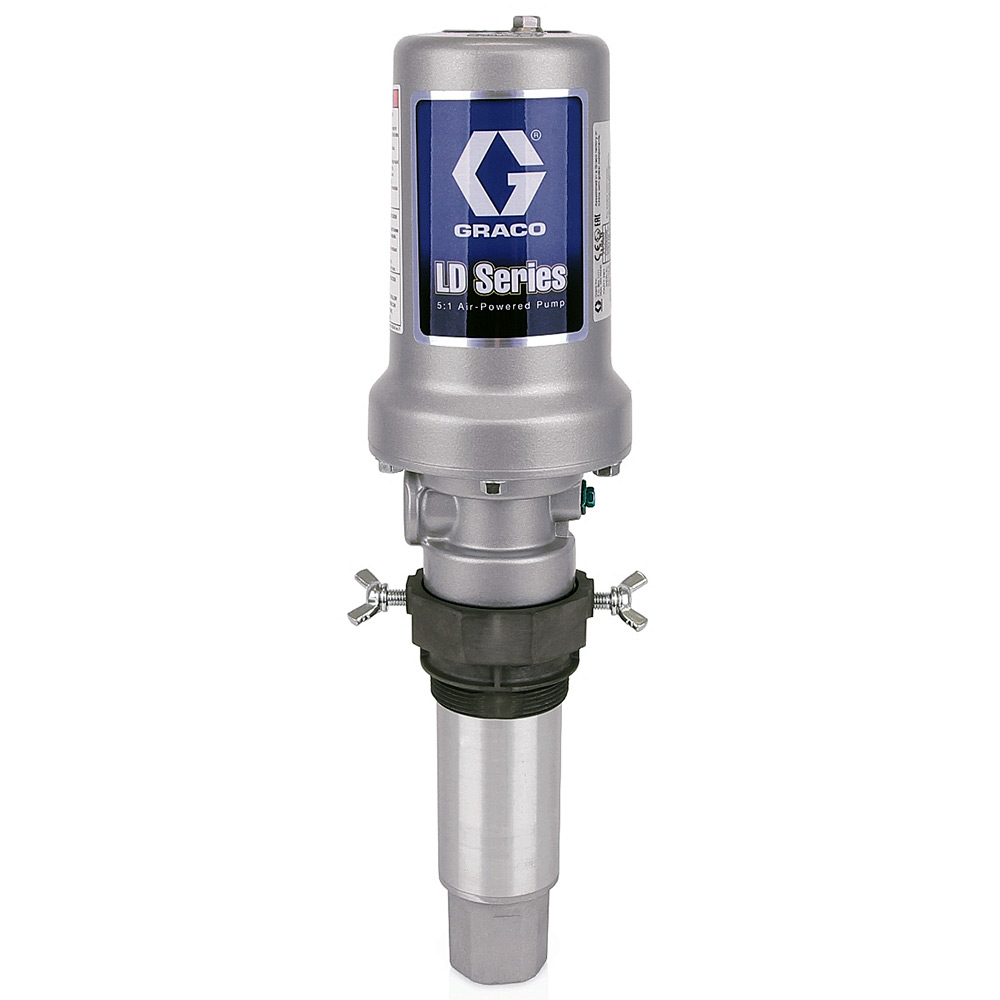

Graco LD Series 5:1 Universal Oil Pump with Bung Adapter – 24G590

The Graco LD Series 5:1 Universal Oil Pump with Bung Adapter – Part Number 24G590 is built for performance in low-volume oil applications. It includes a powerful 3-inch air motor, delivering reliable flow for consistent shop use. The included adjustable bung adapter makes setup fast and convenient, saving technicians valuable time.

This pump features a built-in thermal relief and inlet strainer to protect against thermal expansion and debris. Additionally, the modular air valve and pilot valve are designed for smoother flow and less downtime. The Graco LD Series Oil Pump is a dependable and efficient solution for busy automotive and maintenance shops.

Features & Specifications

• 5:1 universal oil pump with BSPT threading
• 3-inch air motor for strong, consistent flow
• Built-in thermal relief prevents thermal expansion damage
• Modular air valve reduces icing and improves efficiency
• Easy-to-repair design for faster maintenance
• Self-cleaning pilot valve increases pump reliability
• Adjustable bung adapter with slide adjustment and hand screws
• Built-in inlet strainer protects against contaminants (oil only)
• Max air inlet pressure: 150 psi (10.34 bar)
• Max working pressure: 750 psi (51.7 bar)
• Air inlet: 1/4 in. (6.35 mm)
• Fluid inlet: 1 in. (25.4 mm)
• Fluid outlet: 1/2 in. (12.7 mm)
• Height: 9.6 in. | Length: 18 in. | Width: 7.2 in.
• Shipping weight: 10.03 lbs (4.55 kg)
• Manufacturer Part Number: 24G590
