Graco Fire-Ball 300 50:1 Grease Pump Package 244645

The Graco Fire-Ball 300 Series 50:1 Grease Pump – Horizontal Mount Package (Part Number 244645) is a complete, ready-to-install system built for high-pressure grease applications. This packaged solution includes everything technicians need for efficient setup and long-term performance. It features the trusted Fire-Ball 300 Series 50:1 grease pump for 35 or 70 lb pails (Part Number 239877), renowned for its durable build and consistent grease flow.

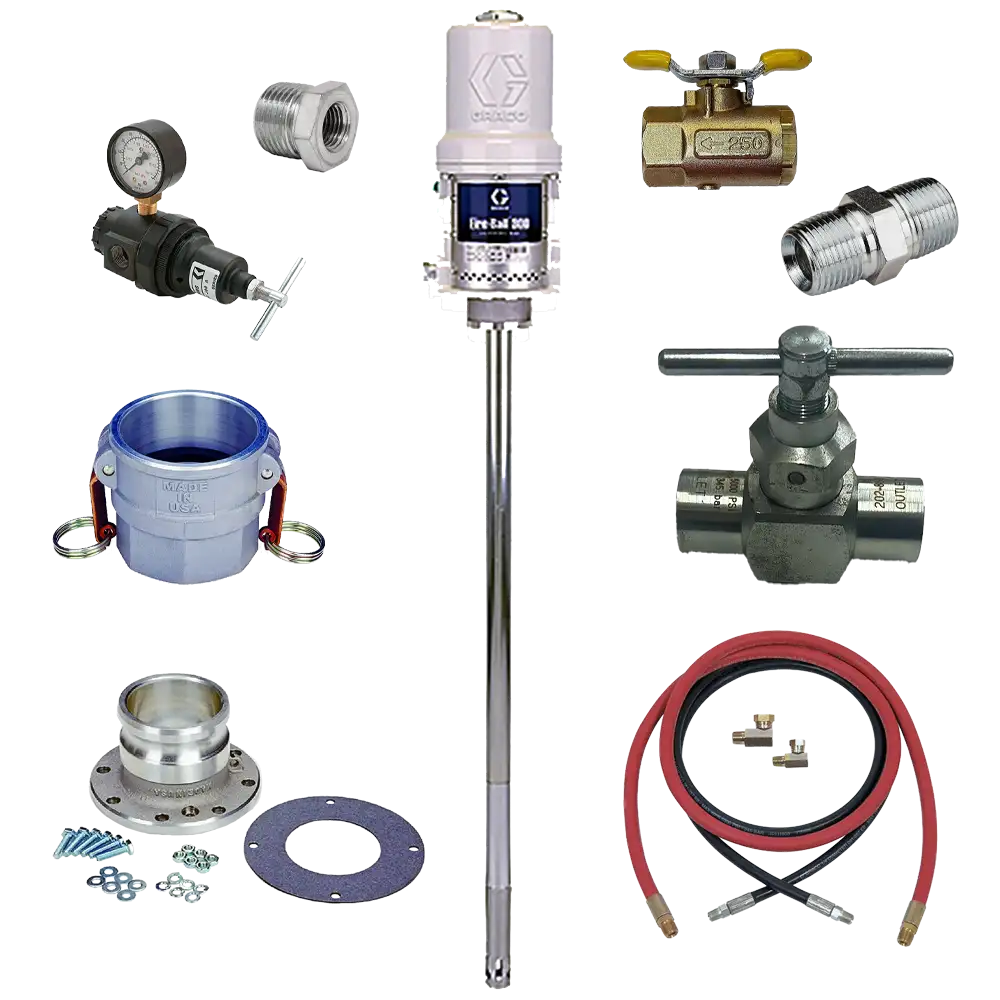

This Fire-Ball grease pump package is equipped with essential components for streamlined installation and superior system control. It includes an installation kit (Part Number 948393), a 6 ft grease hose and fitting kit (Part Number 222072), a 3/8 in x 3/8 in hose fitting (Part Number 156849), and a female quick-disconnect coupler (Part Number 512874). Also included is a 5000 psi high-pressure needle valve (Part Number 202869) for isolating drop-lines, and a vented 3/8 in ball valve (Part Number 110224) for safe shut-off.

To regulate air input, the package includes a 3/8 in air regulator with gauge (Part Number 109075), a pipe bushing (Part Number 100206), and a complete instruction manual (Part Number 309350) for quick setup. The Fire-Ball grease pump package features a 3-inch air motor, double-acting design, and in-line piston alignment to extend seal life and reduce repairs. Its corrosion-resistant materials—nickel-plated, stainless steel, and nitrided components—help it withstand harsh environments with ease.

This all-in-one package is perfect for automotive service bays, industrial lubrication systems, and heavy equipment shops. It’s engineered to reduce downtime, maximize uptime, and keep grease flowing consistently. When reliability matters, trust the Fire-Ball grease pump package to deliver on every level.

Features & Specifications

• 3-inch differential air motor delivers consistent, high-pressure grease flow
• Double-acting design ensures accurate dispensing and reduces downtime
• Heavy-duty cast aluminum motor housing enhances durability
• Minimal moving parts reduce maintenance and repair frequency
• In-line piston design extends seal life and pump longevity
• Proprietary displacement rod design minimizes wear
• Non-metallic poppet valves maintain seal in dirty air conditions
• Large air porting reduces icing and boosts air efficiency
• Corrosion-resistant materials extend life in harsh environments
• Includes pump, air shutoff valve, hose and fitting kit, regulator, nipple
• Maximum pressure: 5000 psi / 350 bar
• Air inlet: 3/8 in. female thread
• Fluid outlet: 6.35 mm female thread
• Pump weight: 22 lb
• Manufacturer Part Number: 244645
