Graco 24H420 mini air pressure regulator with compact NPT design

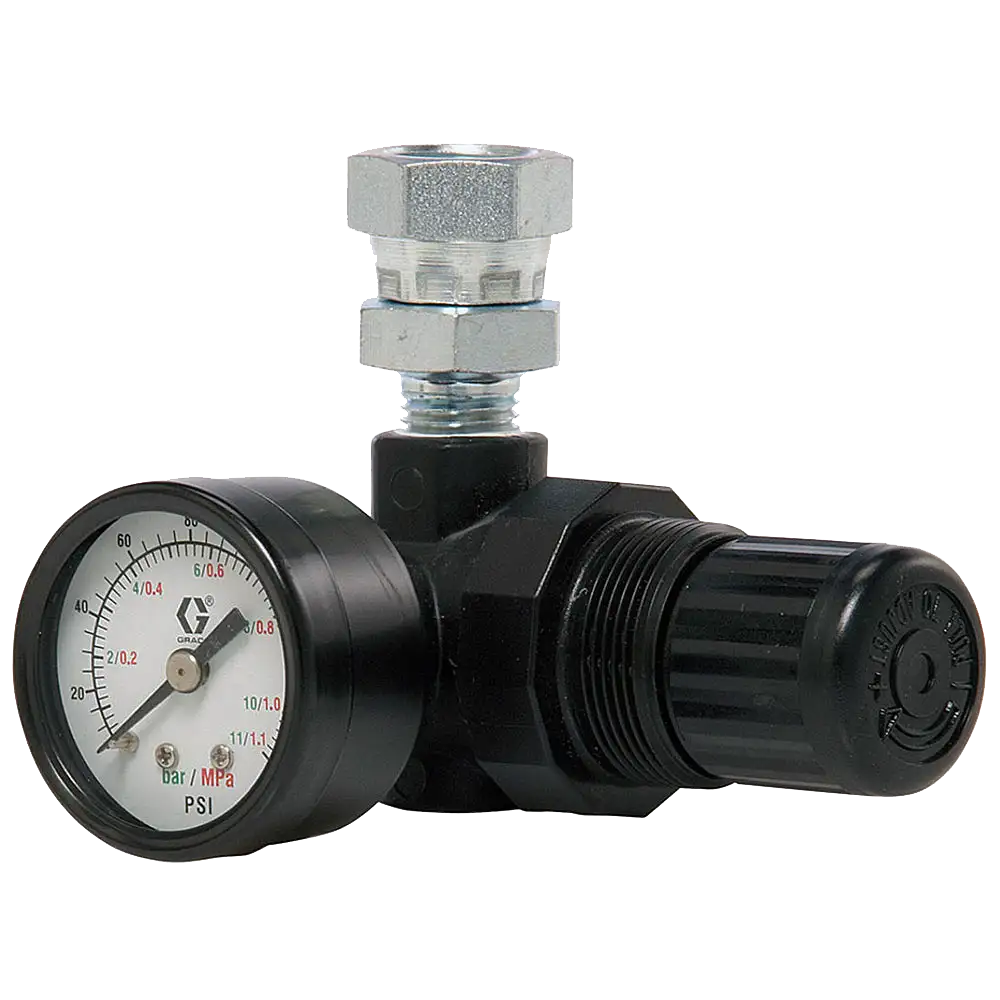

Graco 24H420 Mini Air Pressure Regulator

Graco

$129.50

Weight0.74 lbs
Dimensions4.5 × 4.5 × 3.75 in
Product Availability
Product Condition
SKU: 24H420 Category:

The Graco air pressure regulator 24H420 provides compact pressure control for pneumatic equipment. Its mini design helps technicians manage installation space. Additionally, its NPT configuration supports common pneumatic system connections.

This regulator suits service applications where controlled air pressure supports reliable equipment operation. Because the unit measures only 4.5 inches wide, it fits compact installations. Its 3.75-inch height also helps limit the space required around the regulator.

Furthermore, the 4.5-inch length provides a compact overall footprint for equipment layouts. Technicians can use these dimensions when planning replacement work or new installations. The unit weighs approximately 0.74 pounds for shipping and handling purposes.

The regulator comes as one individual unit, with a unit of measure listed as each. Its UPC identifies the specific Graco product for purchasing and inventory processes. The manufacturer also assigns this component to Division LED and Family Code FAMOAP.

Before installation, verify the connection requirements for your specific pneumatic equipment. Also, confirm that the regulator matches the pressure requirements of the application. Proper component selection helps support dependable operation and easier service work.

For replacement projects, the Graco air pressure regulator 24H420 provides a clearly identified component for ordering. Its compact dimensions can also simplify storage and inventory management. Finally, technicians should verify all application requirements before replacing an existing regulator.

Features & Specifications:

  • Mini air pressure regulator designed for pneumatic pressure control
  • NPT connection configuration
  • Height: 3.75 in (9.525 cm)
  • Length: 4.5 in (11.43 cm)
  • Width: 4.5 in (11.43 cm)
  • Volume: 0.044 ft³ (0.001 m³)
  • Shipping weight: 0.74 lb (0.34 kg)
  • UPC: 00633955615663
  • Division: LED; Family Code: FAMOAP
  • Unit of measure: Each (EA)
  • Manufacturer part number: 24H420
