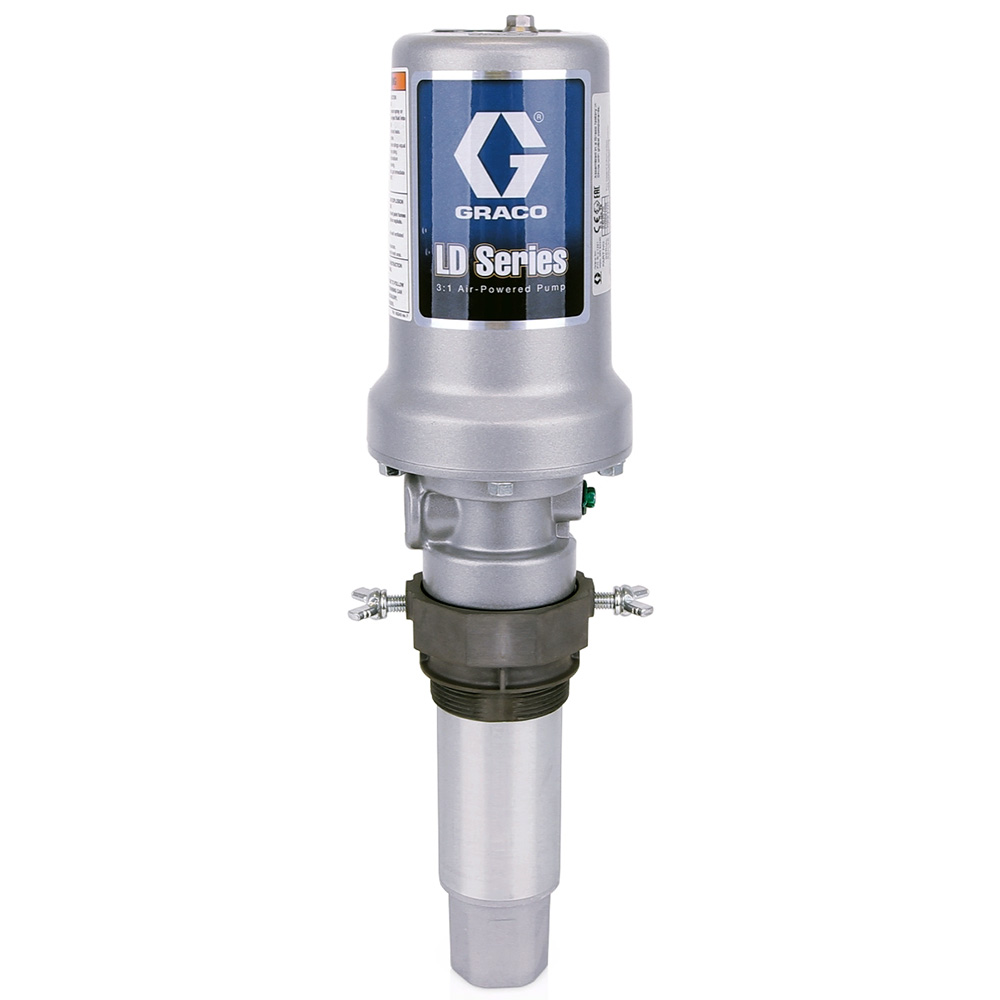

Graco 24G576 LD Series 3:1 Universal Oil Pump with Bung Adapter – NPT

Graco 24G576 LD Series 3:1 Universal Oil Pump with Bung Adapter – NPT

The Graco LD Series Pump (Part #24G576) offers reliable performance at an unbeatable value. Designed for low-volume oil applications, it features a powerful 3-inch air motor and built-in thermal relief to protect your system from thermal expansion.

Moreover, its innovative design reduces downtime and enhances durability. From its patent-pending air valve to a modular setup that allows easy servicing, this pump is a smart choice for facilities needing performance, protection, and efficiency in one compact solution.

Key Features

• 3-inch air motor delivers strong, consistent flow
• Built-in thermal relief protects from expansion damage
• Innovative air valve minimizes icing and improves efficiency
• Easy to service without internal component teardown
• Pilot valve resists dirty air environments and reduces stalling
• Cup-and-plate design eliminates wear-prone O-rings
• Includes adjustable bung adapter for flexible fit
• Built-in oil strainer filters contaminants automatically

Key Performance

• Pump ratio: 3:1
• Maximum working pressure: 7,500 PSI (517 bar)
• Maximum air inlet pressure: 150 PSI (10.34 bar)
• Air inlet size: 1/4 in. NPT (6.35 mm)
• Fluid inlet: 1 in. (25.4 mm)
• Fluid outlet: 1/2 in. (12.7 mm)
• Compatible with oil only
• Weight: 7 lbs (3.18 kg)
• Wetted materials: Zinc-plated carbon steel, aluminum, nitrile, polyurethane, nickel-plated aluminum
