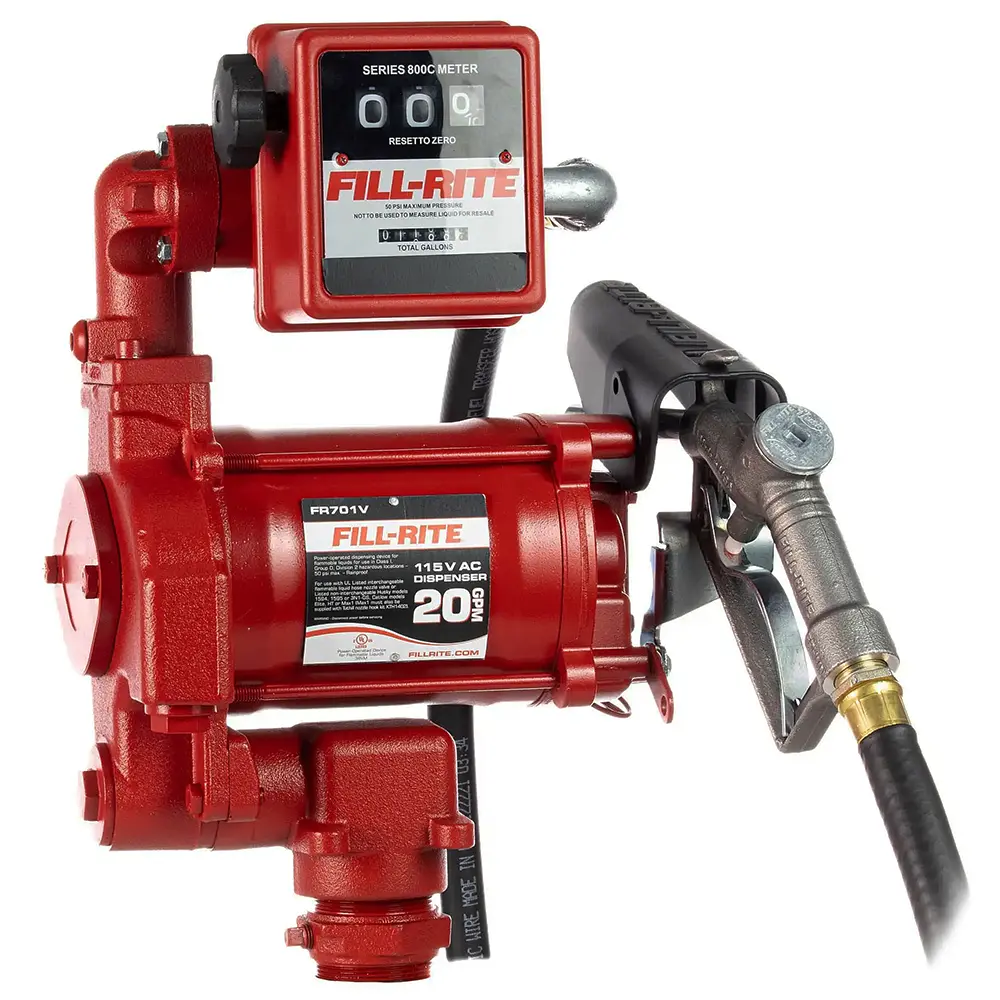

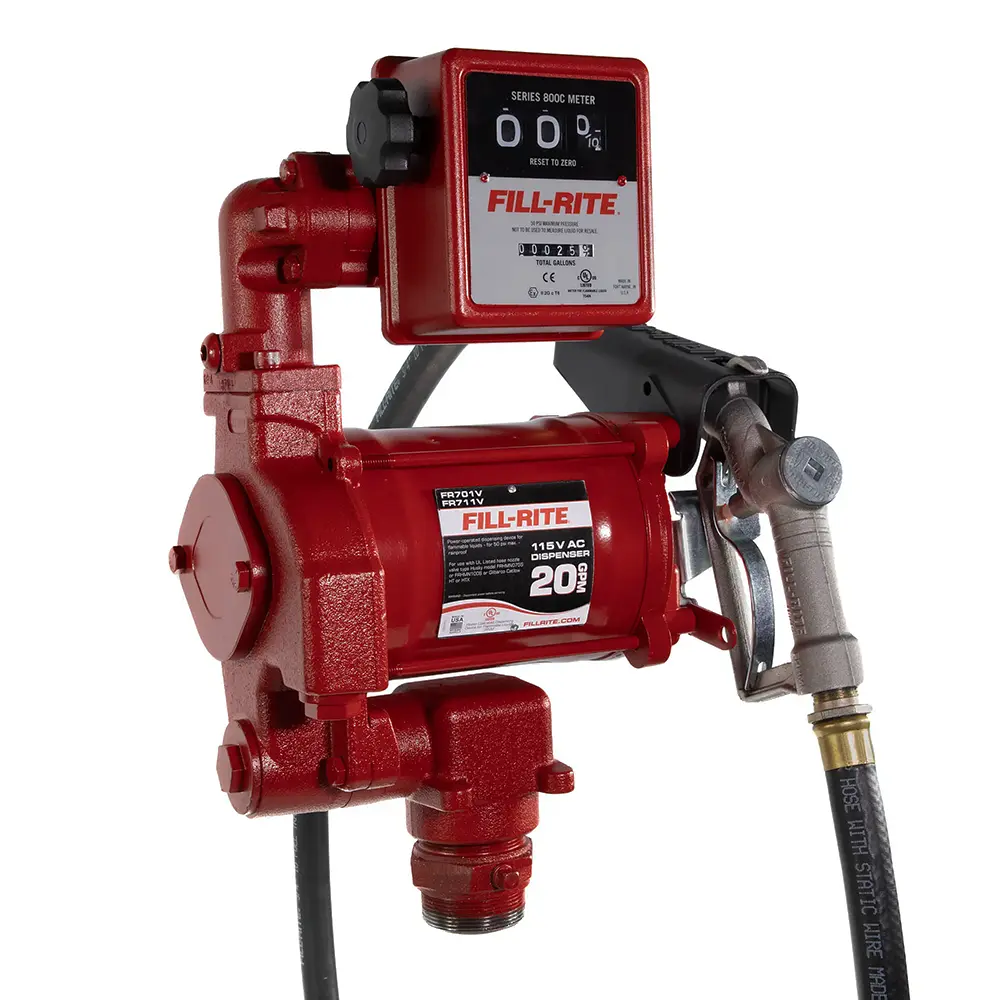

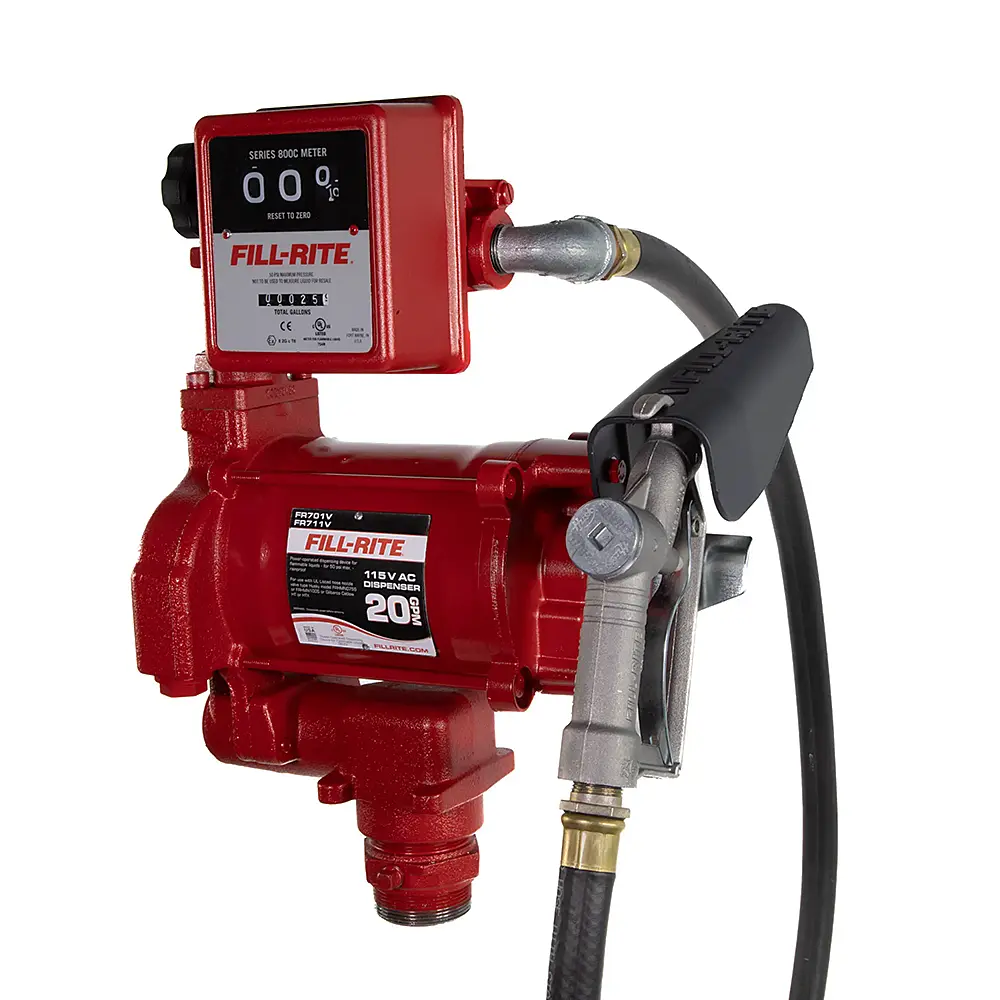

Fill-Rite FR711VA Transfer Pump with Meter & Nozzle

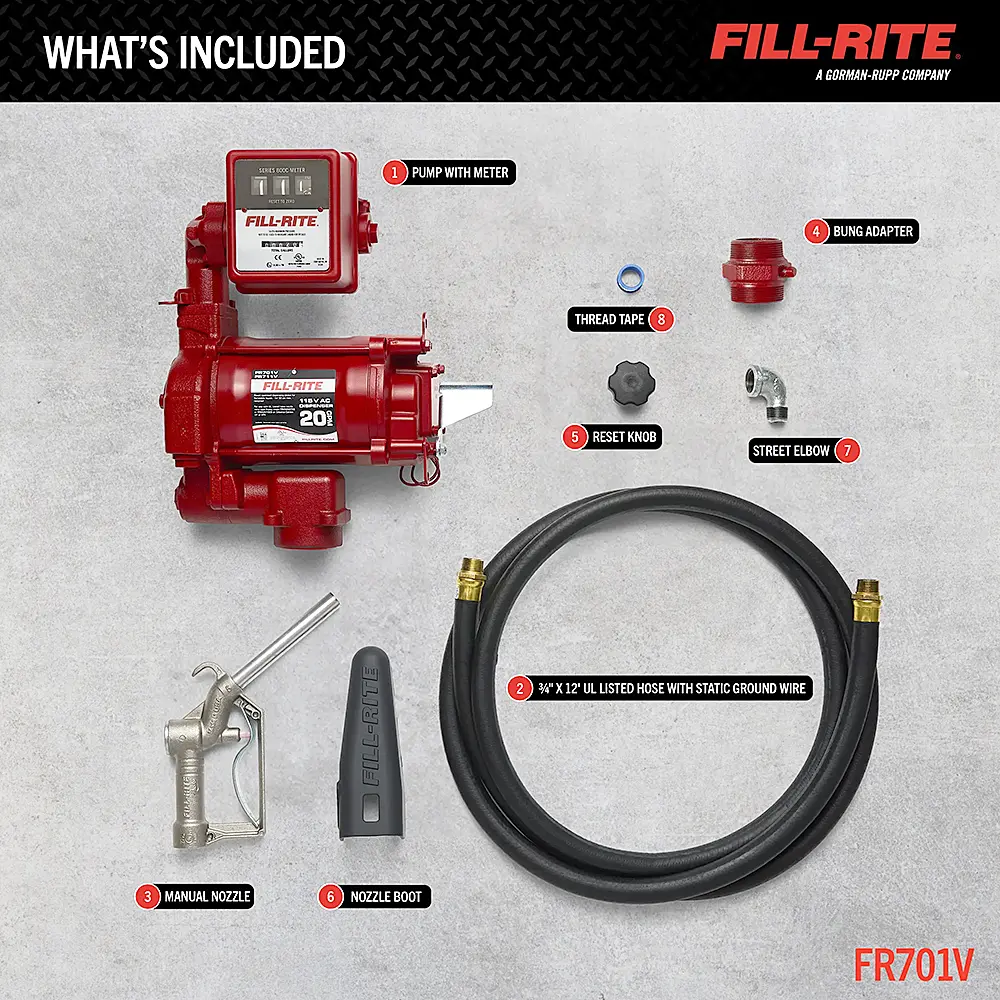

The Fill-Rite FR711VA pump is a dependable 115V AC, 20 GPM fuel transfer system designed for demanding fueling operations. Its cast-iron construction ensures long-lasting durability, even in harsh field conditions. This complete package includes a mechanical meter, hose, nozzle, and installation hardware, making setup straightforward and efficient.

Built with Fill-Rite’s trusted rotary vane technology, the FR711VA pump delivers consistent 20 GPM performance. This flow rate makes it ideal for quickly fueling heavy equipment with tanks between 20 and 80 gallons. The thermally protected motor prevents overheating, extending the lifespan of the pump. Additionally, the built-in mesh strainer safeguards your equipment by filtering out particulates from fuel before it reaches the nozzle.

The Fill-Rite FR711VA pump is designed for stationary aboveground tanks with a 2-inch bung mount and 115V AC power connection. It is compatible with a wide range of fuels including diesel, kerosene, gasoline up to E15, biodiesel up to B20, mineral spirits, heptane, and stoddard solvents. Whether for fleet fueling, construction equipment, or farm operations, this pump delivers reliable results and long-term value.

Features & Specifications

• Heavy-duty cast-iron construction for long service life
• Delivers 20 GPM flow rate with rotary vane pump technology
• Designed for stationary aboveground tanks with 2” bung mount
• Includes 901C mechanical meter for accurate measurement
• Thermally protected 115V AC motor prevents overheating
• Built-in 40-micron mesh strainer protects equipment
• Compatible with diesel, kerosene, biodiesel (B20), and gasoline (E15)
• Comes with 1” x 18’ UL listed hose and static ground wire
• Includes 1” Ultra Hi-Flow automatic diesel nozzle (red)

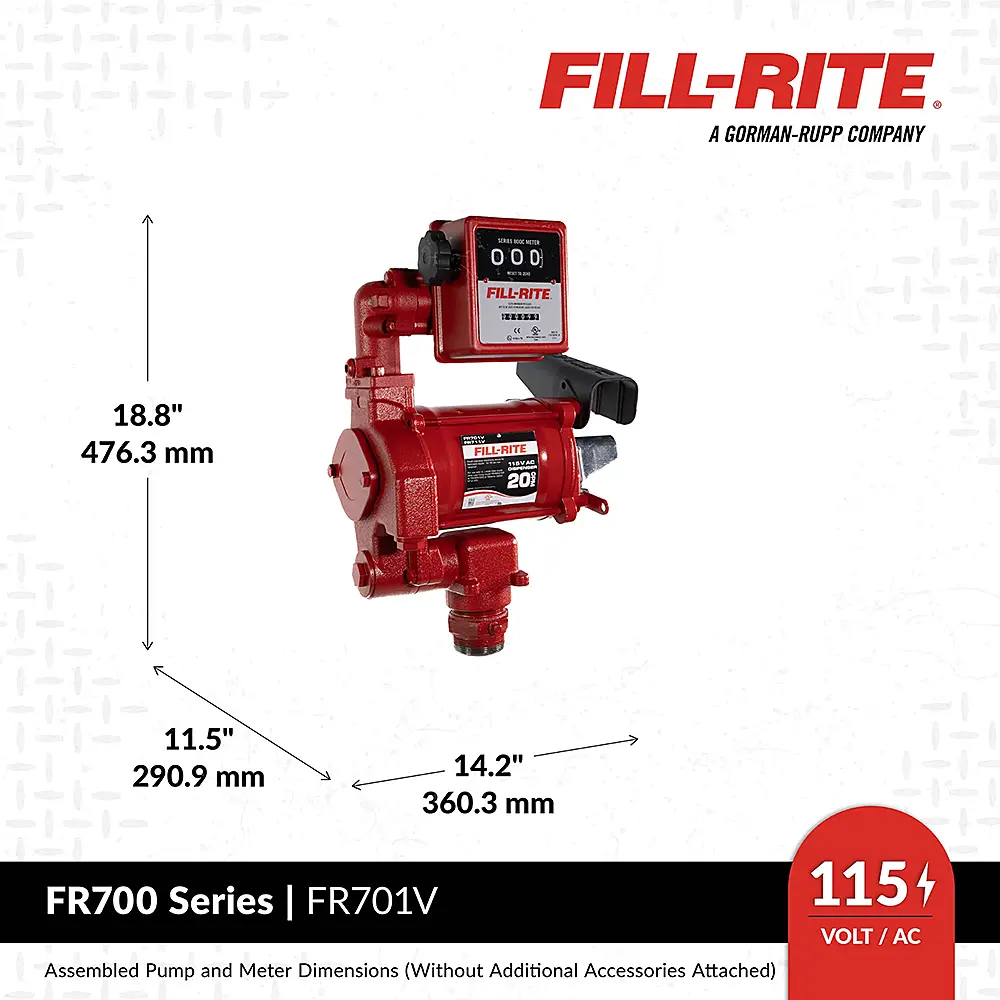

• Assembled dimensions: 18.7” H x 14.4” W x 14.2” D
• Assembled weight: 66.1 lbs; Shipping weight: 71.8 lbs
• Manufacturer’s Part Number: FR711VA
