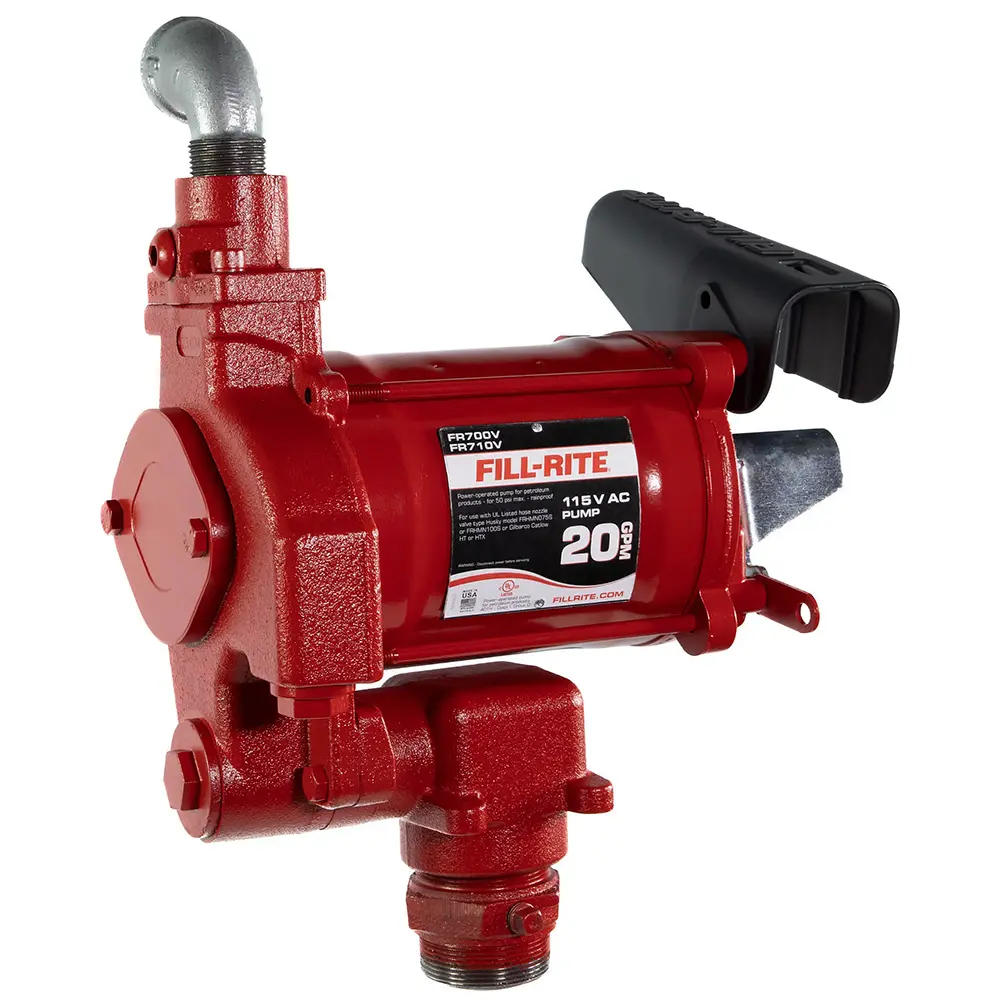

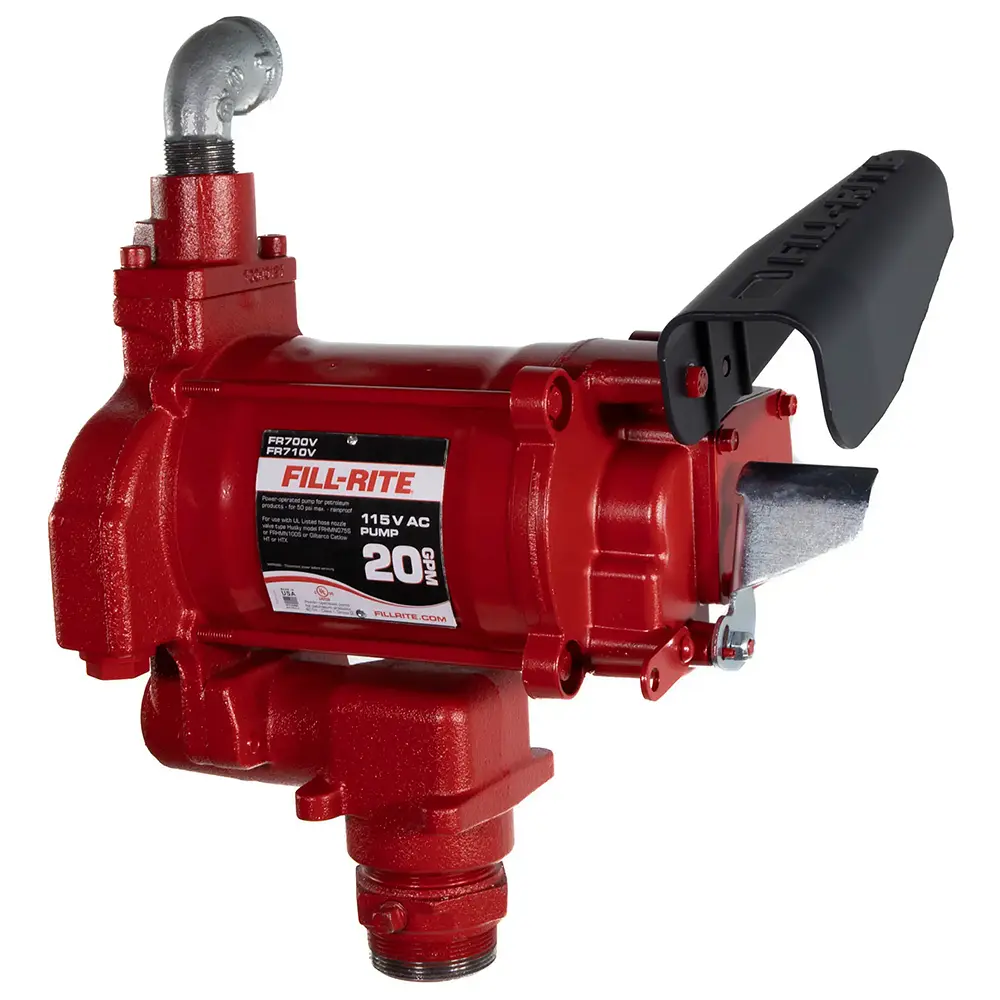

Fill-Rite FR710VN Fuel Transfer Pump

The Fill-Rite FR710VN 115V AC 20 GPM Fuel Transfer Pump is designed for technicians and businesses that demand reliable fuel dispensing. With cast-iron construction, it withstands harsh work environments while maintaining performance. This pump is engineered for stationary tank applications, making it a dependable solution for fueling fleets and equipment.

Built with rotary vane technology, the FR710VN ensures consistent flow rates of 20 gallons per minute. Its thermally protected motor prevents overheating, while the built-in strainer protects equipment from harmful particulates. This means fewer interruptions and less maintenance for your operation. Additionally, the pump supports a wide range of fuels, including diesel, gasoline, kerosene, biodiesel blends, and solvents.

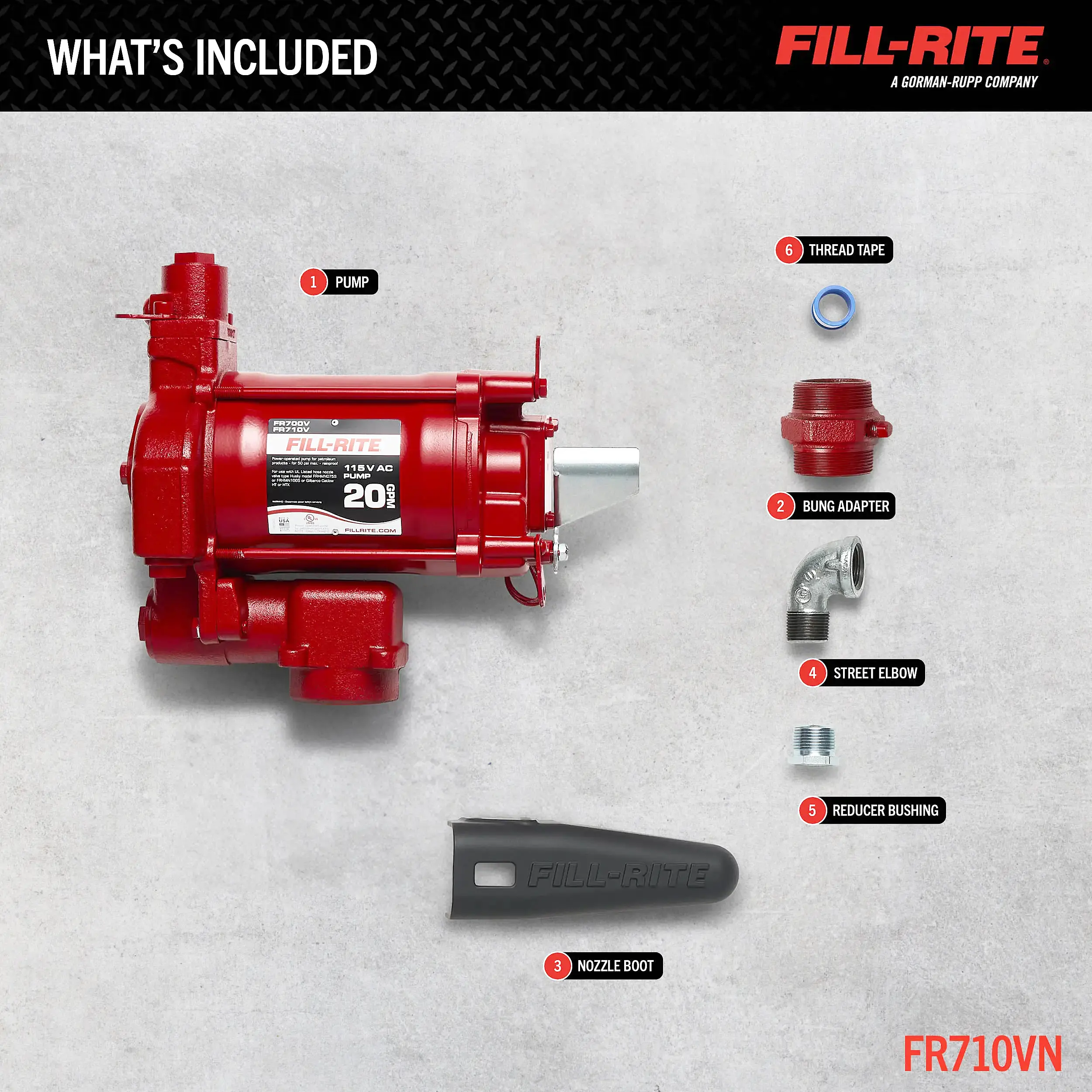

Installation is straightforward thanks to the included mounting components. Powered by a standard 115V AC supply, it is easy to integrate into existing fueling systems. When you need a rugged, long-lasting fuel transfer pump, the FR710VN delivers day after day.

Features & Specifications

• Heavy-duty cast-iron construction for unmatched durability
• Rotary vane technology delivers consistent 20 GPM performance
• Powered by 115V AC motor for stationary tank applications
• Thermally protected motor prevents overheating for longer life
• Built-in mesh strainer safeguards equipment by filtering particulates
• Handles multiple fluids: diesel, gasoline (E15), kerosene, biodiesel (B20), and solvents
• Inlet: 1.25″ NPT (female)
• Outlet: 1″ NPT (female)
• Mounting: 2″ NPT bung mount
• Duty cycle: 30 minutes on / 30 minutes off
• Motor power: 0.33 HP with 5.5 A max current
• Suction lift: 15 ft. / Dry vacuum: 12 in. Hg
• Discharge head: 53 ft. / Max discharge pressure: 23 PSI
• Strainer mesh: 40x40x.010″
• Viscosity range: 0.38 – 2.4 cSt

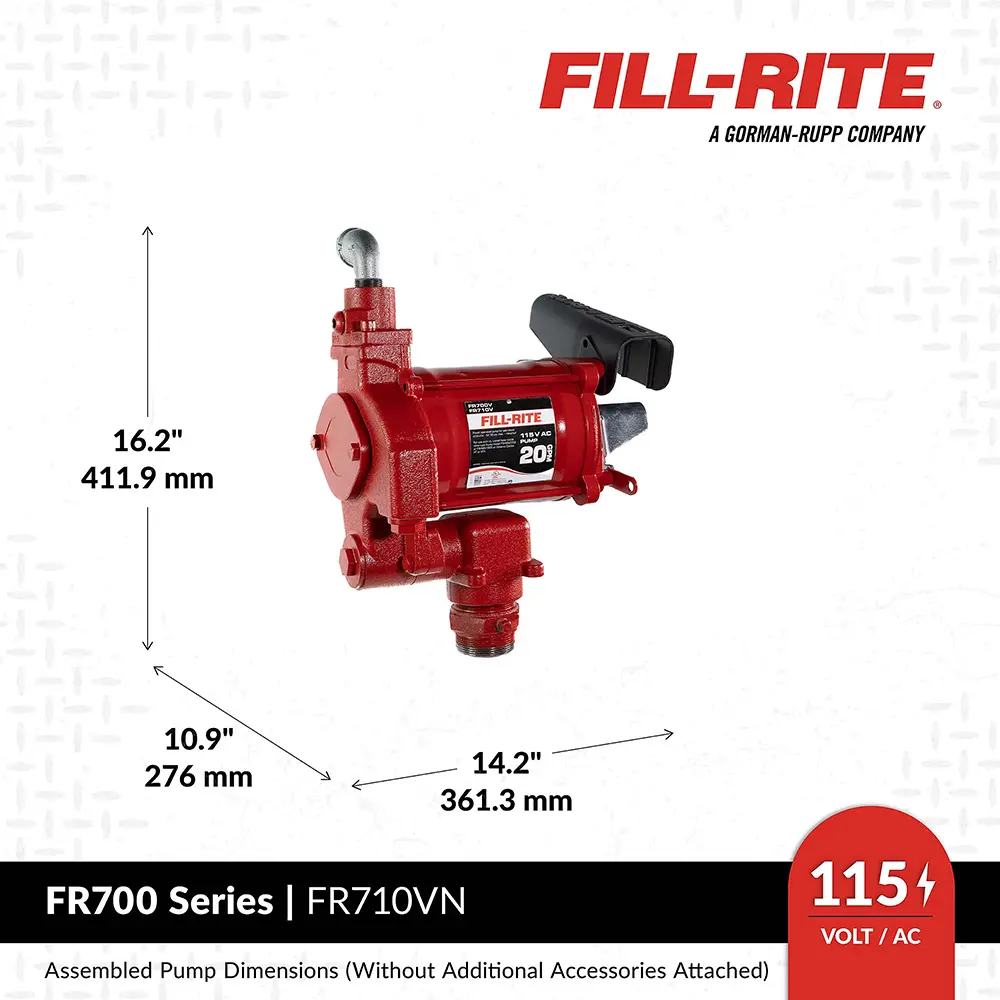

• Dimensions: 17.3″ H x 14.2″ W x 11.3″ D
• Weight: 44 lbs. (shipping weight: 51.8 lbs.)
• Manufacturer Part Number: FR710VN
