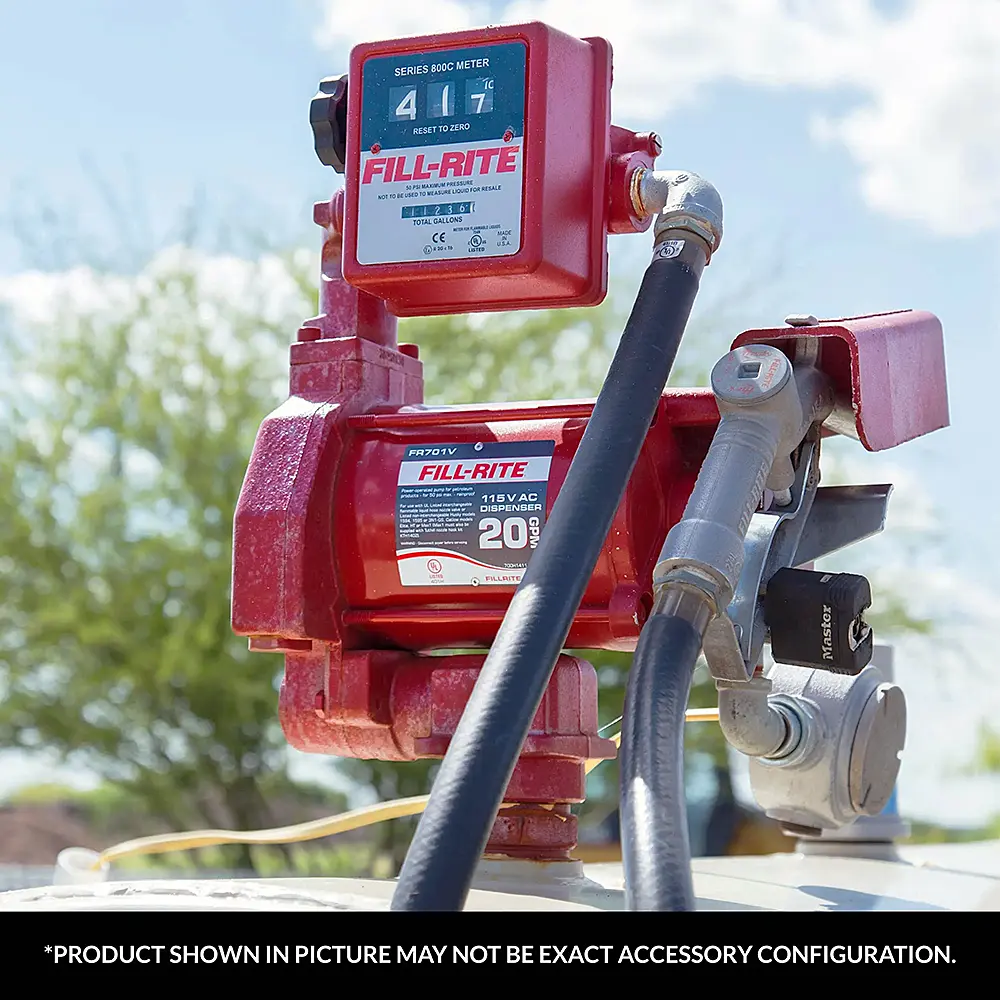

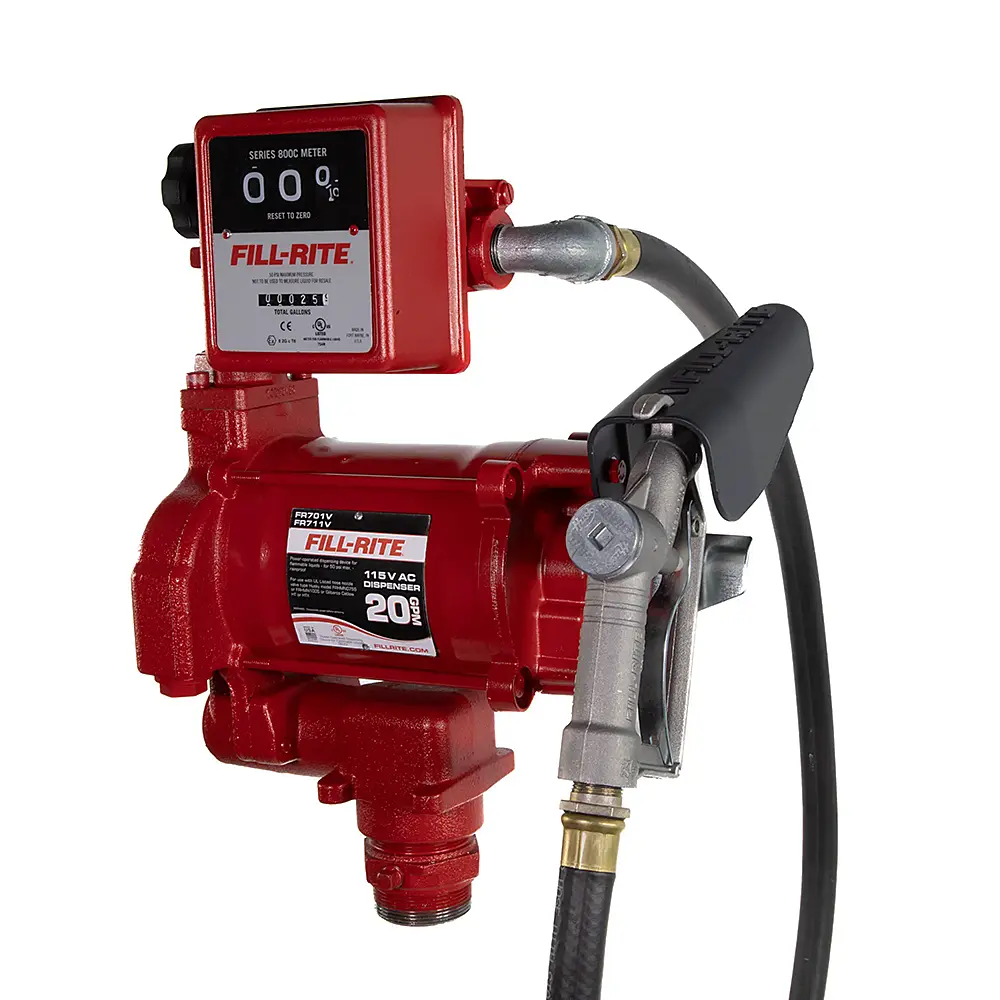

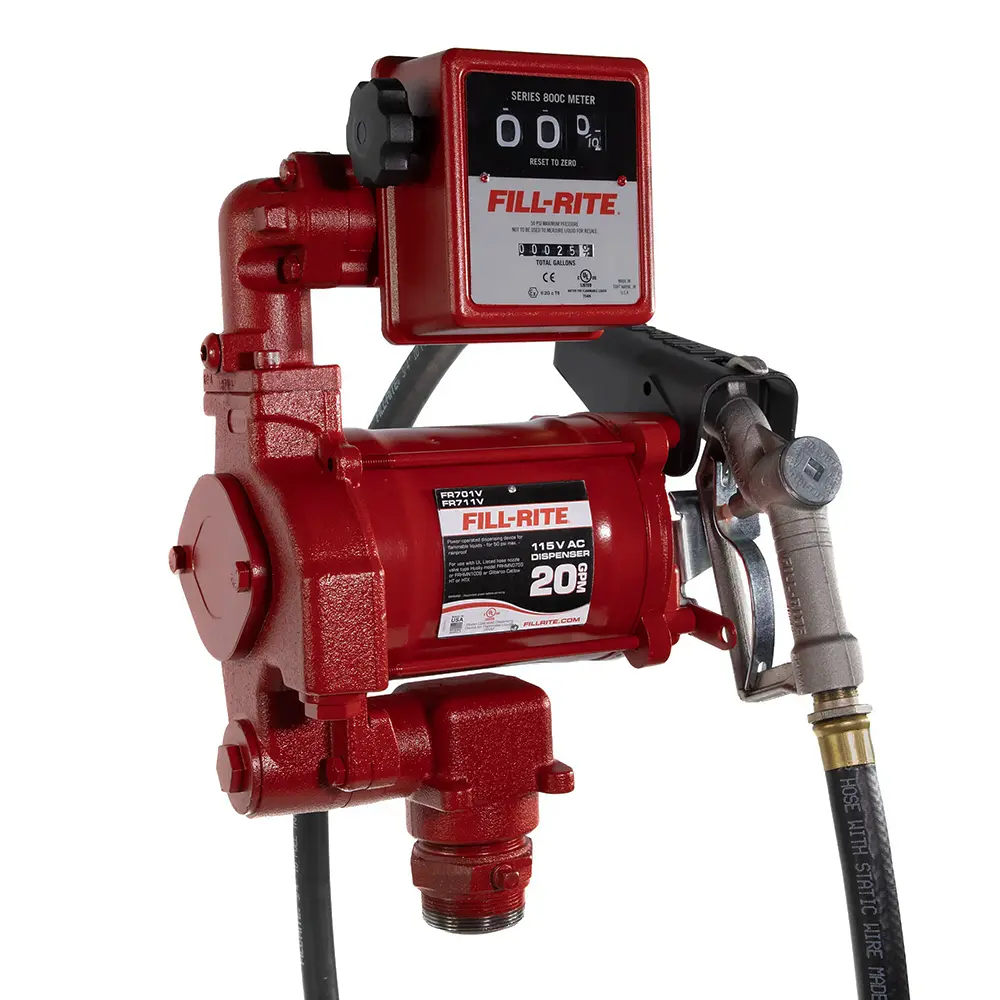

Fill-Rite FR701V Fuel Transfer Pump with Meter & Nozzle

The Fill-Rite FR701V 115V Fuel Transfer Pump is built to provide long-lasting performance in the toughest conditions. Featuring heavy-duty cast-iron construction, this pump withstands harsh environments while maintaining consistent output. Its rotary vane technology ensures smooth, reliable fueling with day-one performance that lasts for years. Equipped with a thermal-protected motor, the FR701V prevents overheating, giving technicians confidence in its long service life.

Designed for efficiency, this 115V fuel transfer pump delivers 20 gallons per minute, making it ideal for filling equipment with tanks sized between 20 and 80 gallons. The included mechanical meter provides precise measurements, while the cast aluminum nozzle and UL-listed hose add safety and durability. Additionally, a built-in mesh strainer safeguards your equipment by filtering out harmful particulates. From diesel to gasoline blends, the FR701V is compatible with a wide range of fuels.

Perfect for stationary tank installations, this pump mounts easily with its 2-inch NPT bung and operates on standard 115V AC power. Its self-priming capability, 15-foot suction lift, and rugged design make fueling operations fast and hassle-free. Whether you’re running a farm, fleet, or service shop, the FR701V offers unmatched reliability. This model combines high flow, precision, and protection—exactly what professionals expect from Fill-Rite.

Features & Specifications

• Heavy-duty cast-iron construction for durability
• Delivers 20 GPM / 75 LPM fuel transfer rate
• 115V AC motor with thermal overload protection
• Rotary vane technology maintains consistent performance
• Compatible with diesel, kerosene, biodiesel (B20), gasoline (E15)
• Self-priming with 15 ft. suction lift
• Built-in mesh strainer for equipment protection

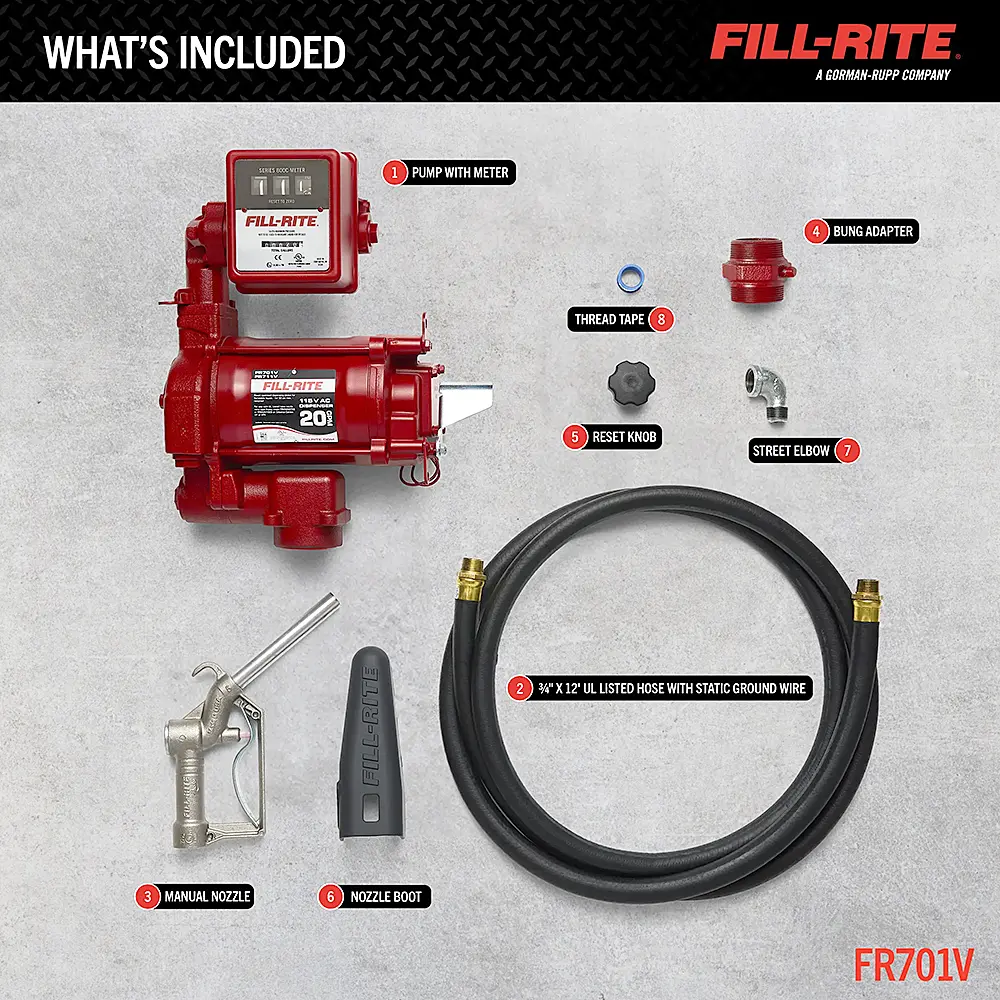

• Includes ¾” x 12’ UL-listed hose with static ground wire
• ¾” cast aluminum manual nozzle for safe fueling
• 807C mechanical meter for accurate measurement
• 2” NPT bung mount for stationary tanks

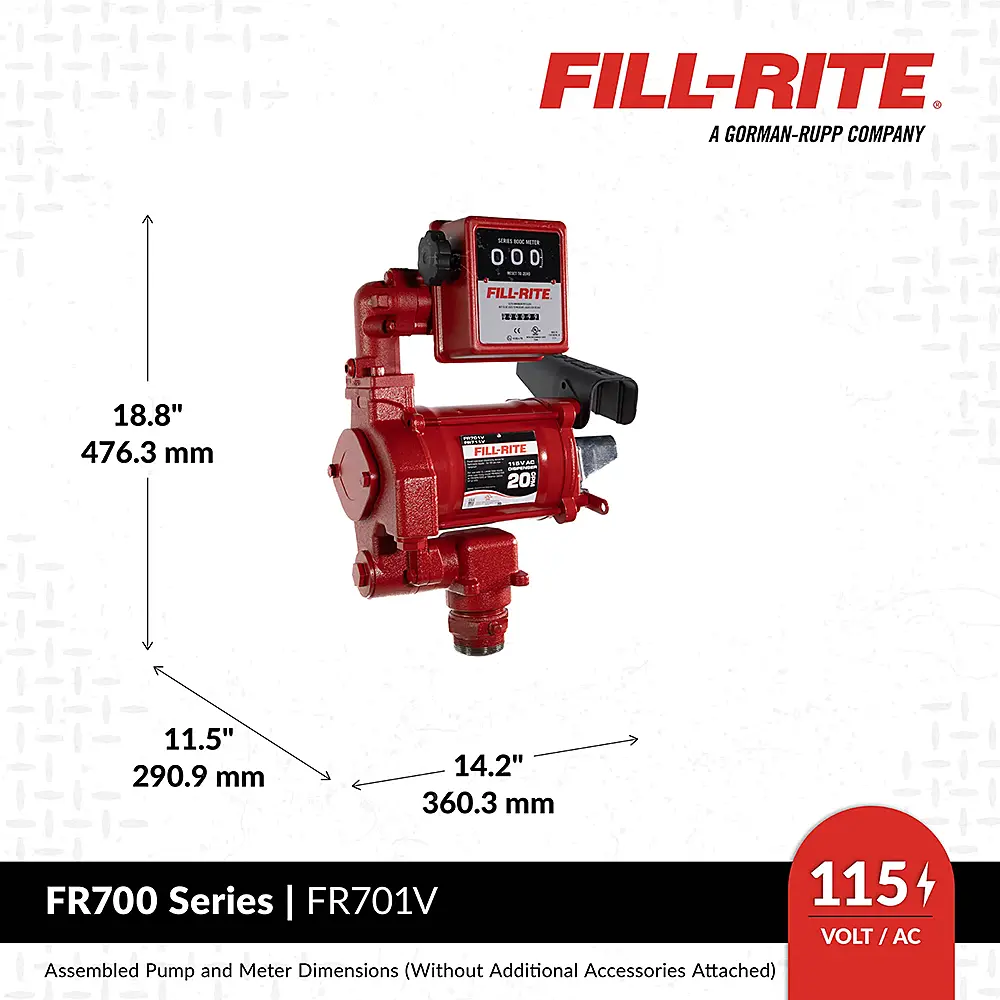

• Assembled dimensions: 19” H x 14.2” W x 11.9” D
• Assembled weight: 54.3 lbs
• Manufacturer Part Number: FR701V
