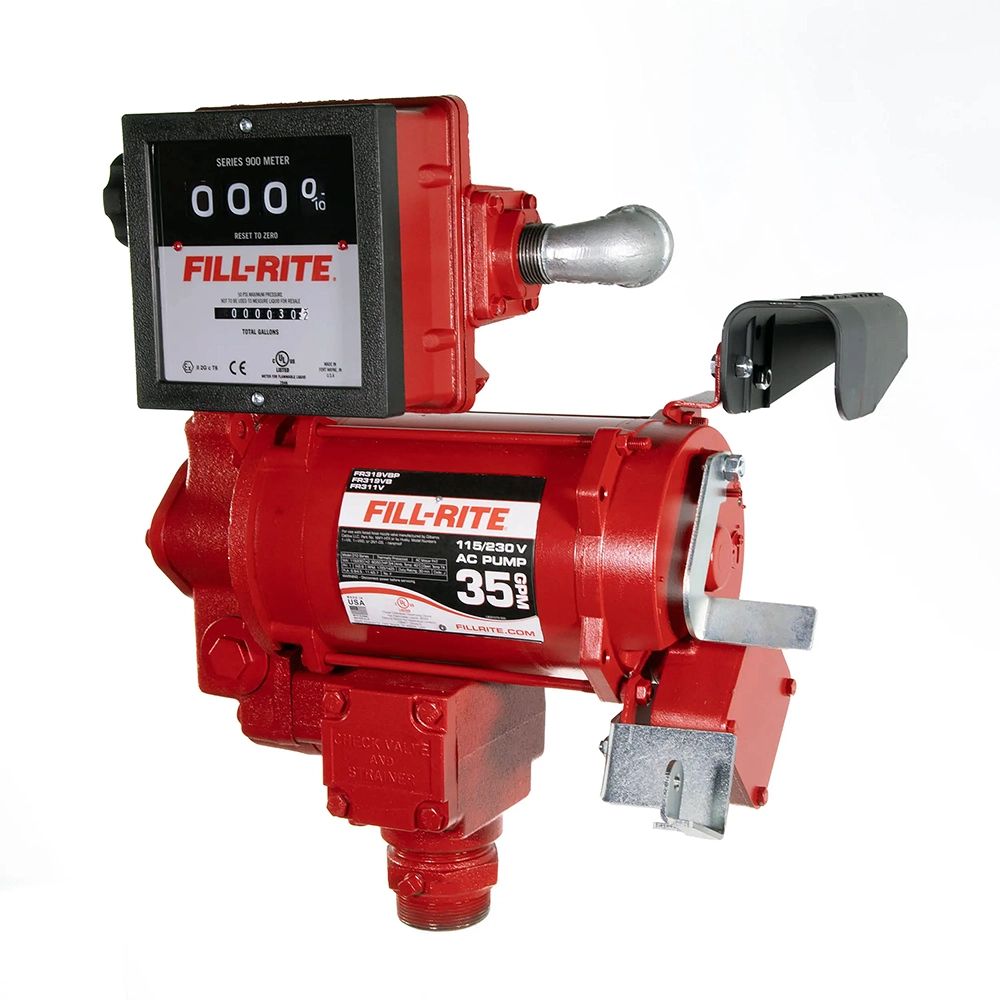

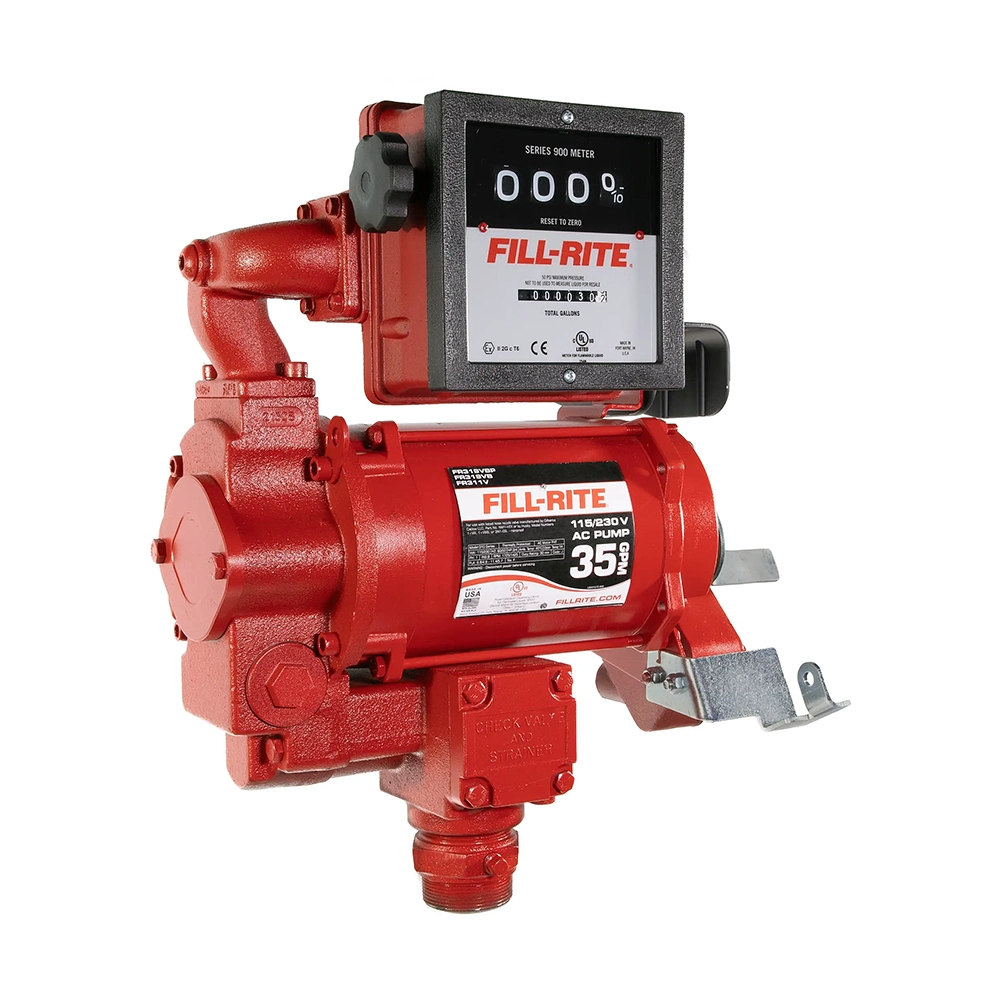

Fill-Rite FR311VN 35 GPM AC Fuel Transfer Pump

The Fill-Rite FR311VN 35 GPM AC Fuel Transfer Pump is designed for technicians and businesses requiring robust fuel transfer solutions. Built with heavy-duty cast-iron construction, it withstands harsh conditions at job sites or remote locations. Its rotary vane technology ensures consistent, reliable fuel flow.

This model features a dual voltage 115/230V AC motor with enhanced thermal protection, allowing longer operation without overheating. Like the FR310VN, it installs easily on stationary tanks via a 2-inch bung mount. The FR311VN handles diesel, kerosene, mineral spirits, Stoddard solvents, heptane, and biodiesel blends up to B20. A built-in mesh strainer protects your equipment by filtering particulates in fuel.

Compared to the FR310VN, the FR311VN supports longer duty cycles, making it ideal for extended fueling operations. With a 35 GPM flow rate, 60-foot discharge head, and 18-foot suction lift, it efficiently fills tanks sized 35–140+ gallons.

Features & Specifications

• Heavy-duty cast-iron construction for long-lasting durability
• Rotary vane technology delivers 35 gallons per minute
• Dual voltage 115/230V AC motor with enhanced thermal protection
• 2-inch bung mount for stationary tank installation
• Compatible with diesel, kerosene, mineral spirits, heptane, and B20 biodiesel
• Built-in mesh strainer filters particulates to protect equipment
• Supports longer duty cycles compared to FR310VN
• Discharge head: 60 ft | Suction lift: 18 ft
• Strainer mesh size: 40x40x0.008”
• Max discharge pressure: 26 PSI
• Duty cycle: 45 min on / 15 min off
• Manufacturer part number: FR311VN
• Cross Reference: See FR310VN for standard duty application
