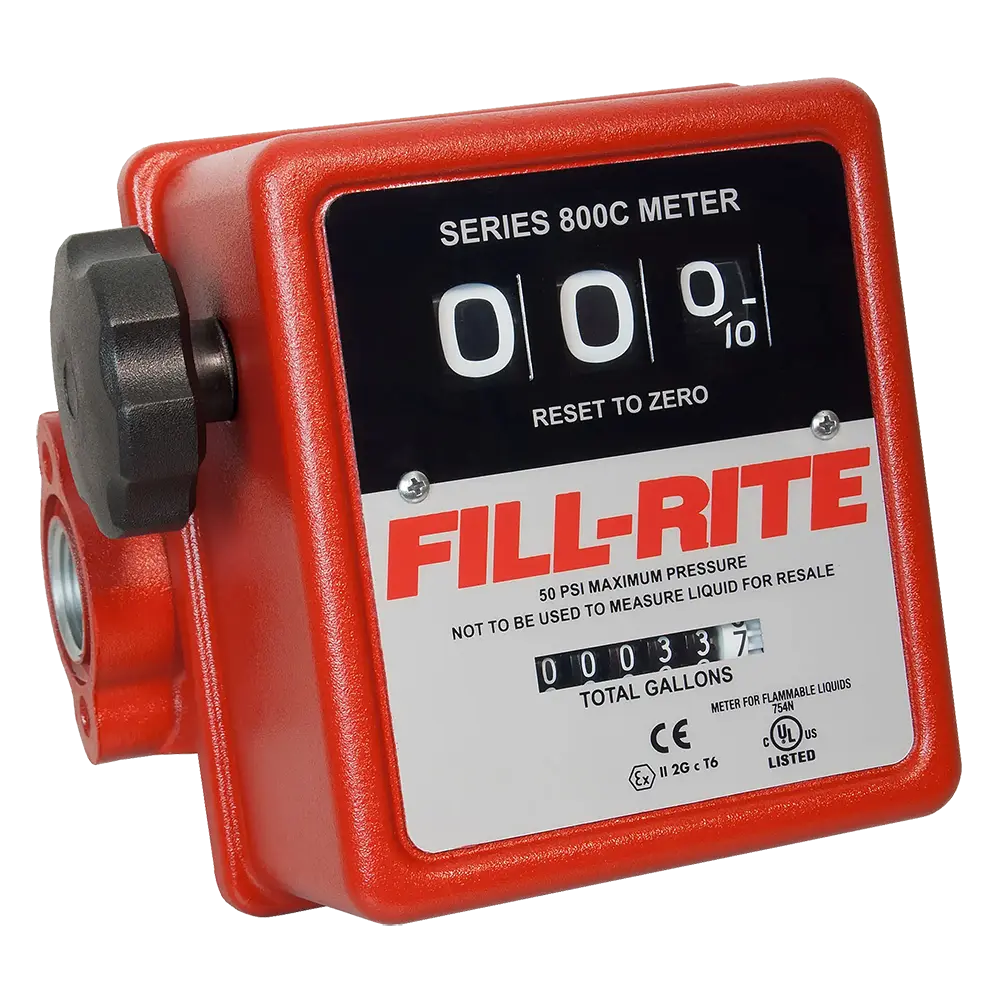

Fill-Rite 807C 3-Digit Mechanical Fuel Transfer Meter

The Fill-Rite 807C 3-digit mechanical fuel transfer meter is built for precision and long-term reliability. Designed for low-volume fueling, it delivers flow rates from 5 to 20 GPM with +/- 1% accuracy. This ensures dependable record-keeping for technicians and businesses that require consistency in fuel tracking.

Engineered with nutating disc technology, the 807C resists jamming from rust or debris that often damages lesser meters. Its cast-aluminum body provides rugged strength, making it ideal for demanding environments where durability and corrosion resistance are essential. With a 5-digit non-resettable counter, this meter also tracks lifetime totals for ongoing monitoring.

Additionally, the 807C is compatible with common fuels including diesel, gasoline, kerosene, biodiesel blends, and mineral spirits. It handles operating temperatures from -15°F to 150°F and pressures up to 50 PSI, making it versatile for daily use. Whether fueling small equipment or managing maintenance tasks, this meter provides the accuracy and reliability technicians can trust.

Features & Specifications

• Flow rate range: 5–20 GPM
• Nutating disc technology prevents jamming from rust or debris
• Durable cast-aluminum construction for corrosion resistance
• Accuracy: +/- 1% with 0.38% repeatability
• 3-digit counter displays up to 99.9 gallons per batch
• 5-digit non-resettable counter tracks lifetime totals
• Compatible with diesel, gasoline, kerosene, biodiesel blends up to B20, mineral spirits, heptane, hexane
• Operating temperature: -15°F to 150°F (-26°C to 66°C)
• Maximum operating pressure: 50 PSI
• Inlet/outlet size: 0.75″ NPT female threads
• Display type: mechanical, 3-digit

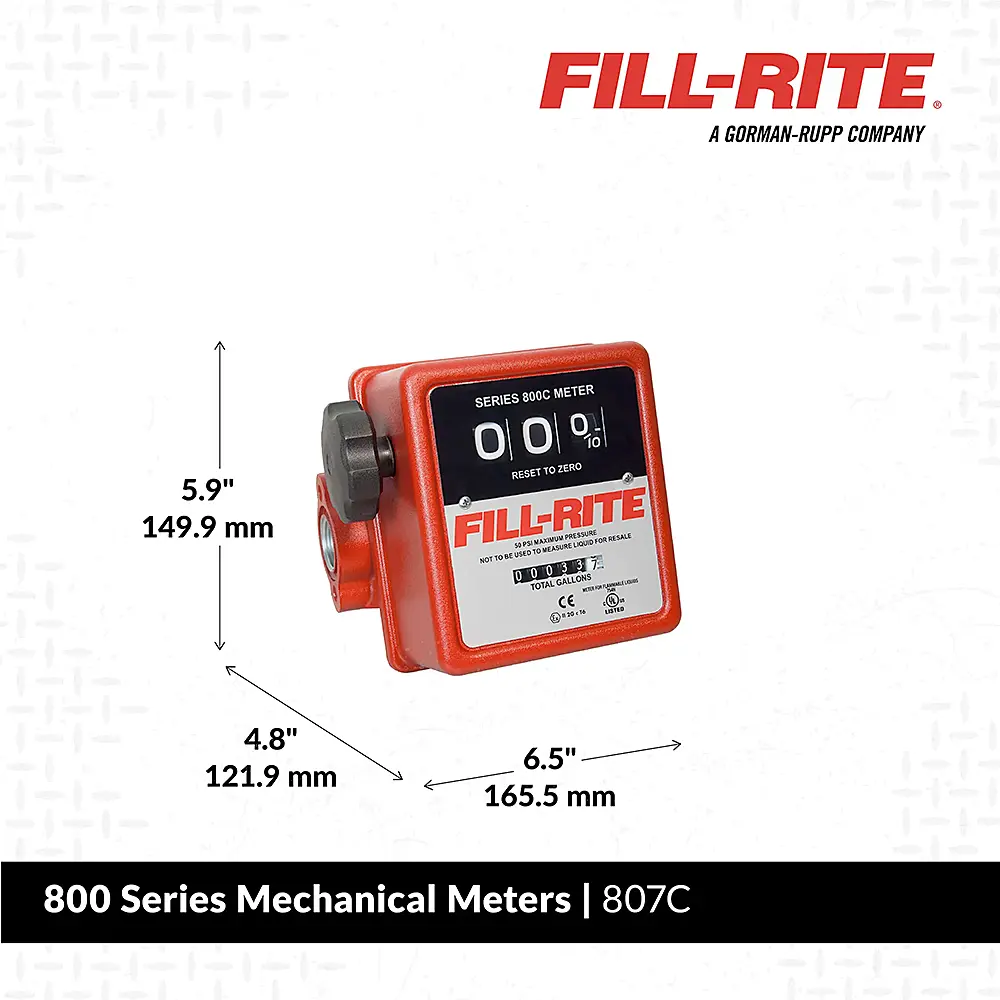

• Assembled dimensions: 5.9″ H x 6.9″ W x 4.9″ D
• Assembled weight: 4.3 lbs
• Package dimensions: 7.38″ H x 7.25″ W x 10.5″ D
• Gross weight: 5 lbs
• Manufacturer Part Number: 807C
