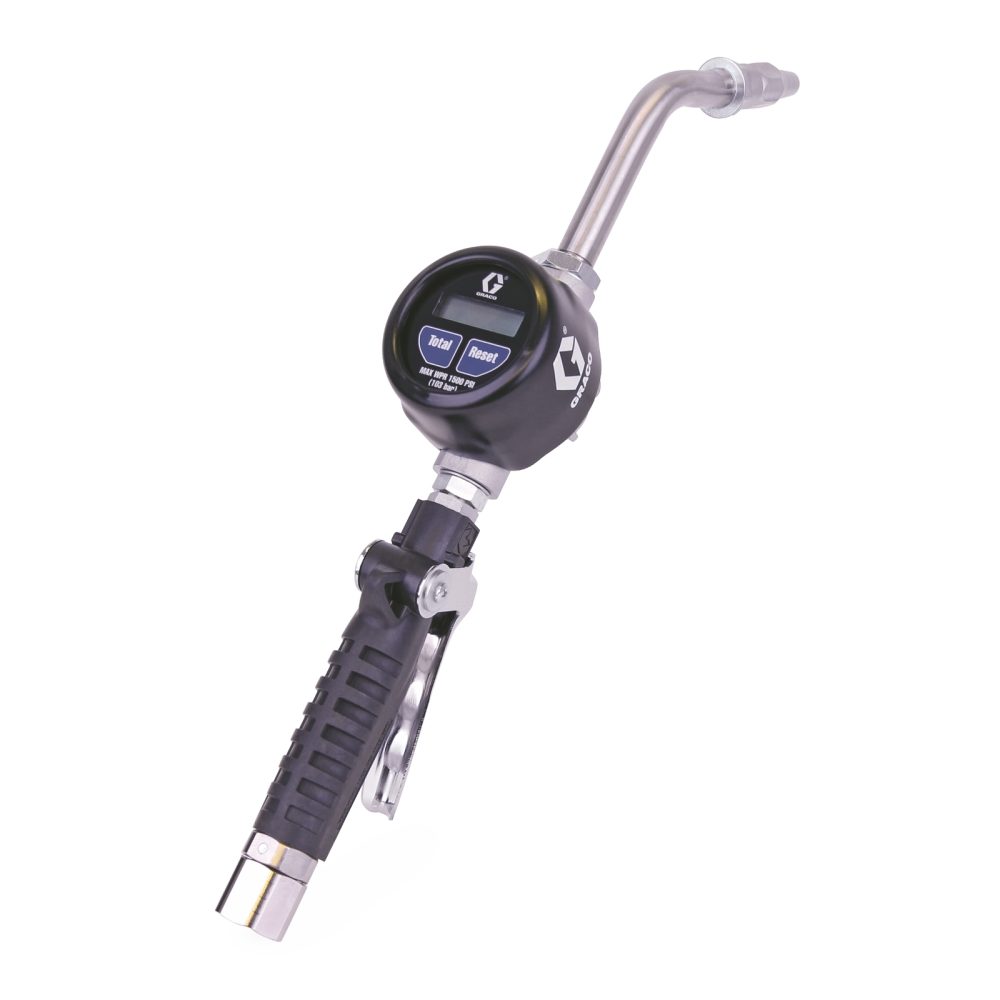

Graco 25C903 EM Series EM8 Electronic Metered Dispense Valve Manual Oil/Antifreeze Meter

The Graco EM Series EM8 Electronic Metered Dispense Valve offers precision, durability, and ease of use for fluid dispensing applications. Designed for a range of environments—from small service centers to demanding industrial shops—this handheld meter delivers accurate, high-flow fluid control. Its rugged build and IP69K-rated electronics ensure performance in harsh conditions, while the easy-to-read LCD provides fluid measurements in quarts, gallons, pints, and liters.

Thanks to upgraded electronics, the EM8 model boasts long battery life, a twist-close manual nozzle, and an anti-leak locking trigger. It supports petroleum-based and synthetic oils, as well as antifreeze. Whether mounted in-line or handheld, this meter delivers consistent accuracy at up to 8 GPM (30.3 LPM), making it an essential tool for professional fluid handling.
Features and Specifications:

• Model: Graco EM8
• Series: EM Series
• Type: Electronic Metered Dispense Valve
• Maximum Flow Rate: 8 GPM (30.3 LPM)
• Minimum Flow Rate: 0.25 GPM (0.95 LPM)
• Meter Accuracy: ±0.5%
• Maximum Working Pressure: 1500 PSI / 102 BAR / 10.2 MPA
• Trigger Protection: Lock-off button with locking handle
• Display: Electronic LCD (measures in quart, pint, gallon, liter)
• Power Supply: AAA batteries (long battery life)
• Inlet Size: 1/2 in (12.7 mm) NPT Female
• Outlet Size: 3/4 in (19.05 mm) ORB Female
• Extension Type: Rigid
• Nozzle Type: Manual twist-close
• Meter Technology: Oval Gear
• IP Rating: IP69K (dust and pressure-wash resistant)
• Operating Temp Range: -22°F to 180°F (-30°C to 82°C)
• Wetted Materials: Aluminum, Stainless Steel, Carbon Steel, Acetal, Nitrile Rubber, Geolast®
• Weight: 3 lb (1.36 kg)
• MPN: 25C903
• Recommended Use: Petroleum & synthetic oils, antifreeze
