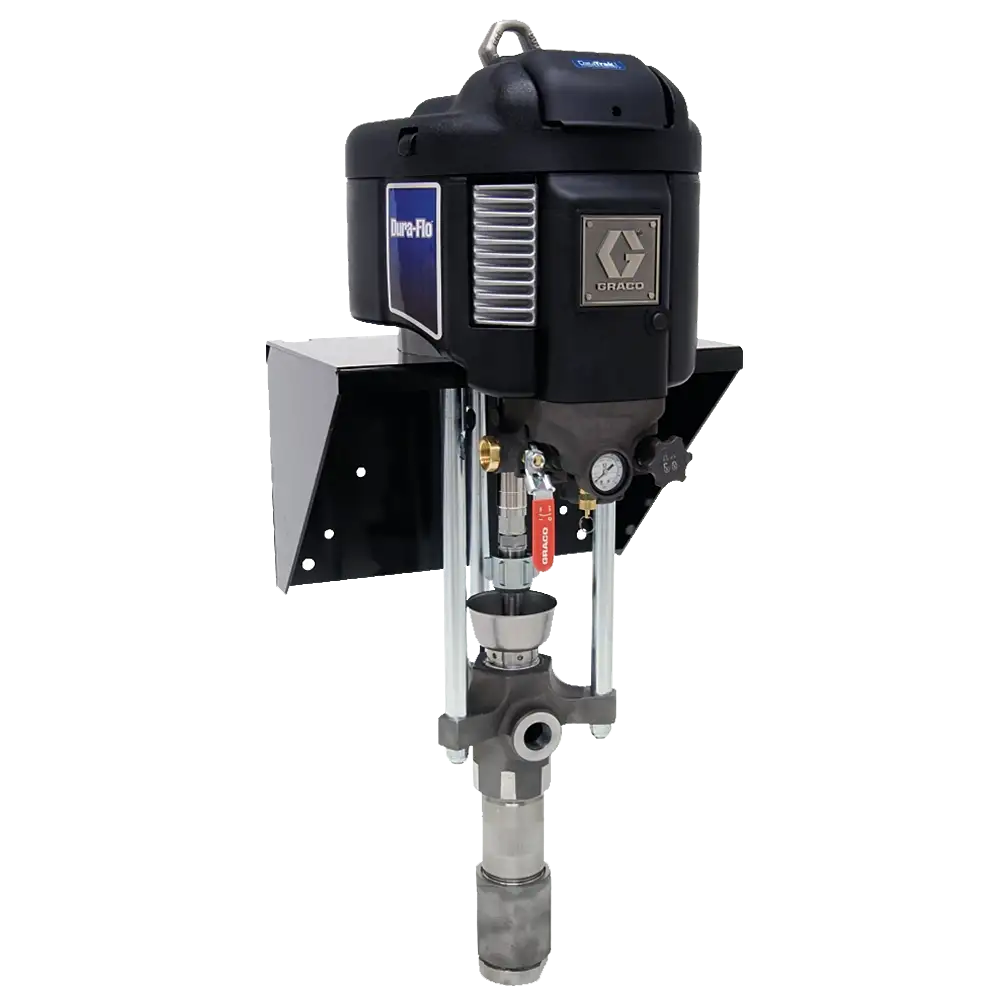

Graco NXT™ Dura-Flo® 23:1 Wall Mount Pump Package with DataTrak – Part 247895

The Graco NXT™ Dura-Flo® 23:1 Wall Mount Pump Package (Part 247895) stands at the top of Graco’s Dura-Flo line, combining power, precision, and intelligent control. This pneumatic pump system provides a 23:1 pressure ratio and includes Graco’s DataTrak™ Control System for real-time diagnostics, material usage monitoring, and pump runaway protection — a feature not found in earlier models like the 24D605.

Designed for industrial oil transfer and lubricant applications, the 247895 operates at up to 1,725 psi (119 bar), offering significantly greater output pressure than the 12:1 24D605, which reaches 1,190 psi. This allows operators to handle higher-viscosity materials more efficiently, improving throughput in high-demand environments.

Compared to the stainless-steel 247983, the 247895 uses carbon steel and leather wetted components, balancing strength and cost-effectiveness for non-corrosive fluids. It’s an ideal solution when corrosion resistance isn’t critical but reliability and longevity are essential.

The NXT Air Motor and modular air valve system ensure smooth operation with minimal stalling. Maintenance is simplified thanks to the modular construction and reduced number of parts. Integrated air controls, including a front-mounted lockable regulator, provide easy adjustments during operation. The package includes a Thermal Relief Kit, mounting bracket, air motor, and hoses, making setup fast and efficient.

Engineered to outperform and outlast, the Graco Dura-Flo NXT pump series delivers proven durability and consistent results for industrial professionals who demand quality and performance.

Features & Specifications

• 23:1 ratio pneumatic wall-mount pump package
• Includes DataTrak™ Control for diagnostics and material tracking
• Comes with Thermal Relief Kit, mounting bracket, and hoses
• Carbon steel and leather wetted components for durability
• Maximum working pressure: 1,725 psi (119 bar)
• Maximum flow rate: 9.2 gpm @ 60 cpm
• Air inlet size: 0.75 in (female NPT)
• Fluid inlet size: 2 in (female NPT)
• Fluid outlet size: 1.5 in (male NPT)
• NXT Air Motor with anti-stall and de-icing features
• Front-mounted, lockable air regulator with integrated filtration
• Country of Origin: USA
• UPC: 633955057586
• Manufacturer Part Number: 247895
