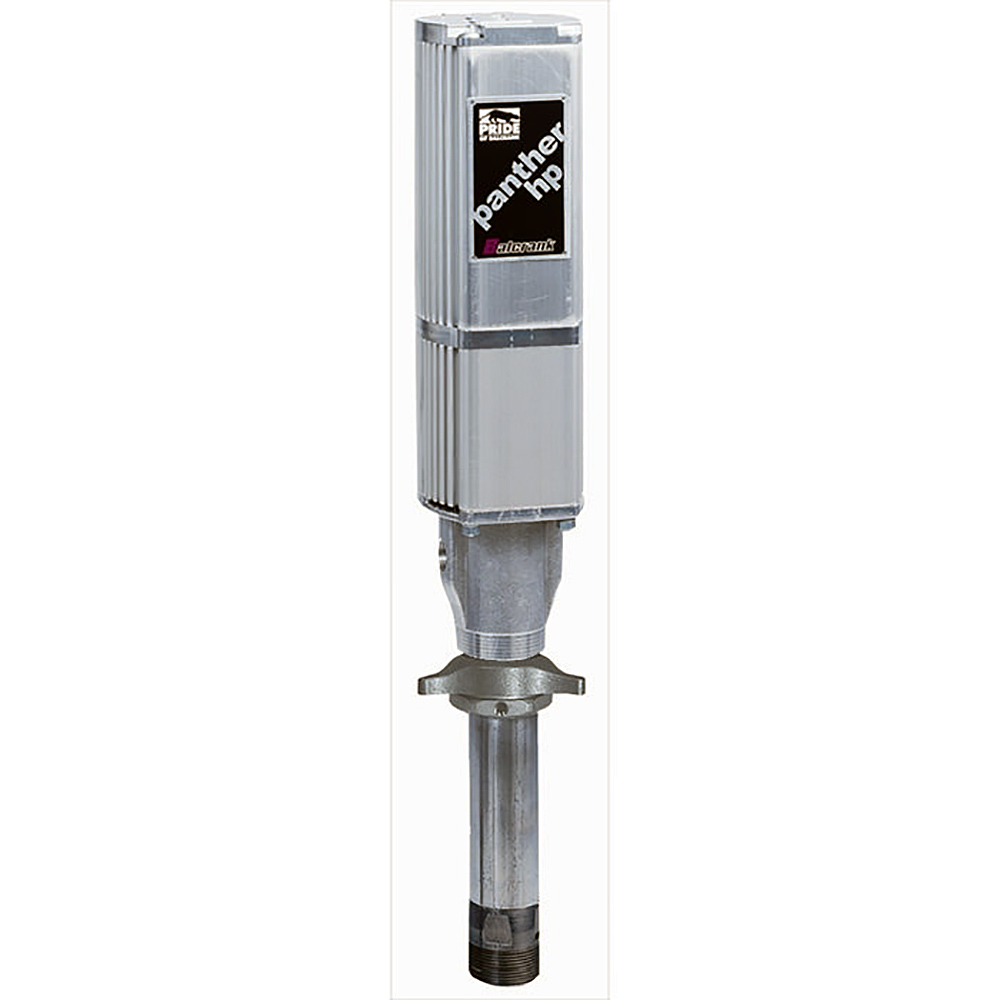

Balcrank Pride Panther HP 5:1 Pump – 1130-021
$712.29
Engineered for long-distance and high-pressure oil dispensing, the Panther HP 5:1 Pump delivers powerful performance in harsh environments. Ideal for medium-volume shops and automotive businesses.
| Weight | 32 lbs |
|---|---|
| Dimensions | 12 × 10 × 36 in |
| Product Condition | |
| Product Availability |
The Balcrank Pride Panther HP 5:1 Pump – 1130-021 is built for durability and dependable performance in demanding shop environments. Designed with a mechanical air valve and piston assembly, this pump tolerates contaminated air better than comparable systems. It delivers steady fluid output with minimal maintenance—ideal for automotive, maintenance, and industrial operations.
This 5:1 ratio pump is optimized for medium-pressure applications and longer pumping distances. While it produces lower volume than the 3:1 version, it maintains strong overall flow rates of up to 4 GPM. Use it confidently with various lubricants including synthetic, mineral-based oils, hydraulic fluid, and transmission fluids. Most importantly, it includes a built-in pressure relief valve to protect against thermal expansion-related pressure spikes.
Features & Specifications
- Mechanical air valve design tolerates contaminated air
- Ideal for dispensing lubricating oils up to SAE 90
- 5:1 ratio for longer pumping distances with moderate volume
- Flow rate: Up to 4 GPM
- Maximum fluid stall pressure: 760 PSI
- Air pressure operating range: 10–150 PSI
- Air consumption: 24.80 SCFM @ 100 PSI
- Cycles per gallon: 57
- Air inlet: 1/4” NPT (F)
- Fluid inlet: 1” NPT (F), 1 1/2” NPT (M)
- Fluid outlet: 1/2” NPT (F)
- Wetted materials: Steel, Stainless Steel, Aluminum, Ultrathane, Buna-N™, Nylon
- Includes pressure relief valve for safety
- Do not use with flammable fluids
- Manufacturer Part Number: 1130-021
