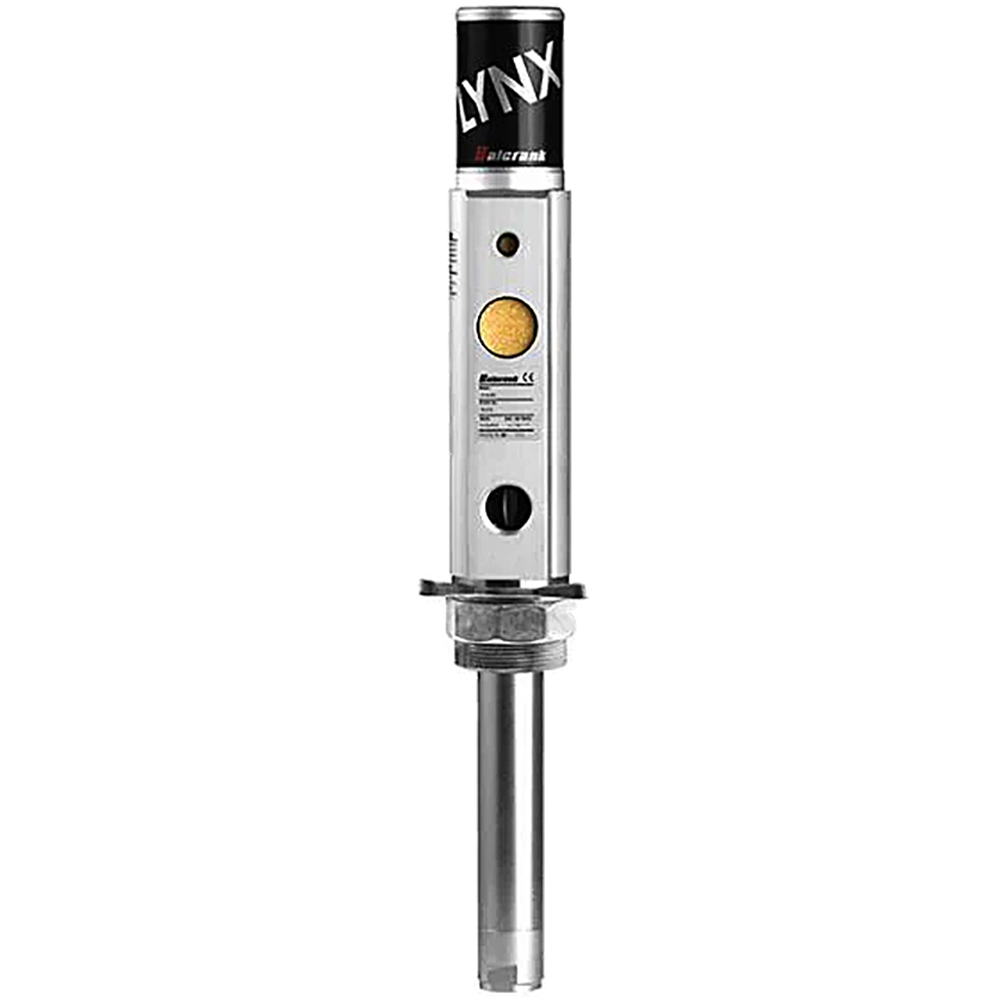

Balcrank LYNX 3:1 Lubricant Transfer Pump – Part #1110-007

The Balcrank LYNX 3:1 pump is designed for technicians needing efficient, low-volume dispensing of lubricants and hydraulic fluids. It’s the perfect match for roll-around drum kits and smaller tank setups. With a 3:1 ratio, it delivers steady pressure while minimizing air consumption. This pump is ideal for synthetic and mineral-based oils, transmission fluids, and hydraulic fluids. It performs best in oil bar supply systems and short-distance fluid transfers. Compared to the 1:1 models like 1110-009 and 1110-010, the 3:1 version offers increased pressure—making it ideal for slightly longer runs or restricted outlet flow conditions.

Built for durability, the Balcrank LYNX 3:1 pump features wetted parts made from steel, brass, aluminum, and polyurethane. It operates smoothly between 45–150 PSI and provides up to 6.6 gallons per minute at peak performance. Always use a pressure relief valve (part #3120-086) to avoid system damage from fluid expansion.

Features & Specifications

• 3:1 ratio pump ideal for low-volume dispensing
• Designed for synthetic and mineral-based lubricants
• Supports hydraulic and transmission fluid applications
• Perfect for roll-around drum units and small tank packages
• Flow rate: 6.6 gal/min (25 l/min) at 150 PSI
• Operating air pressure: 45–150 PSI (3–10 bar)
• Air inlet: 1/4″ NPT (F)
• Fluid outlet: 3/4″ NPT (F)
• Fluid inlet: 3/4″ NPT (F)
• Air piston diameter: 1 1/4” (32 mm)
• Wetted materials: Buna-N™, Steel, Brass, Aluminum, Polyurethane
• Use pressure relief kit 3120-086 (sold separately)
• Do not use with flammable fluids
• Manufacturer Part Number: 1110-007
