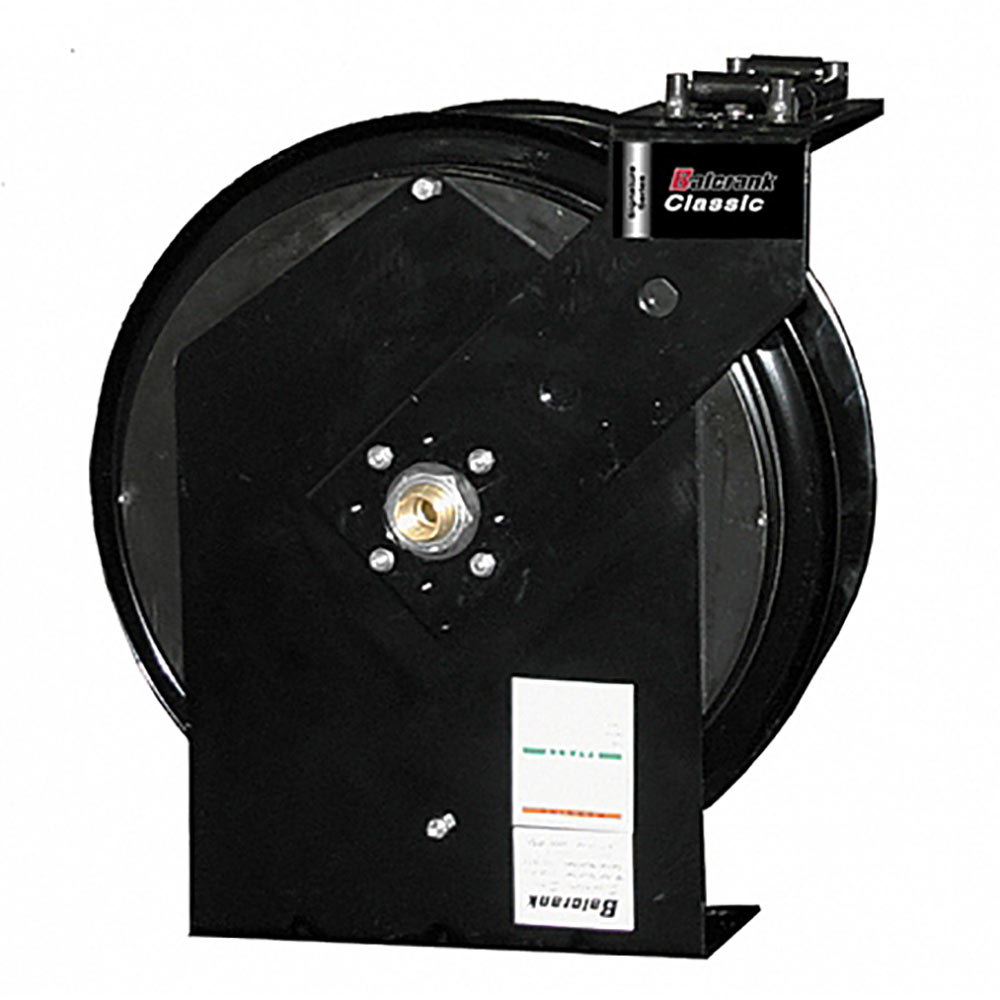

Balcrank 2120-004 High Pressure Grease Hose Reel, 40′ x 3/8″
$665.82
Get the job done efficiently with the Balcrank 2120-004 grease reel. Designed for high-pressure applications, it delivers reliable 4000 PSI grease flow through a 40-foot hose. Built tough for service bays and garages, it mounts easily and performs flawlessly.
| Weight | 37 lbs |
|---|---|
| Dimensions | 16 × 6 × 17.5 in |
| Product Availability |
The Balcrank 2120-004 High Pressure Grease Hose Reel delivers exceptional performance and long-term reliability. This model includes a 40-foot hose with a 3/8-inch inner diameter, built to handle 4000 PSI of grease pressure. It’s ideal for auto dealerships, fleet maintenance, and industrial workshops.
This high pressure grease reel is constructed from heavy-gauge steel and offers a compact design for tight installations. It features an eight-position die-cast latching mechanism and a wide hose outlet with guide rollers for smooth operation. Additionally, a multi-position outlet arm allows wall, ceiling, or tank-top mounting.
The unit includes a 2.5-foot inlet hose and a ball stop, making setup simple. Furthermore, its LED-ready light port and on-site tension adjustment add convenience. With wetted components made of plated steel, hardened steel, and polyethylene, this reel offers superior corrosion resistance and compatibility with grease systems.
Features & Specifications
- 40-foot x 3/8″ hose for high-pressure grease delivery (4000 PSI)
- All-steel heavy-duty construction
- Compact design with space-saving bracket
- Multi-position outlet arm for wall, ceiling, or tank-top mounting
- Eight-position precision latching mechanism
- Wide hose outlet with roller guides for smooth retraction
- LED light port ready for enhanced visibility
- Easy on-site tension adjustments
- Includes 2.5-foot inlet connecting hose and hose stop
- Fluid Inlet Port: 3/8″ NPT (F) swivel
- Fluid Outlet Port: 3/8″ NPT (F) swivel
- Outlet Thread: 1/4″ NPT (M) for 3/8″ ID hoses
- Wetted Materials: Plated steel, hardened steel, Polyethylene
- Manufacturer Part Number: 2120-004 (40′ Hose), 2120-003 (30′ Hose), 2120-007 (50′ Hose)
