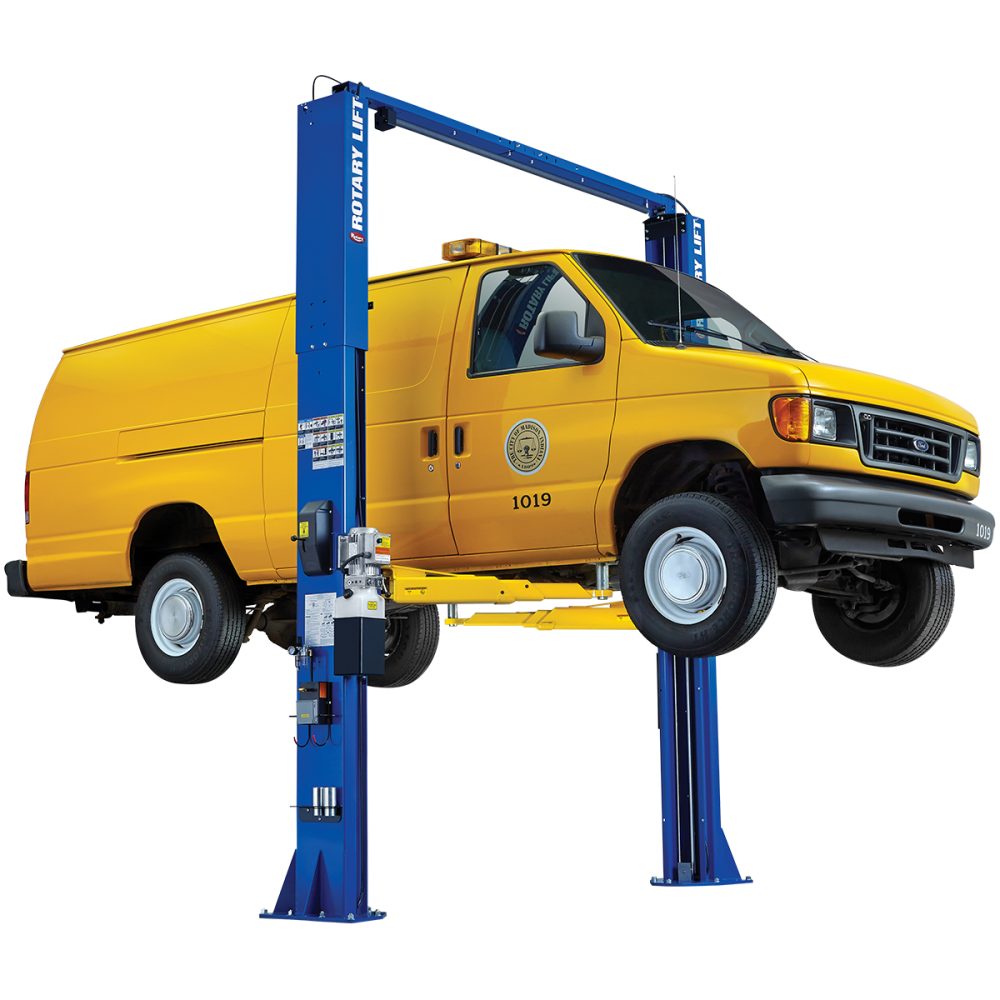

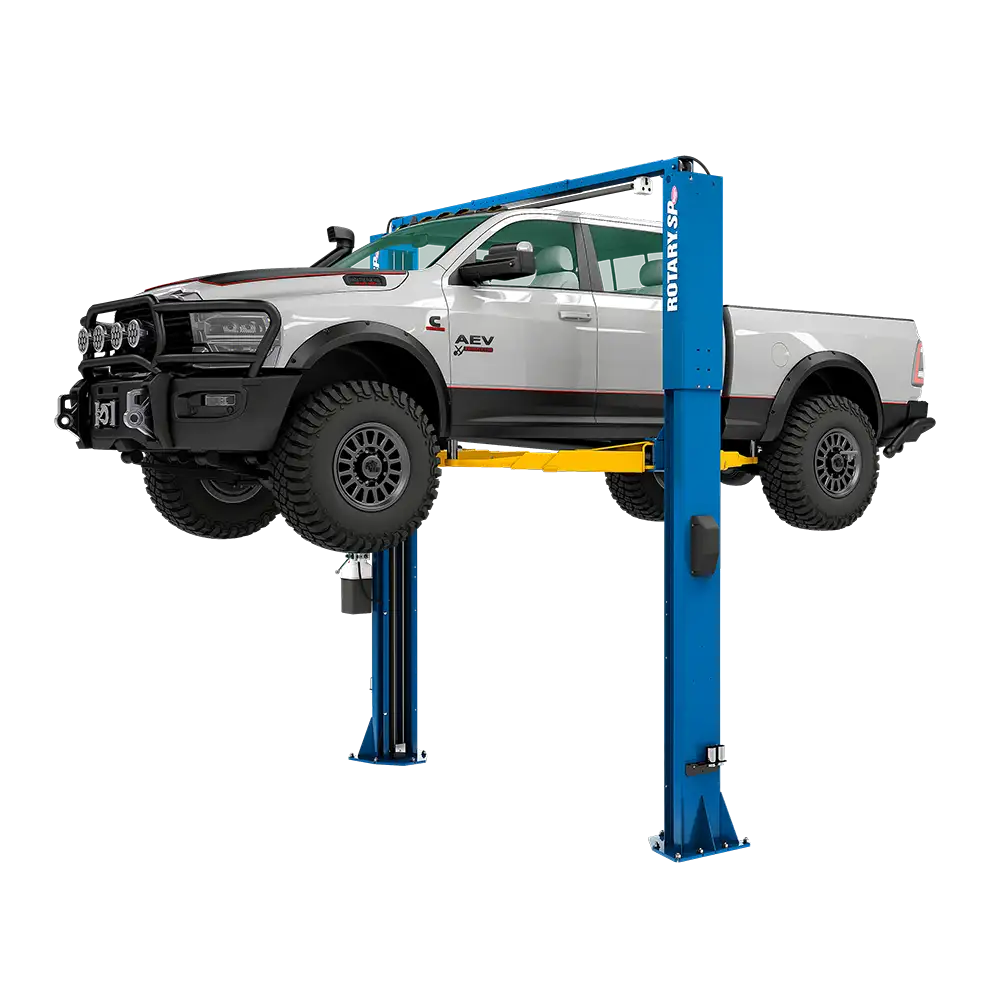

Rotary SPO12-AV 12,000 lb. All-Vehicle Two-Post Lift

The Rotary SPO12-AV 12,000 lb. two-post lift gives professional shops greater flexibility when servicing today’s larger vehicles. Its wider design provides additional drive-through clearance and a larger working footprint. As a result, technicians have more room to position vehicles and access the undercarriage during service.

The SPO12-AV uses Rotary’s proven Double S column design for demanding vehicle service applications. In addition, its low-profile AV arms provide added reach when positioning vehicles on the lift. The lift supports both framed and unibody vehicles with adjustable TA truck and RA round poly adapters. Four 3-1/2-inch and four 5-inch adapter extensions are also included, along with a storage rack. The lift provides more than 75 inches of rise for comfortable under-vehicle access. Depending on the adapter position, the supplied adapters provide a rise range from 75-3/4 to 78-1/8 inches. The standard configuration has an overall height of 13 feet 8 inches. However, the low-ceiling configuration reduces the overall height to 11 feet 8 inches.

For shops servicing taller cargo vans, the SPO12-AV offers five height options. These options can provide up to 3 feet of additional height. Standard height configurations range from 13 feet 8 inches to 16 feet 8 inches. Therefore, shops can select a configuration that better matches their building and vehicle requirements. The SPO12-AV also offers three standard width options for shops that need additional drive-through clearance. These configurations can provide up to 12 inches of additional width. For specialized installations, the optional FJ71037 wide overhead kit provides an even wider column stance. This configuration creates a 12-foot-10-5/8-inch column stance and uses the specified lower overhead setting.

The SPO12-AV is ALI Gold Certified and can be configured with optional SHOCKWAVE power. Productivity accessories are also available to help shops configure the lift around their specific service requirements. With its 12,000-pound capacity, wider footprint, extended reach, and flexible configurations, the SPO12-AV provides a versatile lifting solution for professional vehicle service facilities. SPO12AV-CUTSHEET-2025-12

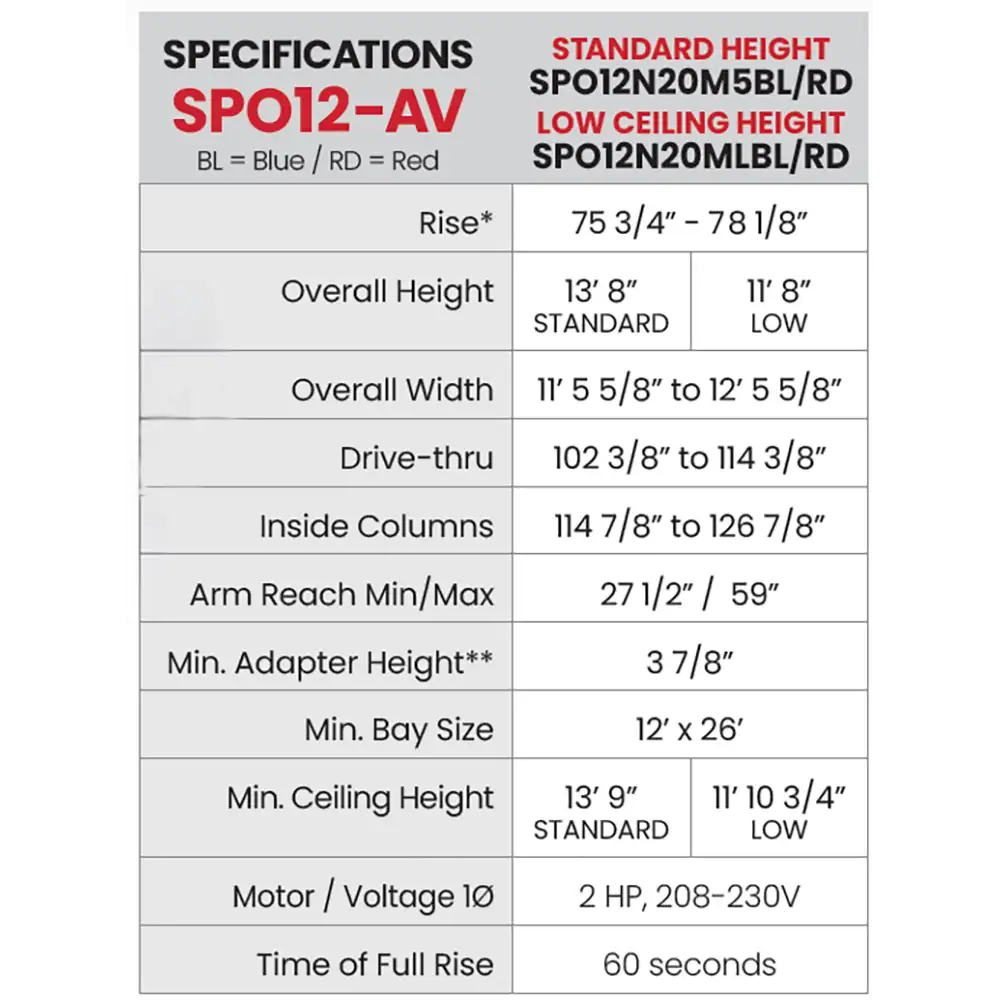

Key Features:

• Capacity: 12,000 lbs.
• Lift Type: Symmetric two-post vehicle lift
• Rise: 75 3/4″ – 78 1/8″, depending on adapter position
• Overall Height: 13′ 8″ standard or 11′ 8″ low-ceiling configuration
• Overall Width: 11′ 5 5/8″ to 12′ 5 5/8″
• Drive-Through Width: 102 3/8″ to 114 3/8″
• Inside Column Width: 114 7/8″ to 126 7/8″
• Arm Reach: 27 1/2″ minimum to 59″ maximum
• Minimum Adapter Height: 3 7/8″ with arm at full extension
• Minimum Bay Size: 12′ x 26′
• Minimum Ceiling Height: 13′ 9″ standard or 11′ 10 3/4″ low-ceiling
• Motor: 2 HP, single-phase
• Voltage: 208-230V
• Full Rise Time: 60 seconds
• Adapters: Adjustable TA truck and RA round poly adapters
• Adapter Extensions: Four 3 1/2″ and four 5″ extensions included
• Vehicle Compatibility: Designed for framed and unibody vehicles
• Height Options: Five configurations with up to 3′ of additional height
• Width Options: Three standard width configurations
• Power Options: Optional SHOCKWAVE power
• Certification: ALI Gold Certified
• Manufacturer Part Number: SPO12N20M5BL/RD standard height; SPO12N20MLBL/RD low-ceiling
